Application:1. Fast, easy replacement of broken shaft hangers.2. Sturdy and durable components for new and old greenhouses.3. Designed to fit most greenhouses, it can also be customized on demand.Benefits:• Less labor on repairs. No need to dismantle the shaft, our unique hangers are assembled around it - it’s a one-man job!• Adds flexibility to the construction of new systems in existing and new buildings.• Extends the life of other related parts (motors, drive pipes, structure stability) due to the specially formulated inner plastic ring which serves as bearing support and holds the drive line in its optimal position.• A better alternative to a standard support plate and other shaft hangers.• Makes complicated drive line repairs easy!

The pillow block with a double-shell stamped metal bracket works as a support point for 34 mm drive shafts for ventilation- and shading-systems in greenhouses. The pillow block has mounting holes for M8 bolts.Thanks to its double-shell construction the ball bearing within the bracket can be replaced, if needed. The product can be delivered with a usual ball bearing SB 207 (24000101) or with a ball bearing with a longer inner ring UB 207 (24000101).Material: Galvanized steel (housing & bearing)

This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel

Mounting height: Lower edge to middle of drive shaft 77 mmRidder Art.-Nr.: 503095

These tube connector halves are used for reliable connection of 34 mm steel tubes for drive shafts. Compared to heat-welded connection our tube connector halves offer higher stability and durability. The connector halves are bolted to the steel tubes with the included M8x50 bolts. Material: Steel, galvanized

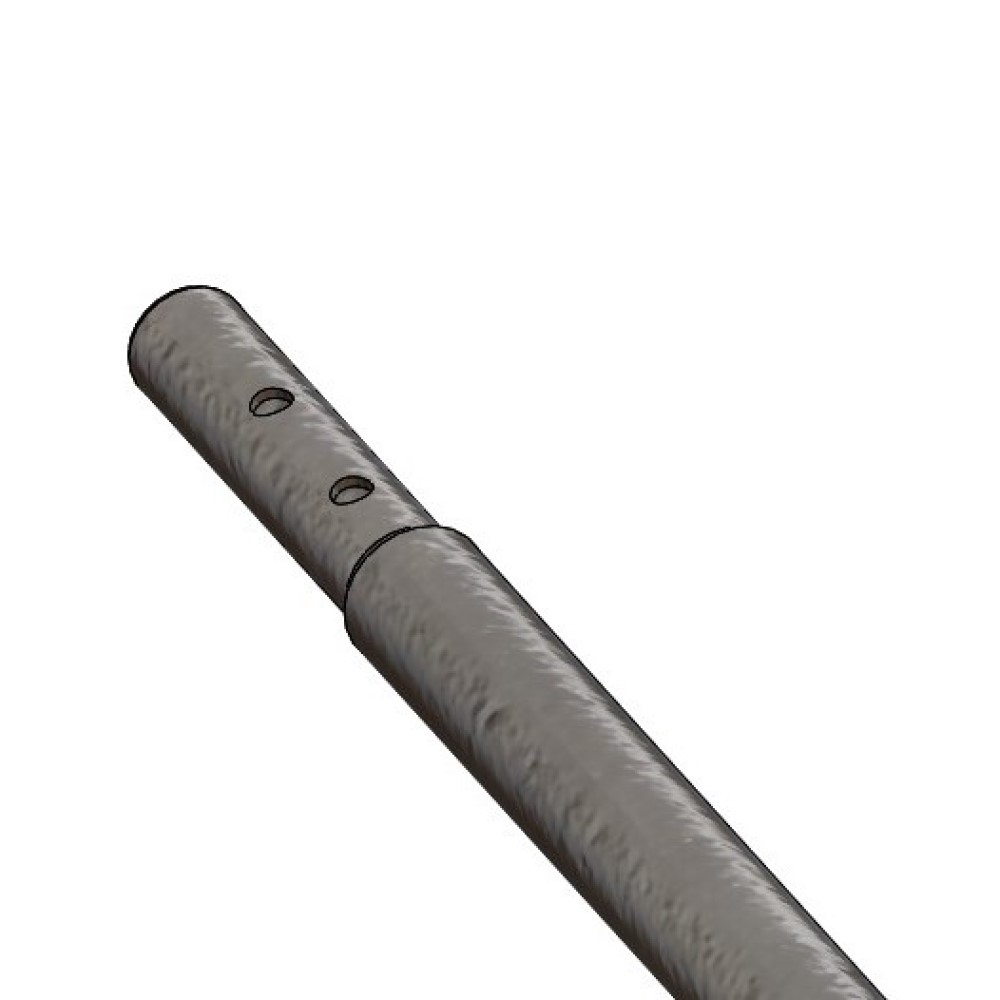

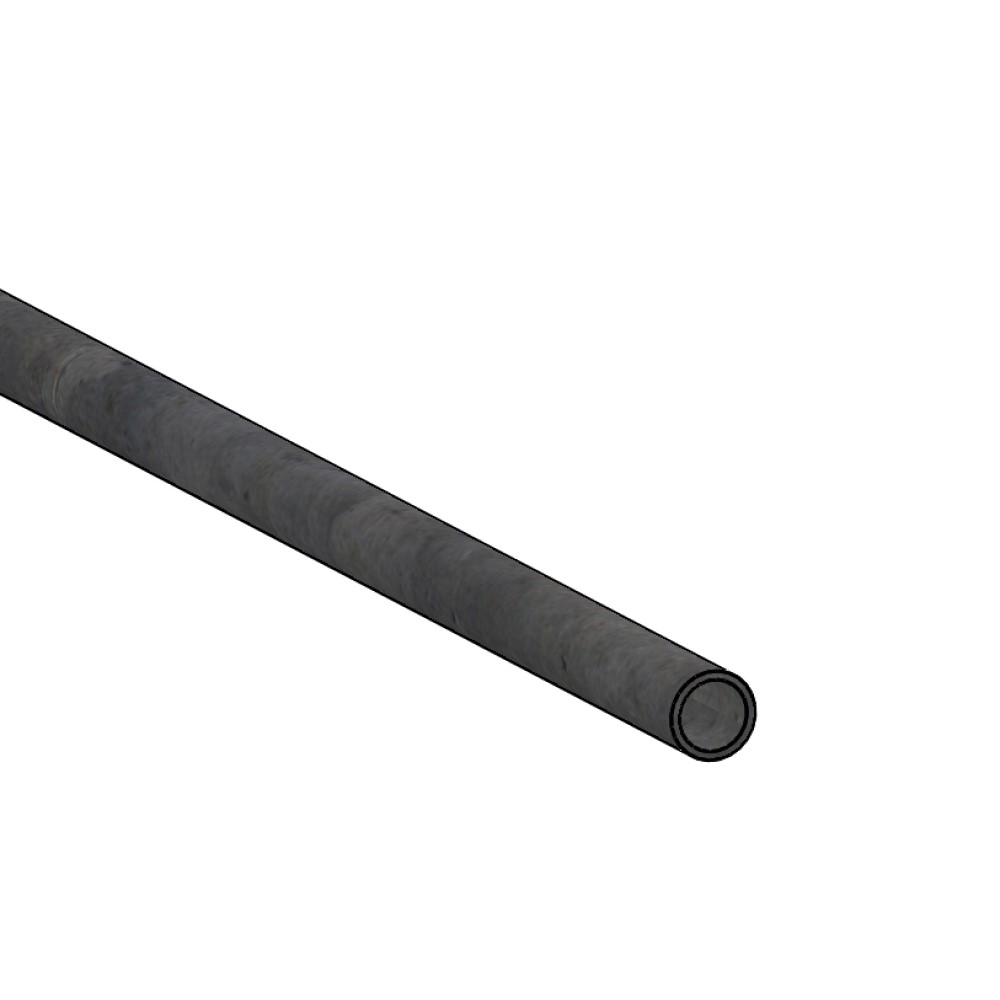

This steel tube is used as a drive shaft for ventilation systems and large shading systems in greenhouses.Due to its wall-thickness of 2,50 mm, it is resistant against torsion.The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt M8 x 50 with a nyloc nut M8 are neededDiameter: 1 Wall thickness: 2.5 mmLength: 6500 mmMaterial: Galvanised Steel

This steel tube is used as a drive shaft in shading and ventilation systems in large greenhouses. Due to its wall thickness of 3.25 mm, it is very resistant against torsion. The tube connector halves within our product range are used to connect the tubes. Diameter: 33.5 mm Wall thickness: 3,25 mm Length: 6050 mm Material: Steel, galvanized

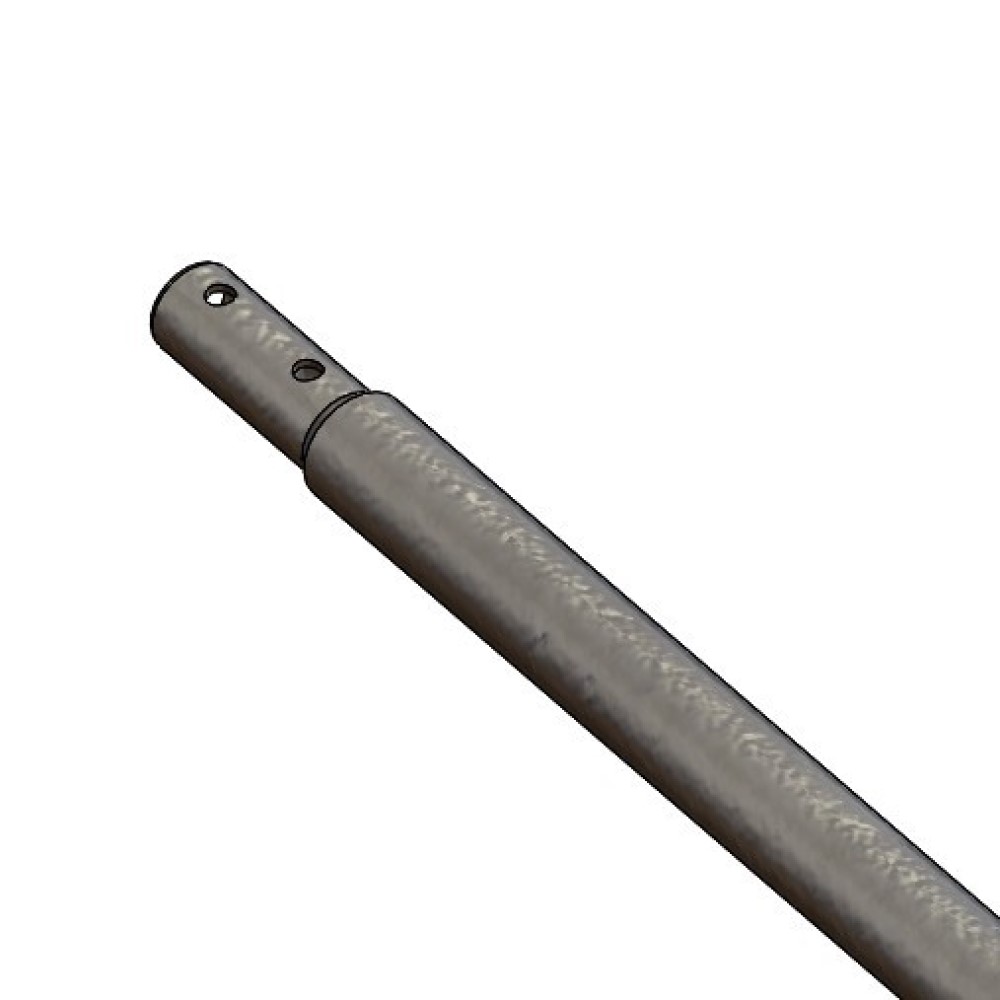

This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 27 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel

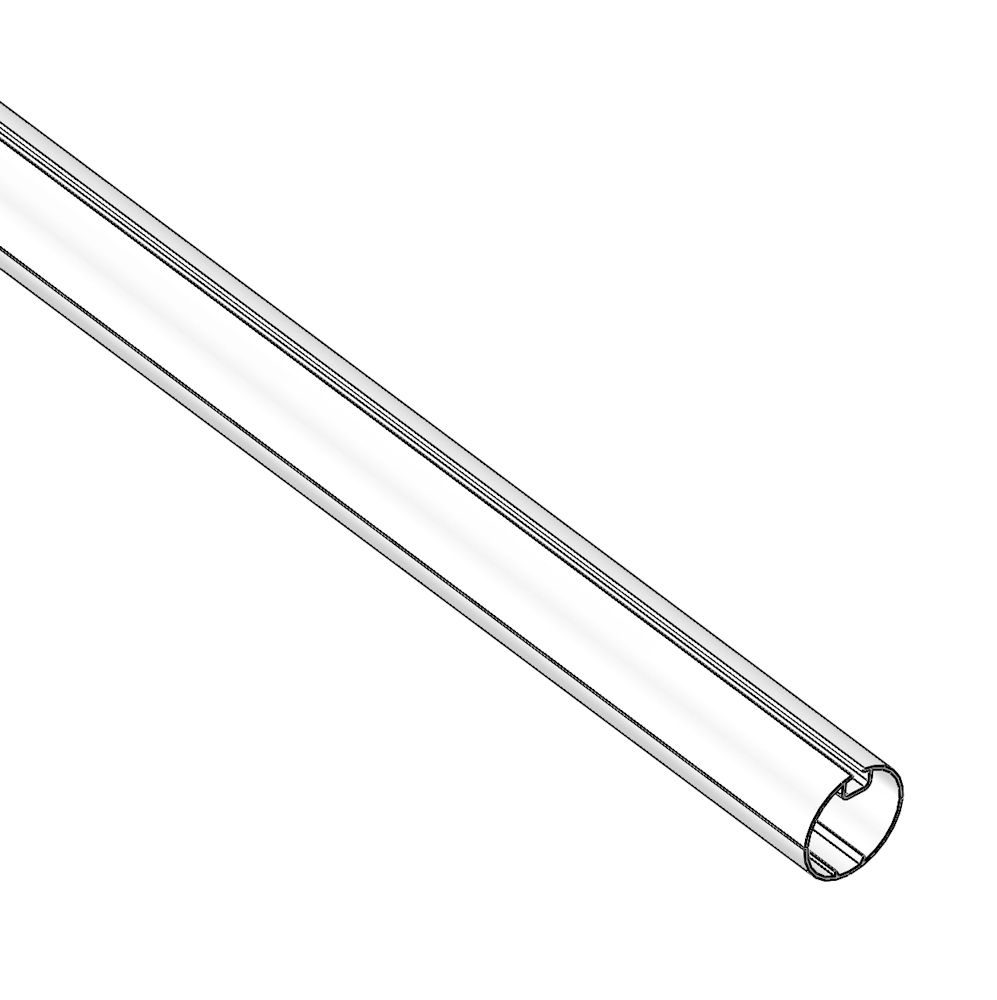

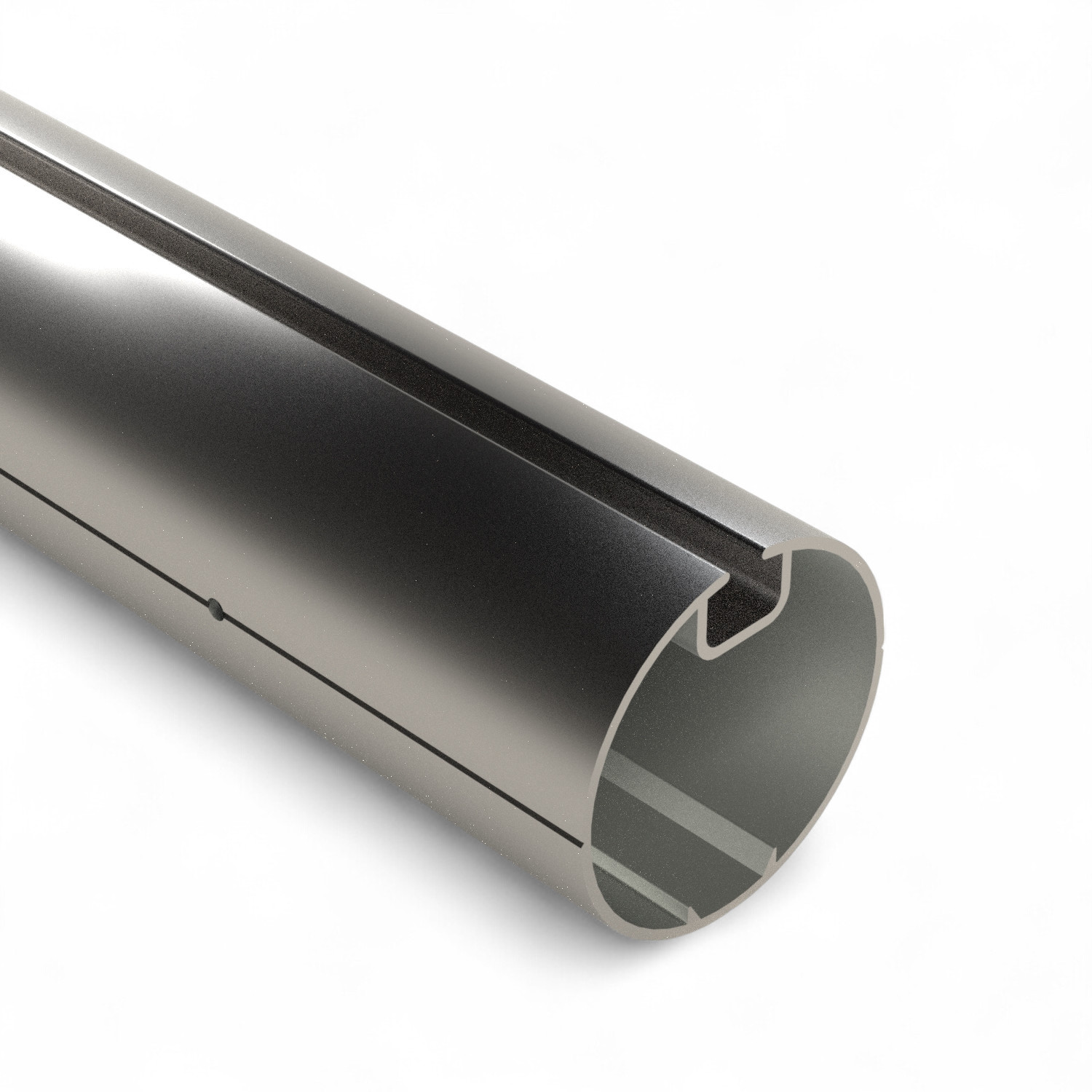

Das ideale Rollschirmrohr für Single-Rollschirme. Es ist ausgestattet mit einer Nut zum Einführen des Gewebes.Material: Aluminium

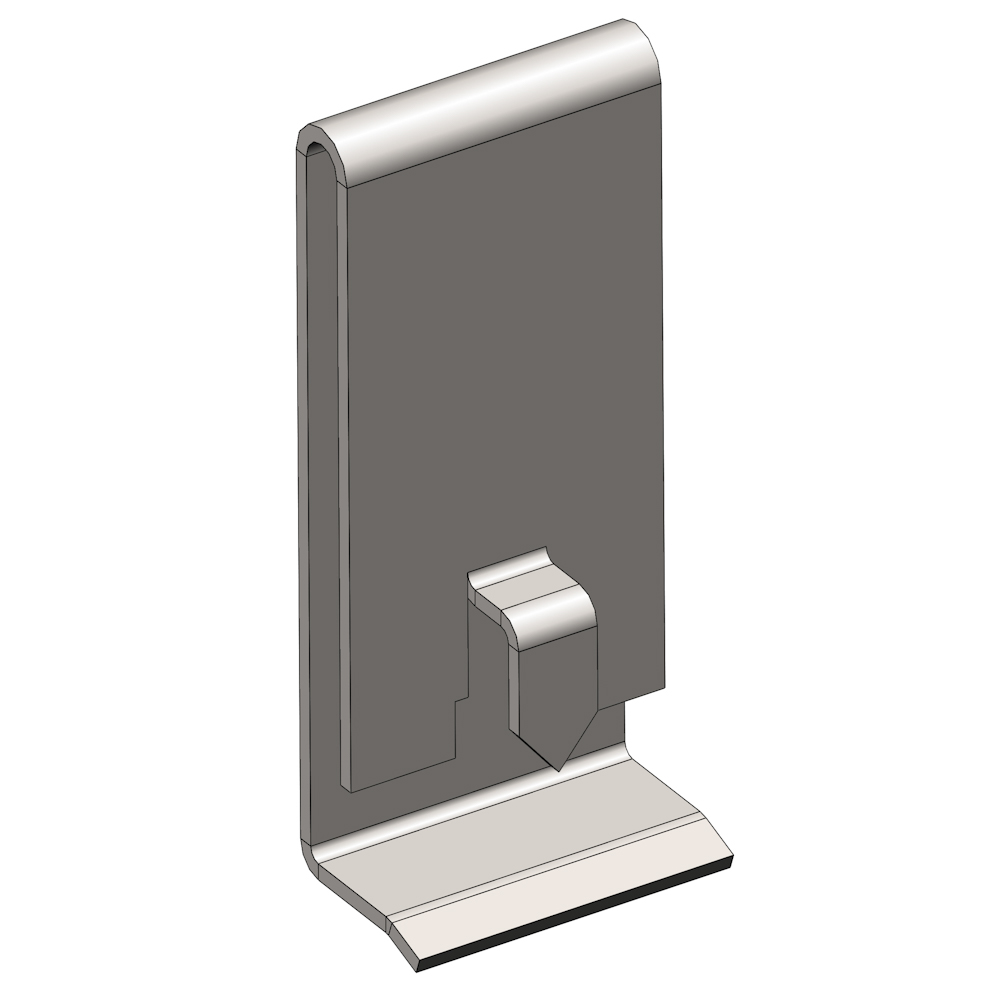

Our purlin clips are used to attach a roll-up fabric to purlins in greenhouses.Material: Stainless steel

This adapter is inserted in telescopic system to connect built-in U-joint and the steel tubes. The extended version allows to use a spacing roller like it is used, for example, in TGU TransAxle Unit.It fits 27 mm tubes with a wall thickness of 1,5 mm.It is a perfect solution for TGU TransAxle Unit as well as for single and double U-joints. Material: Galvanized steel

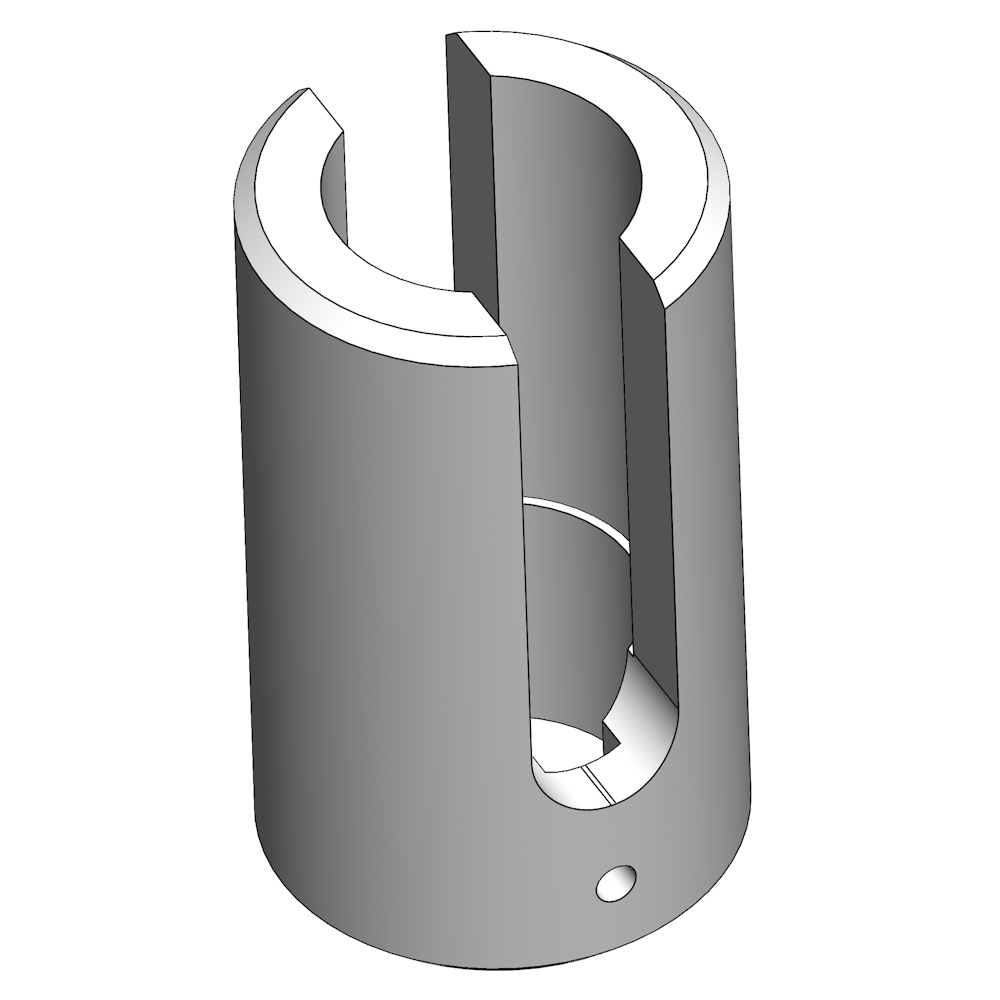

This adapter gets inserted in roll up screen systems in between the gear motor RW 45 and a 50 mm roll up tube. It specially fits the TGU Tower Roller Plus System.Material: Milled aluminium

This adapter is inserted in telescopic system to connect built-in U-joint and the steel tubes. The extended version allows to use a spacing roller like it is used,for example, TGU TransAxle Unit.It fits 32 mm tubes with a wall thickness of 1,5 mm.It is a perfect solution for TGU TransAxle Unit as well as for single and double U-joints. Material: Galvanized steel

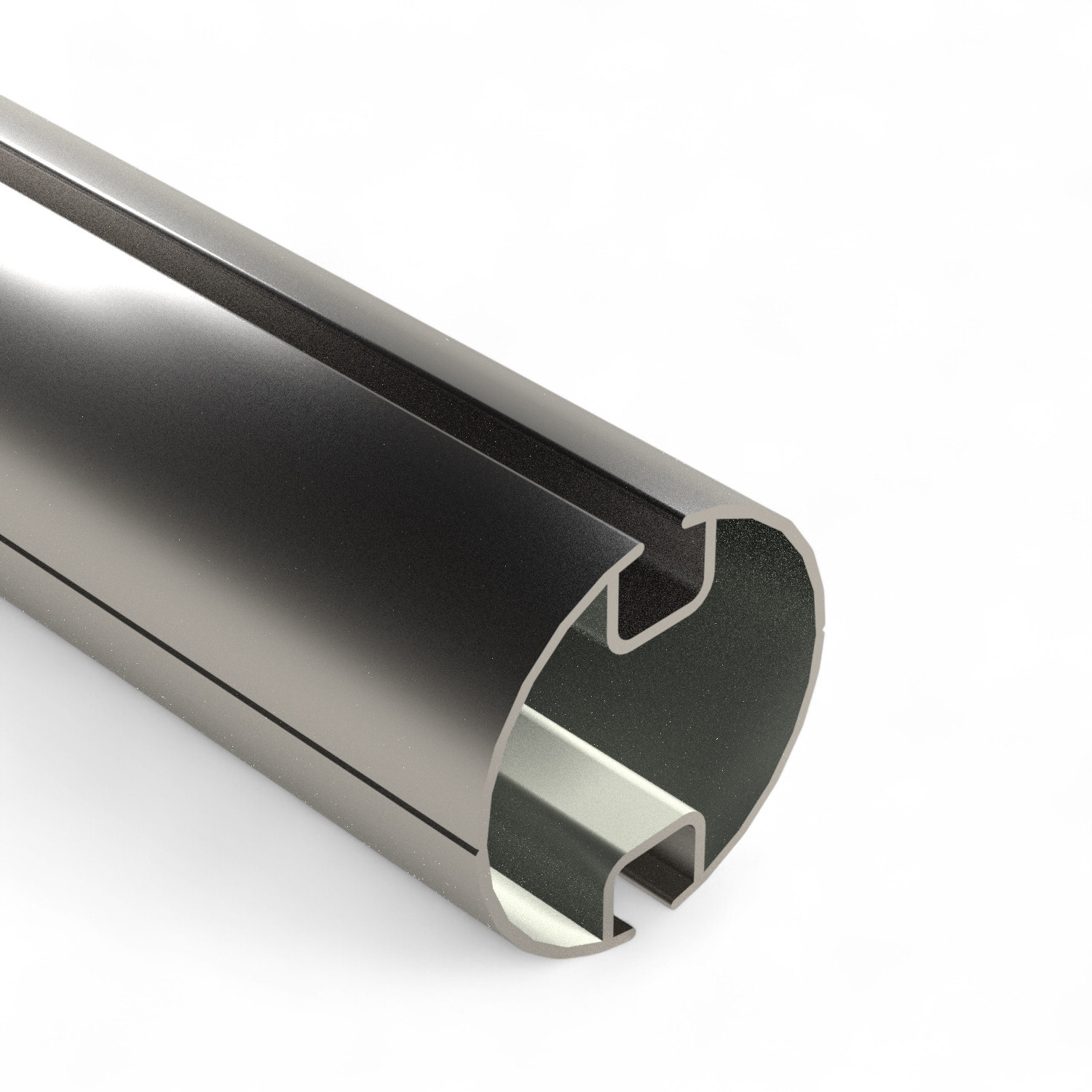

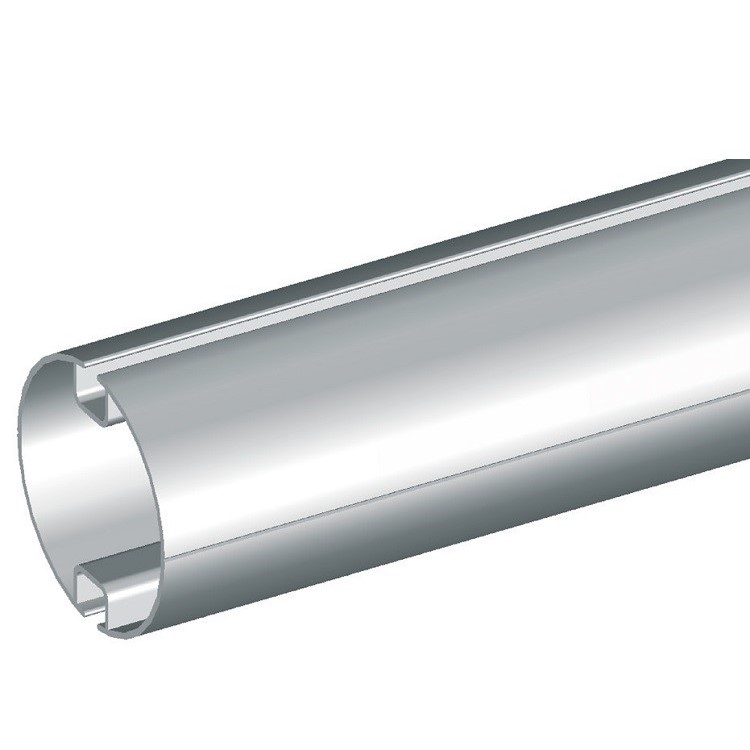

The perfect tube for twin roll-up screens. It is equipped with two notches for inserting the shade cloth. Material: Aluminum

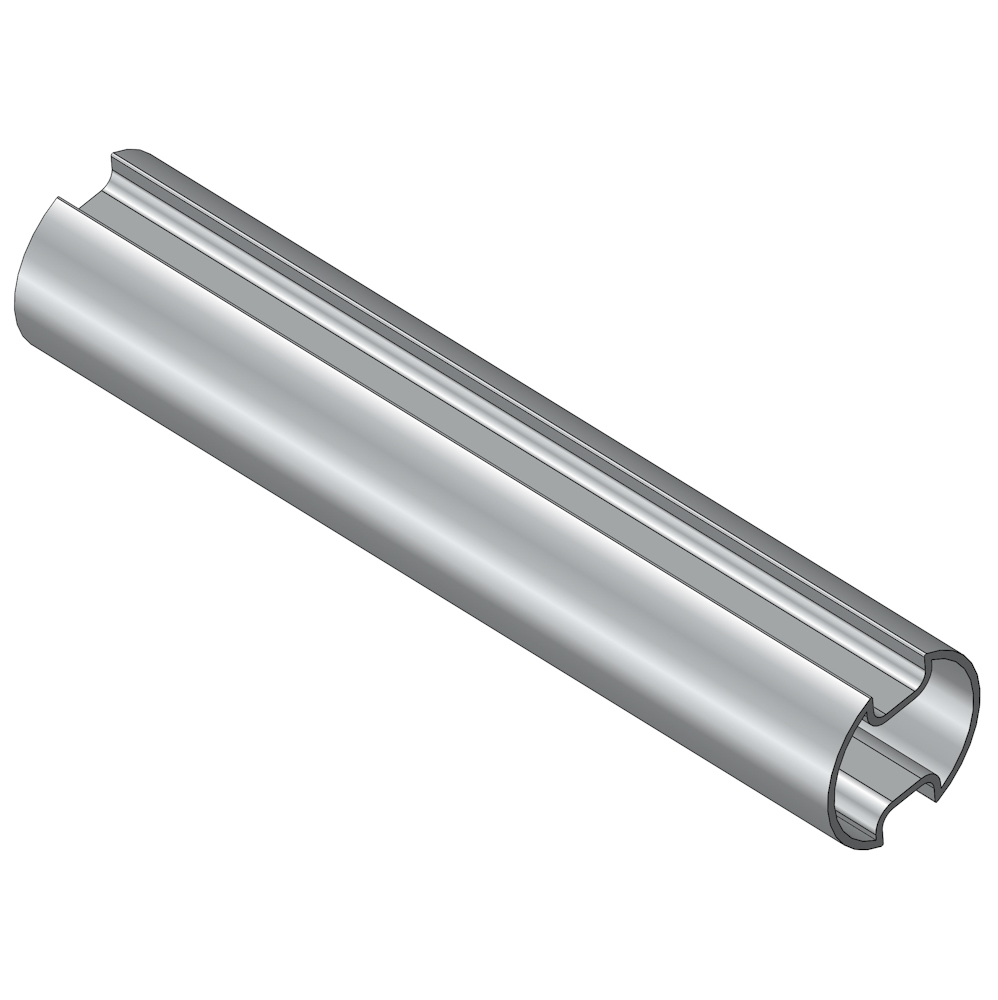

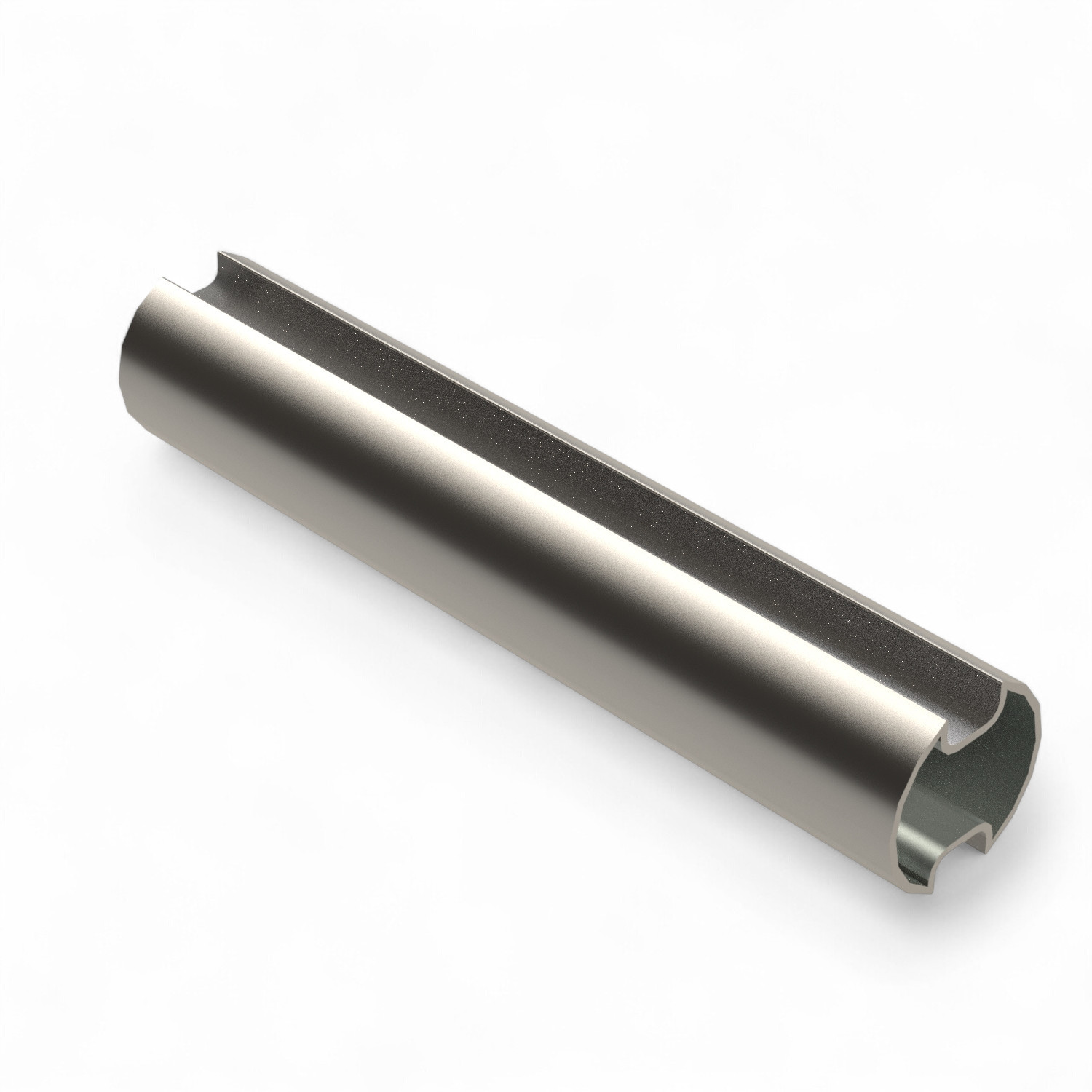

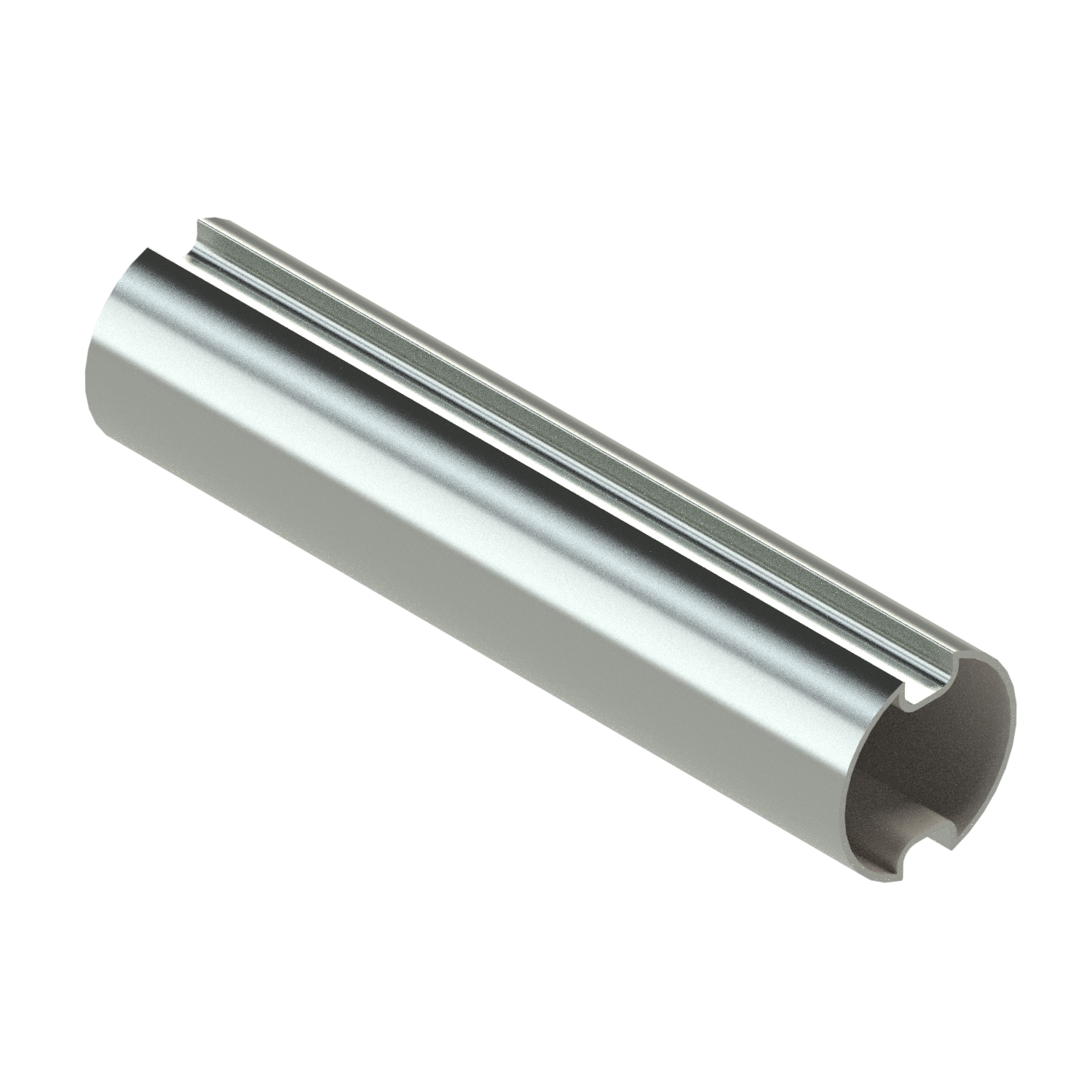

The splices are getting inserted into the roll-up tube. Aluminium rivets provide a reliable hold. The splices are compatible with aluminium tube 50 type I and II. Material: aluminium

This adapter gets inserted in telescopic systems in between the built-in U-joint and the steel tubes. It is suitable with 34 mm tubes with a wall thickness of 2,5 mm and 32 mm tubes with 1,5 mm wall thickness.It specially fits the TGU TransAxle Unit as well as single and double U-joints. Material: Galvanized steel

This adapter gets inserted in roll up screen systems in between the gear motor RW 45 and a 50 mm roll up tube. It specially fits the TGU Tower Roller Plus System.Material: Milled aluminium

This adapter gets inserted in roll up screen systems in between the gear motor RW 240 and a 63 mm roll up tube. It specially fits the TGU Tower Roller Plus System Material: Milled aluminium

This adapter gets inserted in roll up screen systems in between the gear motor RW 240 and a 63 mm roll up tube. It specially fits the TGU Tower Roller Plus System Material: Milled aluminium

This can be used in roll up screen systems to connect the telescope and roll up screen tube.

Das ideale Rollschirmrohr für Twin-Rollschirme. Es ist ausgestattet mit zwei Nuten zum Einführen des Gewebes.Material: Aluminium
