aircraft cable black poly coated 1x7 1,7- 2,5mm
Our black poly coated cable is used for fastening shading screens. Its plastic coating does not damage the cloth and thus increases its durability. It can also serve as a support for polyester wire in lay flat shading system.Material: Steel with plastic coating
Content: 1 m (€1.000000 / 100 m)
Wire tightener compact version for roll up
Our compact wire tigthener is very helpful by installing wires in narrow areas of shading systems and other constructions. The tightener provides more stable position of your cables and wires ,than other tigthener do.(Fixing only M6)
Cable track
The fitting endclip for the 10 x 10 energy chain. The endclip comes with holes for the attachement to the roll up bracket. Material: Plastic
Tube connectors halfs 1" - incl. 4 bolts M8 x 45
These tube connector halves are used for reliable connection of 34 mm steel tubes for drive shafts. Compared to heat-welded connection our tube connector halves offer higher stability and durability. The connector halves are bolted to the steel tubes with the included M8x50 bolts. Material: Steel, galvanized

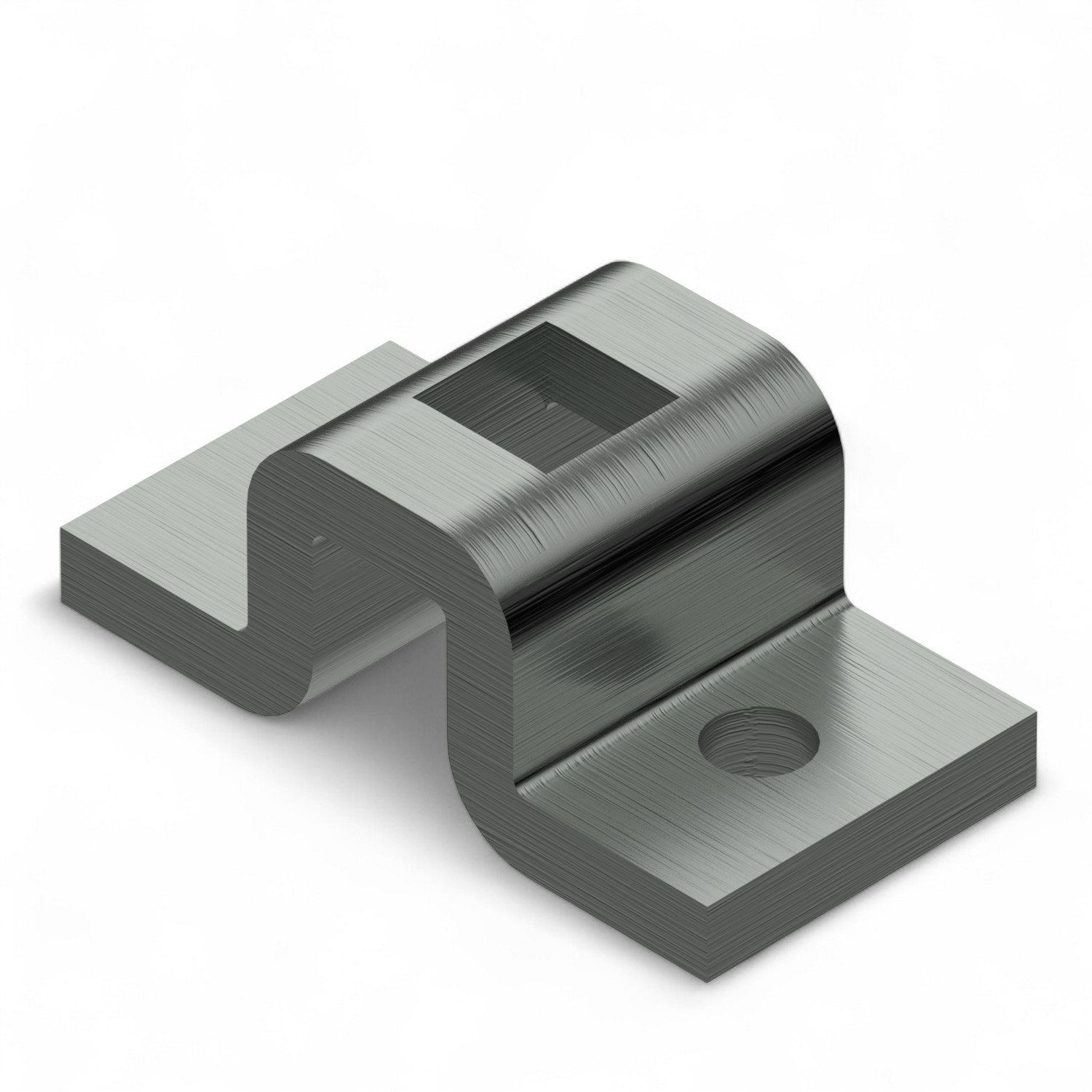

Mounting bracket for tube motor 10 mm
Application: Mounting bracket for attaching tube motors with 10×10 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 10 mm drive pin The Mounting bracket for tube motor – 10 mm is used to securely attach the motor to the motor guide. It accepts the 10×10 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.

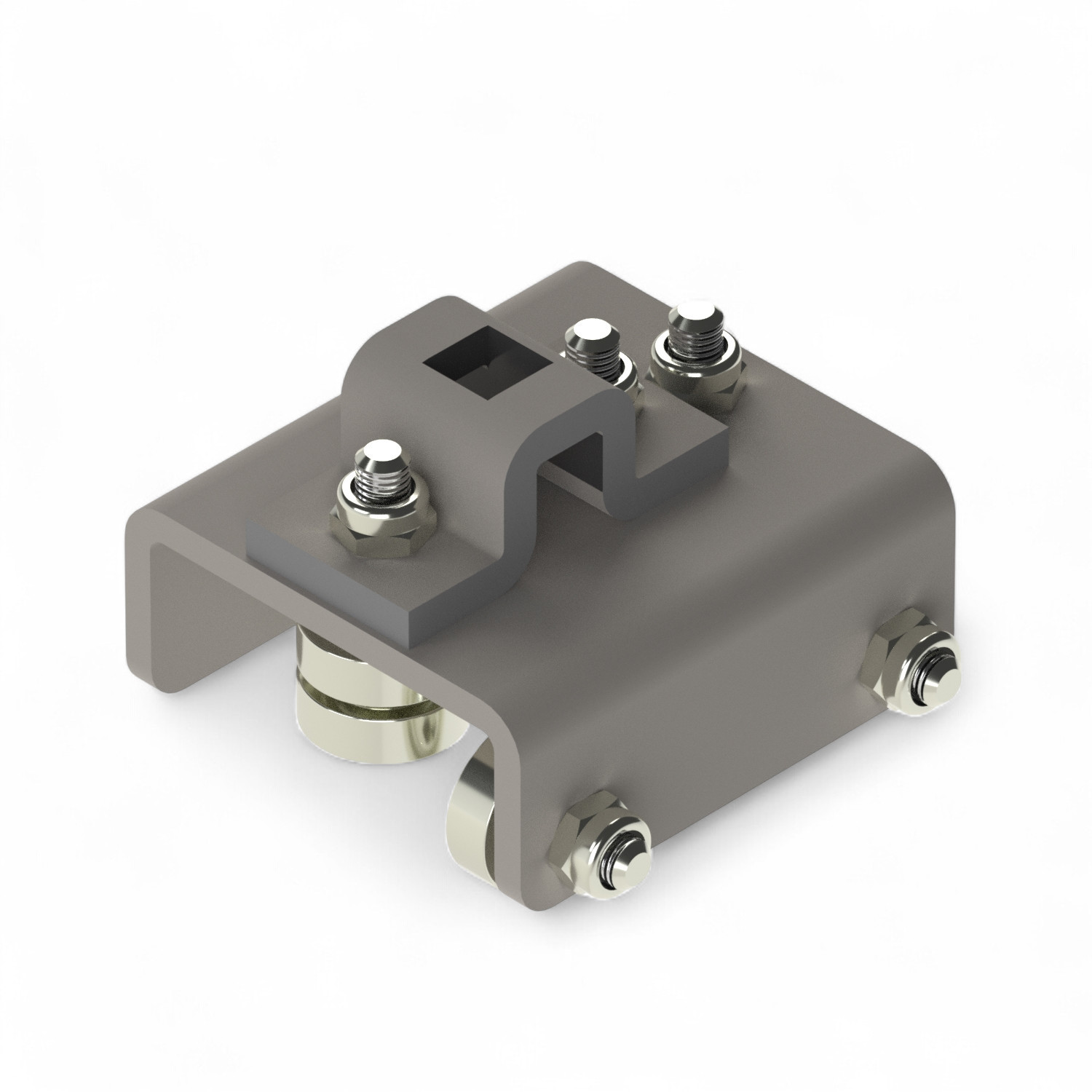

Guiding unit for tube motor RB40 /50/ TGU
Application: Standard motor guide for RB40, RB50, and FRM50 tube motors Material: Galvanized steel Mounting: Accepts 10×10 mm square pin - includes mounting bracket Function: Moves the motor along the guide rail Packaging unit: 50 pieces The Guiding unit for tube motor RB40 / RB50 / TGU is a robust and reliable solution for guiding tube motors in greenhouse systems. It ensures smooth movement along the guide rail and is compatible with 10 mm square motor pins.
Steel tube galv narrowed
This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel

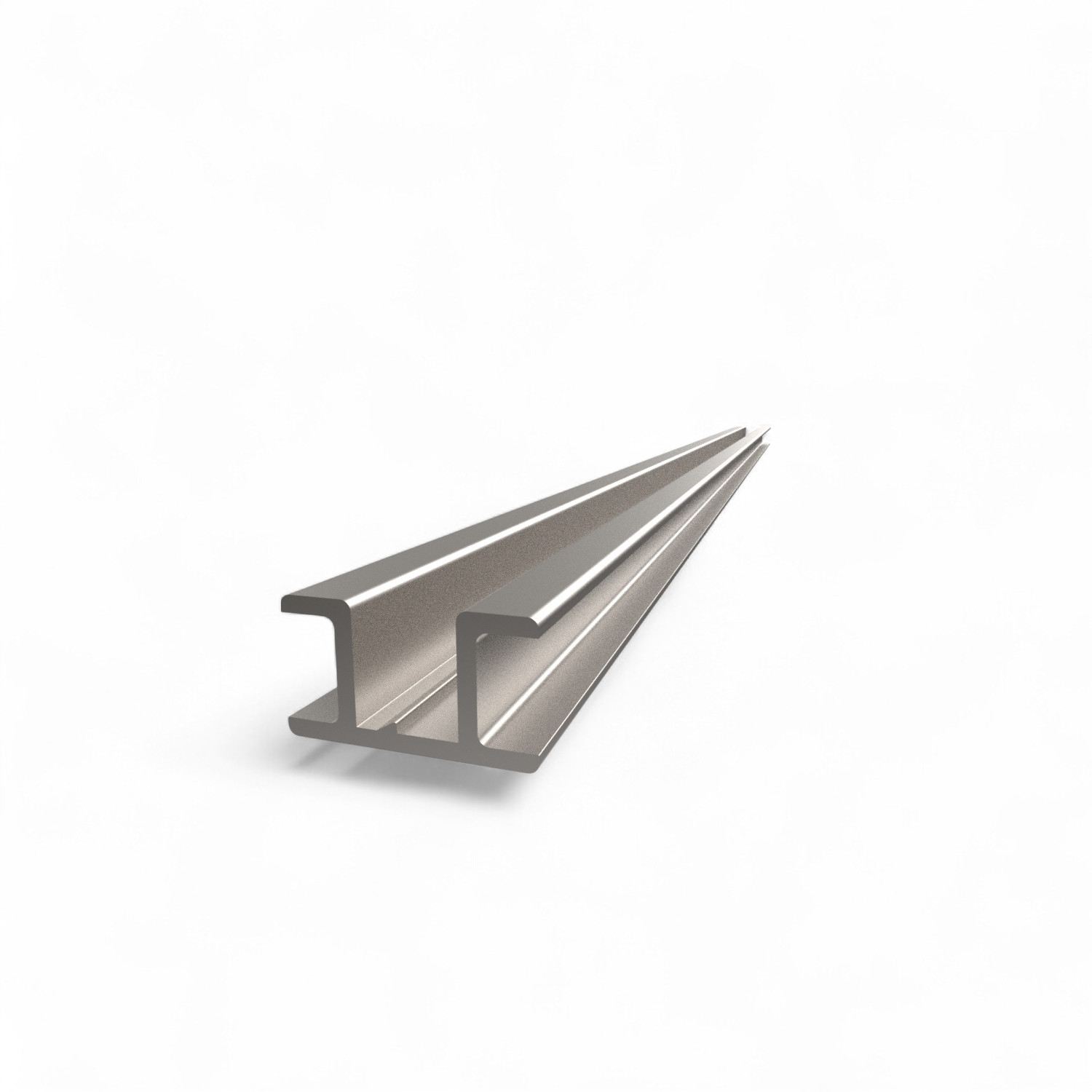

Guide rail for tube motor
The guide profile for tubular motors in conjunction with our roller carriage ensures, that your tubular motor is guided straight in roll up systems.
FRM50-tube motor-50-12-230
Application: Horizontal shading systems in greenhouses Voltage: 230 V (120 V version also available) Torque: 50 Nm Speed: 12 rpm Mounting: Delivered with 10×10 mm square shaft adapter Tube compatibility: For 50 mm and 63 mm roll-up tubes Limit switches: Externally adjustable with Allen key The FRM50 tube motor 50-12-230 is a durable and robust drive unit for greenhouse shading systems. It offers easy installation and adjustment, and is compatible with standard motor guides and brackets.
Steel tube - 32/1,5, galvanized, swaged - 6500 mm
This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel

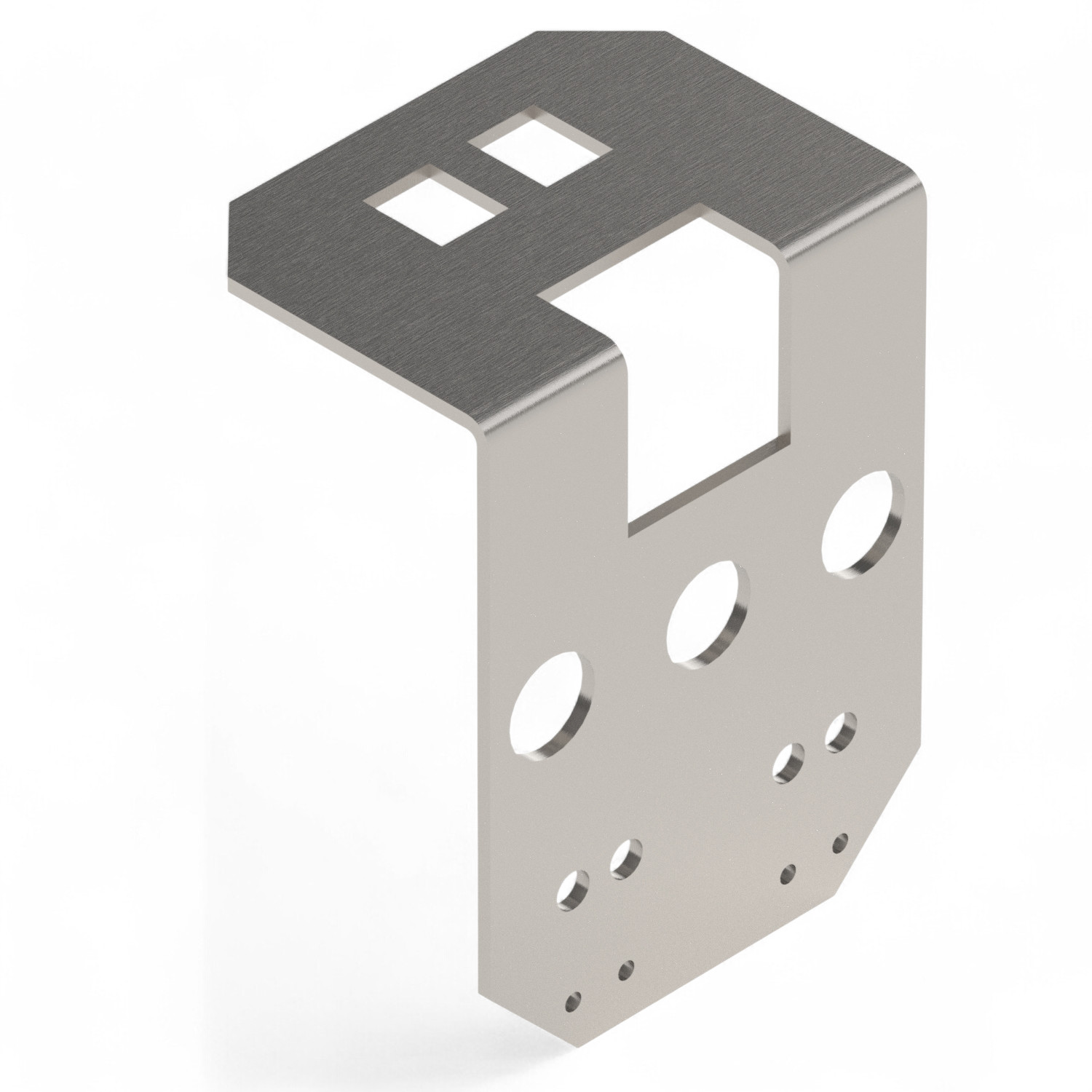

Roll up bracket for energy chain
Application: Mounting bracket for attaching energy chains to motor guides Material: Galvanized steel Mounting: Pre-punched holes for flexible installation directions Compatibility: Suitable for all standard 10×10 mm energy chains The Roll-up bracket for energy chain allows secure attachment of energy chains to the motor guide. It features pre-punched mounting holes for flexible positioning and is made of corrosion-resistant galvanized steel for long-term durability.

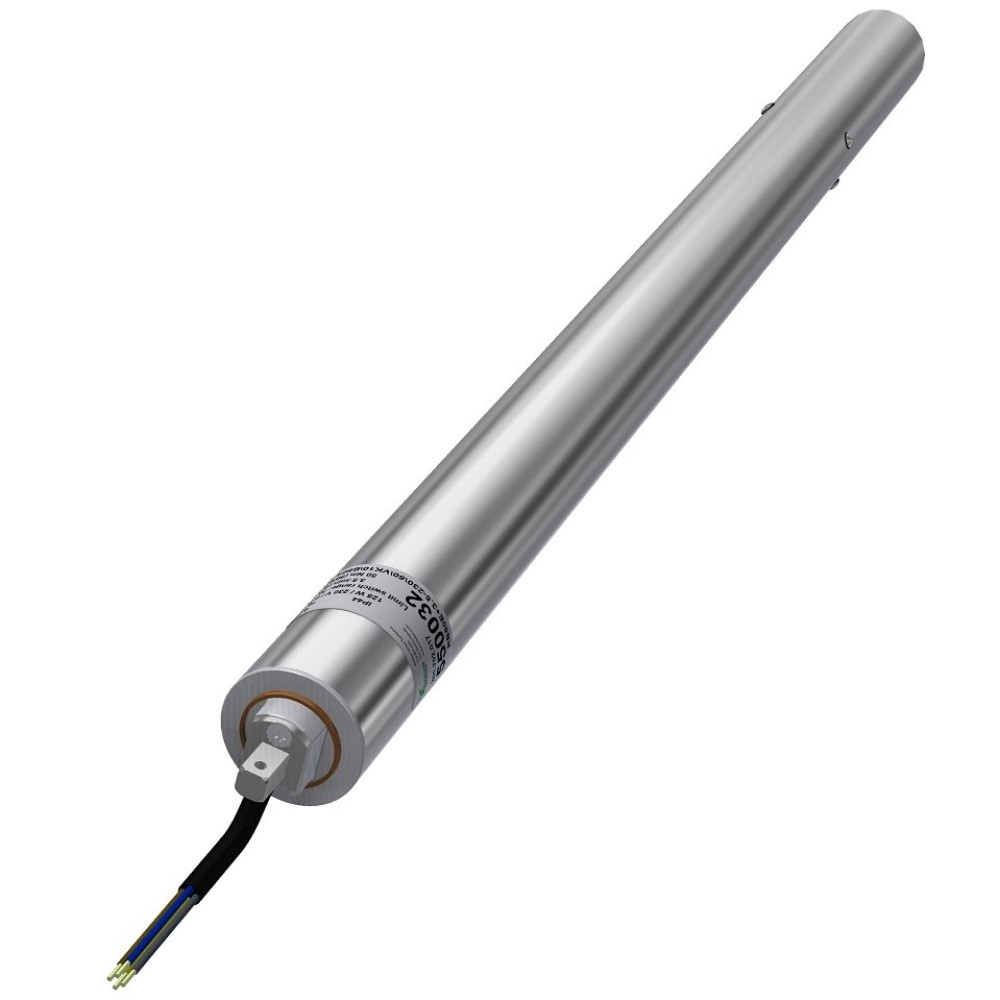

Tube motor RB50E+3.5 - 230\50\VK10\B50\L772
Application: Maintenance-free drive for roll screen systems in greenhouses and livestock buildings Material: Built into an aluminum tube with 50 mm diameter and 1.5 mm wall thickness Motor: Low-noise, single-phase, 2-pole asynchronous electric motor Limit switch: Precise electronic limit switch system with pulse counter (38 revolutions) Protection class: IP55 – high water resistance Torque: 50 Nm at 50 Hz Speed: 3.5 rpm at 50 Hz Ridder Article No.: 550032 The RB50E+ - 3.5-230/50/VK10/B50/L772 tubular motor is a powerful and maintenance-free drive unit for roll screen systems in greenhouses and livestock buildings. Thanks to its quiet operation and high water resistance, it is ideal for demanding environments. The integrated electronic limit switch system with pulse counter ensures precise control and protects the motor from overload. The IP55 protection rating allows reliable operation even in humid conditions. The motor is designed for intermittent operation and provides reliable braking performance, even under low voltage conditions.

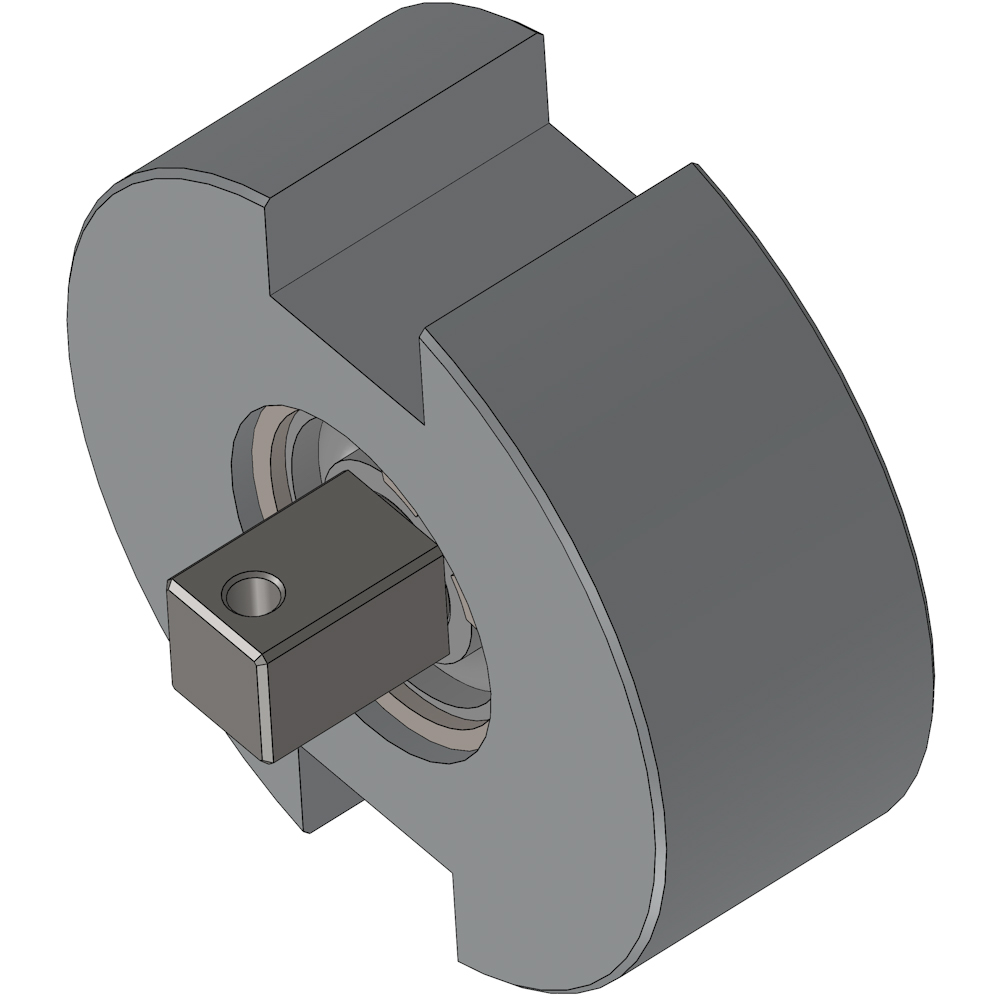

Endguide with bearing for tube motor
The endguide with bearing provides roll up tubes guiding at the side, that faces the tube motor. Therefore it is installed into the roll up tube. Material: aluminium
Al. tube for roll up curtains 50mm Type 2 L=6,40mm - 2 grooves
Das ideale Rollschirmrohr für Twin-Rollschirme. Es ist ausgestattet mit zwei Nuten zum Einführen des Gewebes.Material: Aluminium
Steel tube, galvanized 1"
This steel tube is used as a drive shaft in shading and ventilation systems in large greenhouses. Due to its wall thickness of 3.25 mm, it is very resistant against torsion. The tube connector halves within our product range are used to connect the tubes. Diameter: 33.5 mm Wall thickness: 3,25 mm Length: 6050 mm Material: Steel, galvanized
Tube motor Ridder RB120-11-44\230\1\50\36 - 230V, 120 Nm
Application: For sidewall and dual roll-up screen systems in greenhouses Voltage: 230 V / 50 Hz (also available for 60 Hz) Torque: 120 Nm Speed: 11 rpm (50 Hz) / 13 rpm (60 Hz) Limit switches: Mechanical, adjustable (38 turns) Tube compatibility: For 63 mm roll-up tubes Protection class: IP44 Ridder Article No.: 550180 The RB120-11-44 tube motor is a high-torque, maintenance-free drive unit for large greenhouse shading systems. It features a sealed housing, integrated brake, and a robust planetary gearbox for long-lasting performance.
Adaptor Tube
Application: Connector in telescopic systems – between universal joint and steel pipe Compatibility: Suitable for 34 mm pipes with 2.5 mm wall thickness and 32 mm pipes with 1.5 mm wall thickness Material: Galvanized steel – robust and corrosion-resistant Installation: Inserted into the pipe – ideal for TransAxle units as well as single and double universal joints Packing unit: 1 piece Special features: Enables backlash-free, force-locking connection Suitable for shading and ventilation systems in greenhouse construction The Pipe Adapter Ø 33.4 × 2.5 mm is a versatile connector for telescopic systems in greenhouse installations. It serves as a transition between universal joints and steel pipes, ensuring a secure, backlash-free connection. Thanks to its compatibility with different pipe diameters and its robust galvanized steel design, it's ideal for durable and low-maintenance applications.

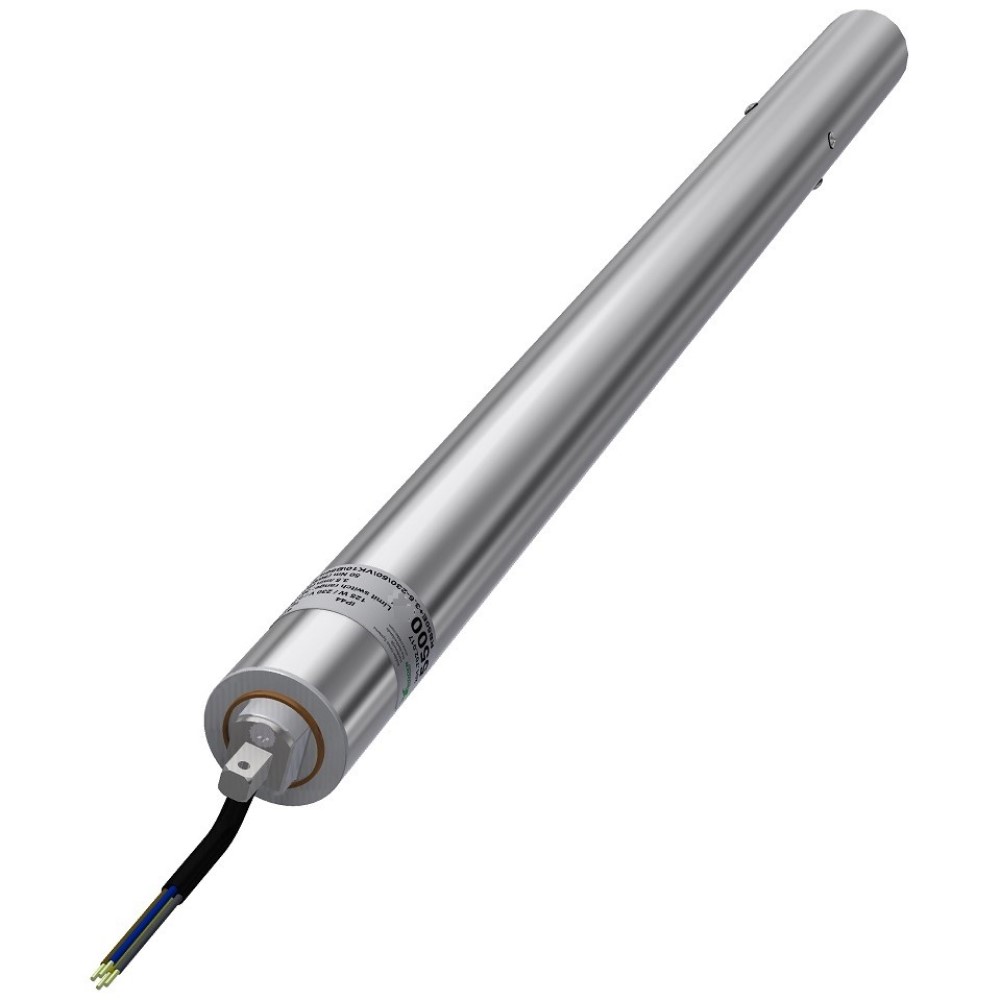

Tube motor RB50-3.5-13\230\1\50/60\38\16 - 230 V
Application: For horizontal shading systems in greenhouses Voltage: 230 V, 1-phase Torque: 3.5 Nm Speed: 13 rpm Limit switches: Mechanical, adjustable Compatibility: For 50 mm drive tubes Ridder Article No.: 550025 The RB50-3.5-13 tube motor is a compact and efficient drive for greenhouse shading systems. It features mechanical limit switches and is compatible with 50 mm roll-up tubes. Ideal for small to mid-sized installations.

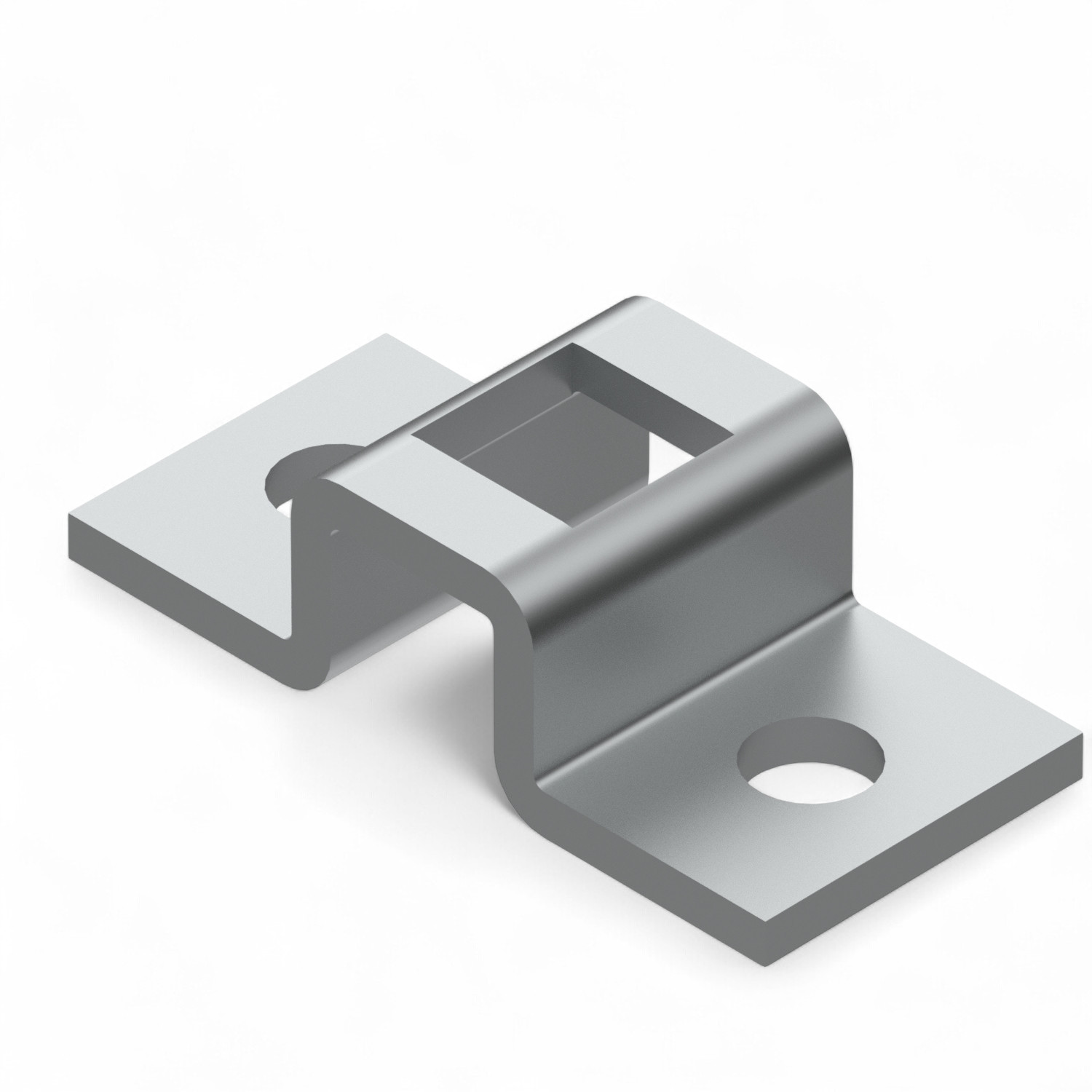

Mounting bracket for tube motor 16 mm
Application: Mounting bracket for attaching tube motors with 16×16 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 16 mm drive pin The Mounting bracket for tube motor – 16 mm is used to securely attach the motor to the motor guide. It accepts the 16×16 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.
RPU 24V\4-20mA\V2\SET
Application: Digital positioning sensor for Ridder RW gear motors Signal output: 4–20 mA (also configurable to 0–5 V or 0–10 V) Technology: Contactless Hall sensor with magnetic axis Accuracy: ±0.04% of the learned measuring range Compatibility: All RW motors with RSU limit switch system Features: Reverse-polarity protection, LED status display, reference input Ridder Article No.: 502687 The RPU 24V / 4–20 mA / V3 is a high-precision digital positioning unit for Ridder RW motors. It continuously reports the motor position to a climate controller and is ideal for ventilation, shading, and lifting systems. Its contactless design ensures maintenance-free operation and long-term reliability.
Adaptor axle 26
Application: Connection between lock motor and drive shaft with universal joint Material: Durable steel for high stability and long service life Function: Ensures stable power transmission The Adapter for Lock Motor 1" / Universal Joint provides a reliable connection between the lock motor and the drive shaft. Its sturdy steel construction ensures excellent stability and long-term durability.
Aluminum tube for rollup curtains 50 mm Type I
Das ideale Rollschirmrohr für Single-Rollschirme. Es ist ausgestattet mit einer Nut zum Einführen des Gewebes.Material: Aluminium

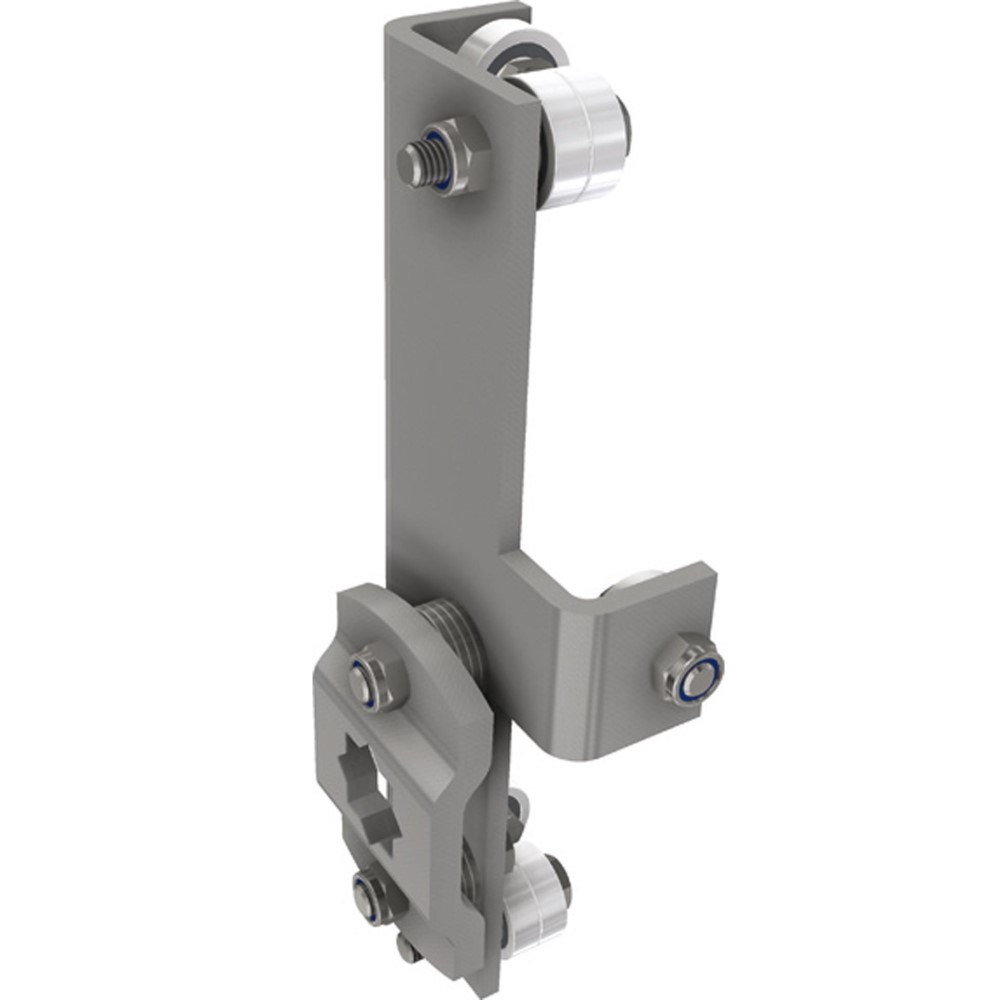

Guiding unit for tube motor VK16\L170
Application: Motor guide for RB120-11/13 tube motors in vertical guide rails Material: Galvanized steel Mounting: Accepts 16×16 mm square pin - secured with cotter pin Function: Absorbs axial and rotational forces of the motor Ridder Article No.: 550505 The Guiding unit VK16 / L170 is designed for RB120 tube motors and ensures stable and precise movement within the guide rail. It is built to absorb both axial and rotational forces and is secured with a 16 mm square pin and cotter pin.
