This cable can be perfectly applied for ventilation systems in greenhouses and other horticultural constructions.Material:Steel Galvanized

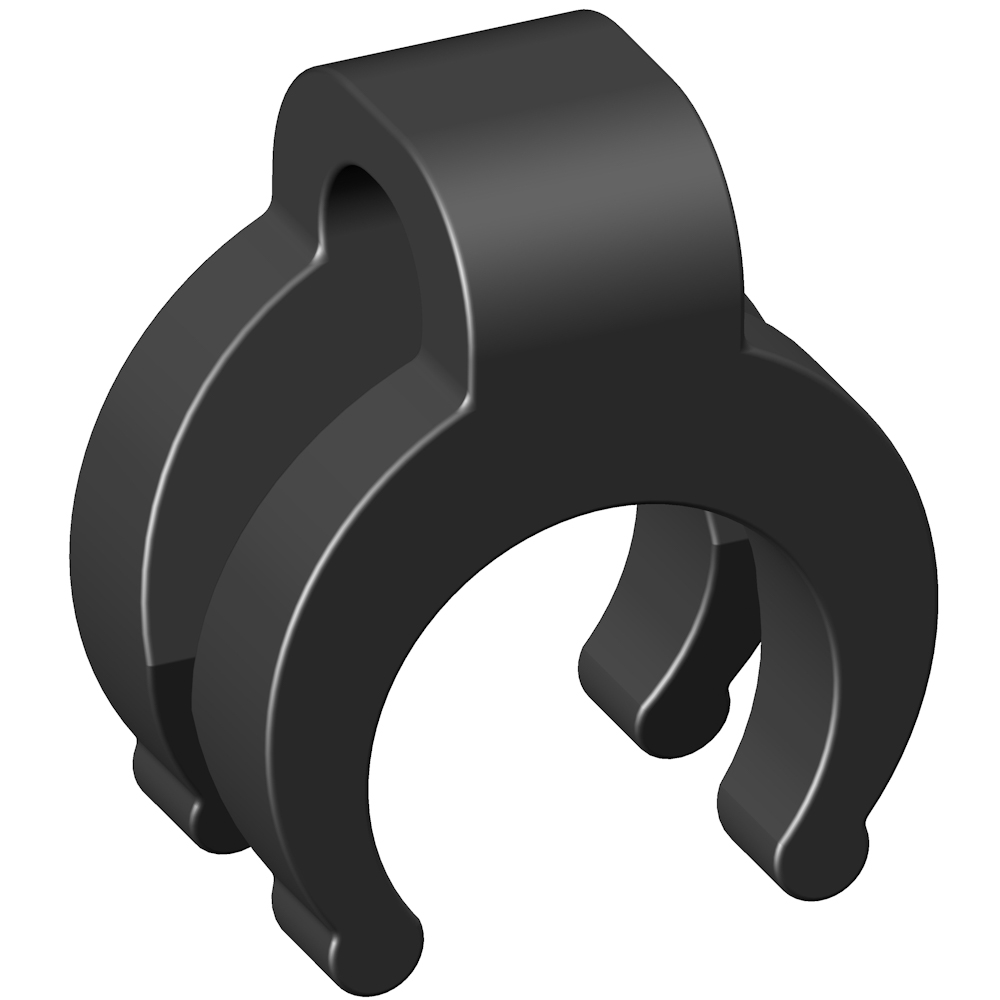

This lead edge tube clip 19 L connects support wire with 19 mm aluminium tubes in shading systems. Compared to the S 19 model, the clip L 19 provides a larger distance between the tube and wire. In some greenhouse types this ensures better sealing, when the energy screens are closed.

Is used for the attachement of 2 mm aircraft wire. Material: Steel Galvanized

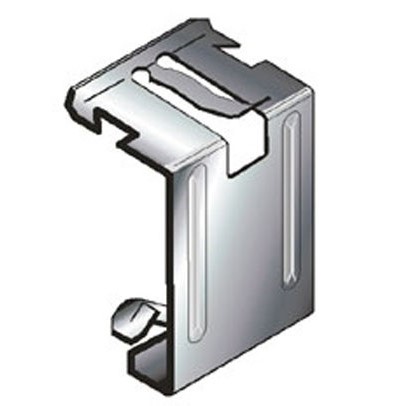

With this Inox truss-clip you are able to attach poly wire firmly to the truss in shading systems. The truss clips are slipped on to the truss from beside and are deliverable in different heights.Material: stainless steel

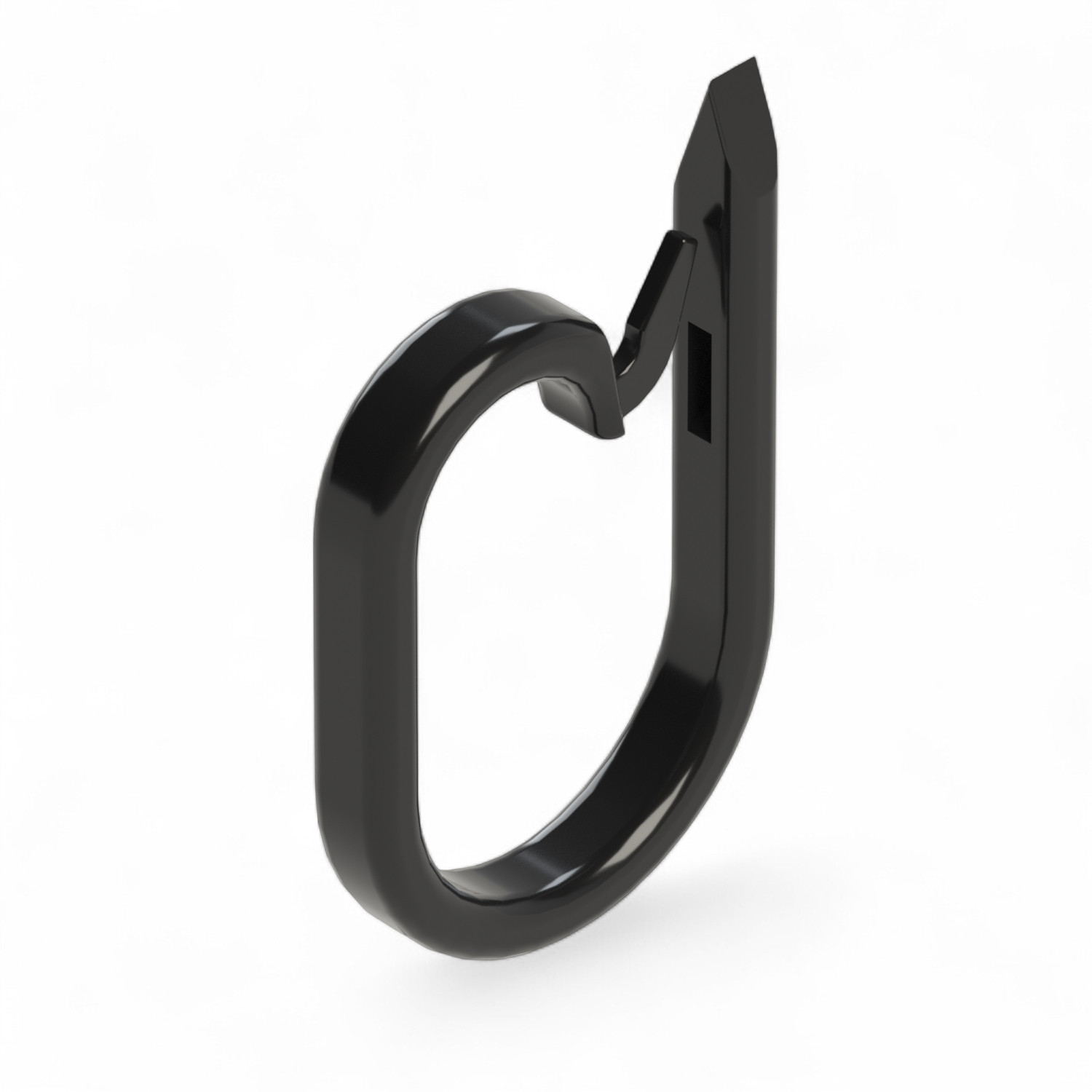

Our screen hooks are used to fasten screens overhangs onto clip profile. The hook is equipped with a special self-locking fastener.

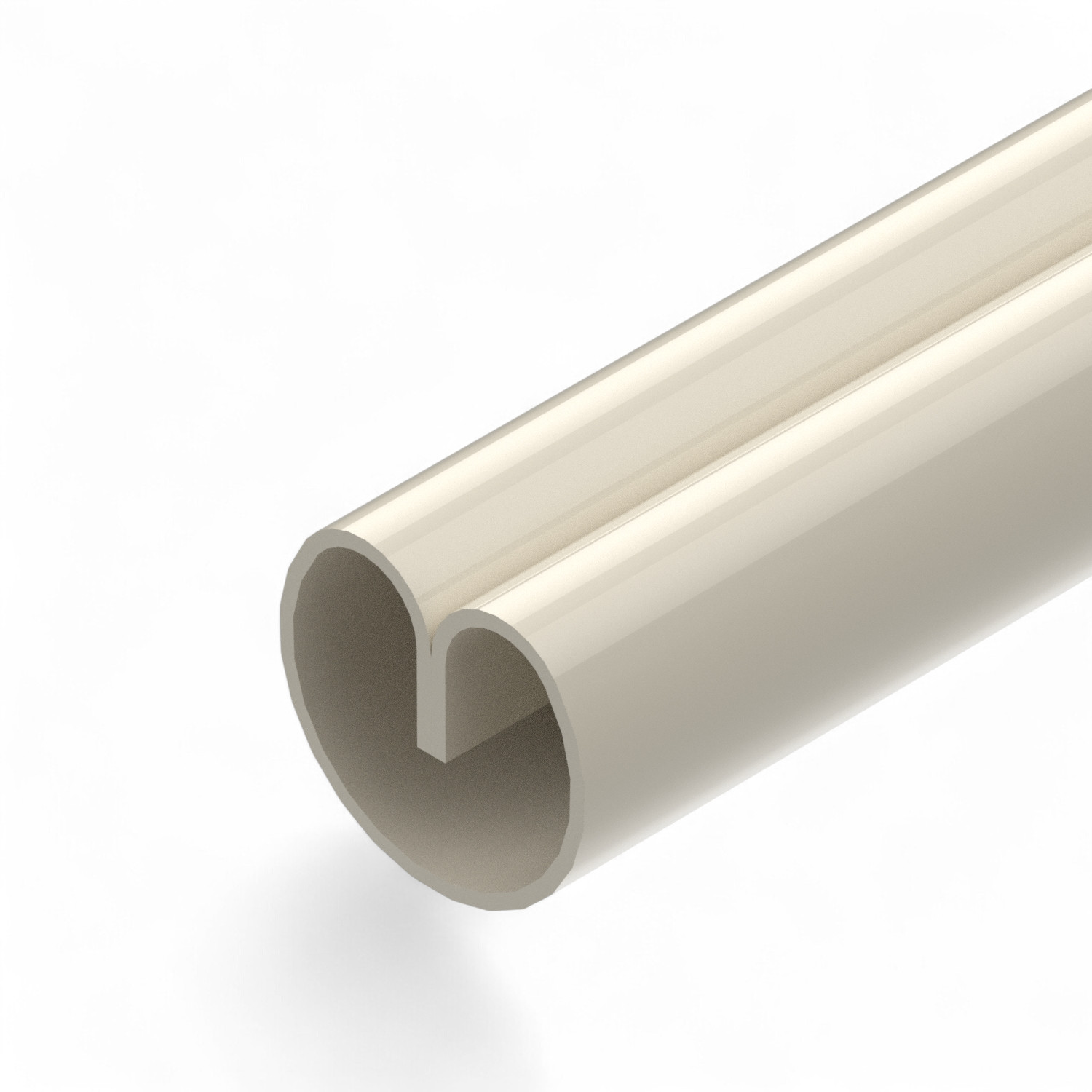

The clip profile protects ?loth overhangs in shading systems in greenhouses.It is clipped directly onto the tensioned coated cable to prevent screens rubbing against the wire.Material: PVC

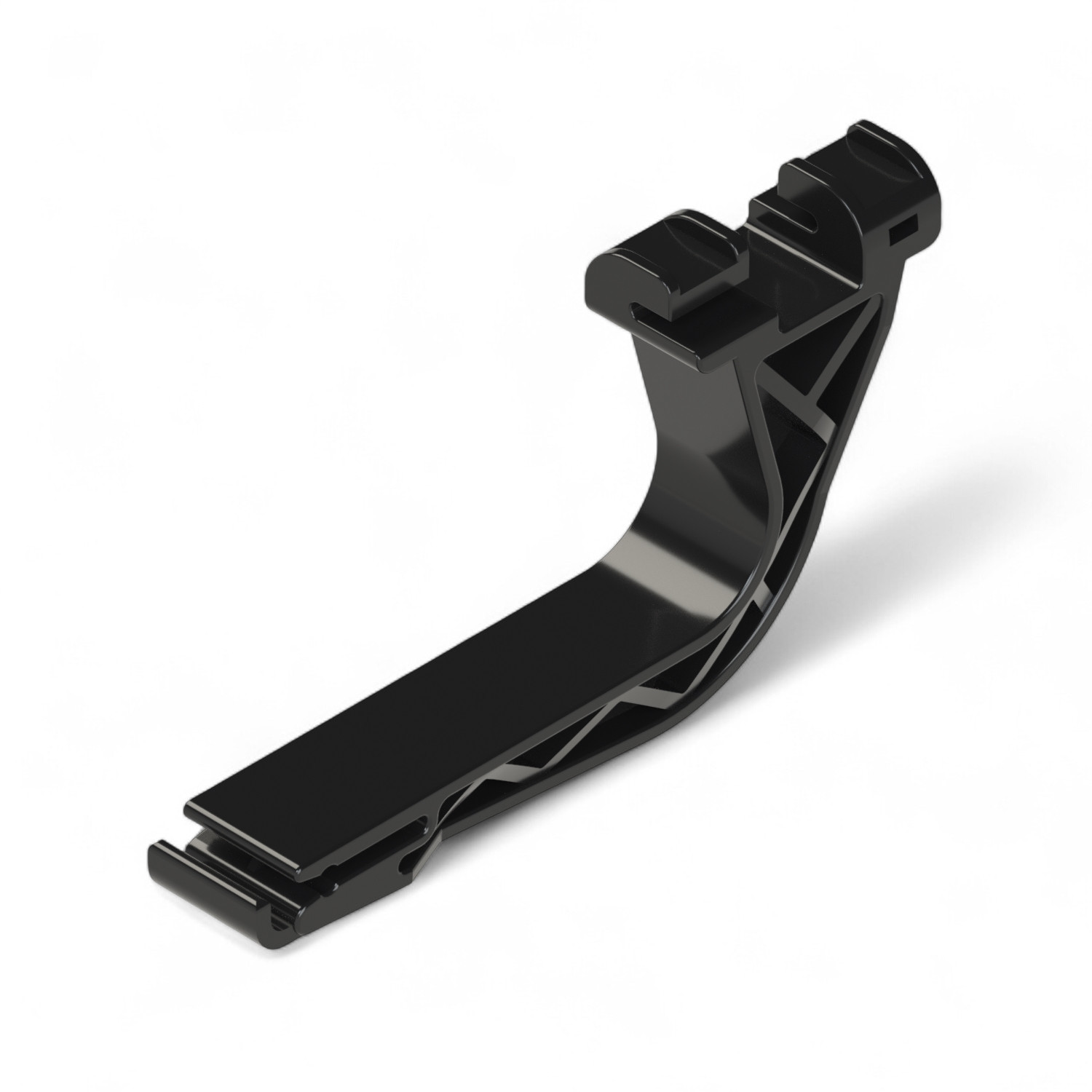

The sealing bracket seals the screen paths in suspended and lay-flat shading systems. This piece is made of plastic, that preserves the shade cloth. The bracket gets installed at the support wire to collect the following screen wih the help of the cord. Material: plastic

These springs are components for our slip joint. The slip joint comes standard with a soft spring.If one soft spring is not sufficient, you can use up to two hard pieces.

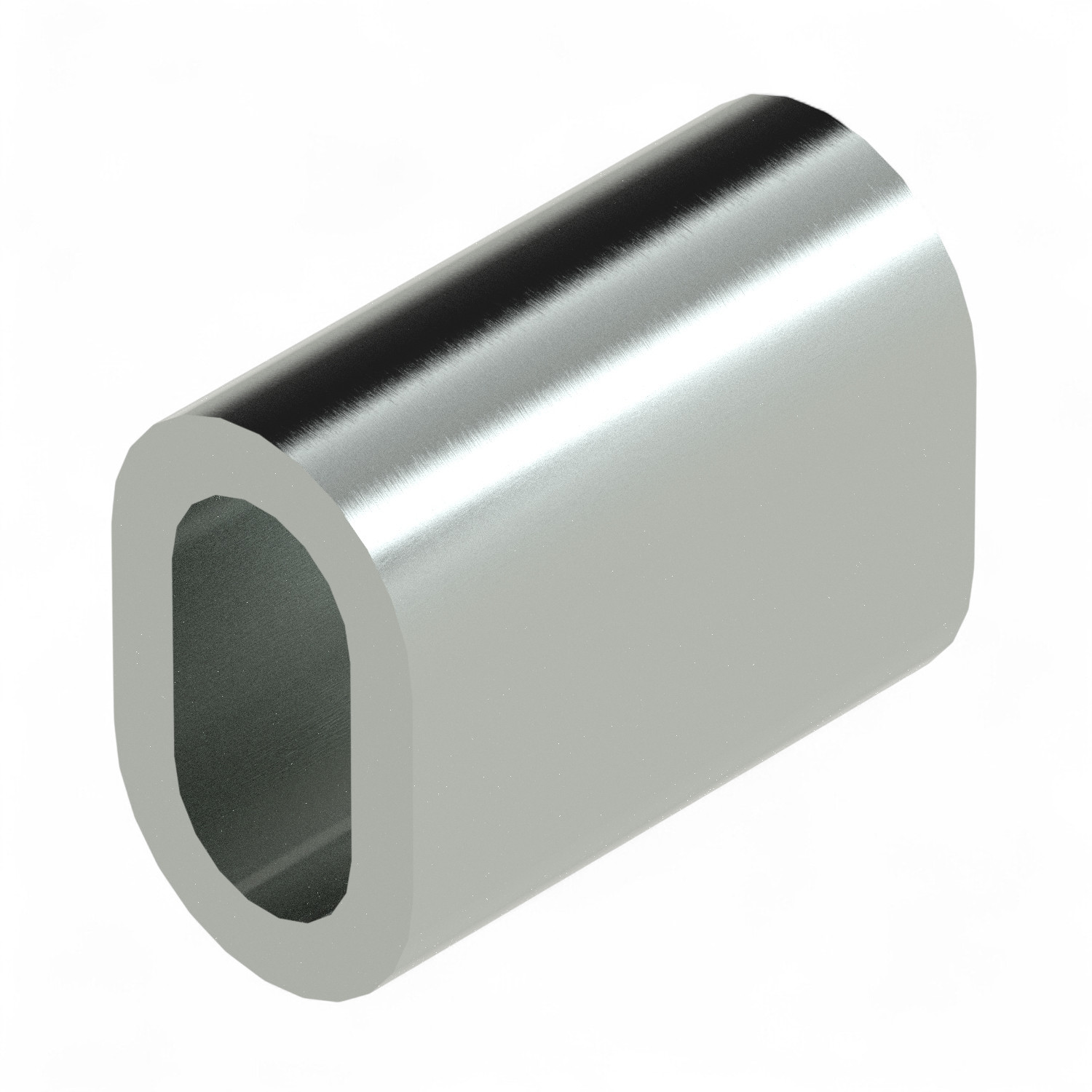

With these crints poly wire is attached securely to the support wire bracket universal and afterwards it gets bolted. Material: Steel, galvanized

A durable, stainless aircraft cable for cable drive shadings systems. Thanks to these characteristics it specially fits external constructions. It is compatible with our slip joint. Tensile strength:Material: Stainless Steel

The wire guide protects the poly wire in lay-flat energy screens from friction, caused by the screen profile. In suspended systems it works as a connection between support wire and screen profile. The wire guide is installed into the screw channel and can slide sideways within it.Material: plastic

This lead edge cable clip EXT ensures a strong connection of the drive cable and the 19 mm tube. The extended form of this clip allows to avoid the contact between drive cable and fabric, that can cause damage of the fabric.For mounting M 4x16 ISK bolts are needed.

It is an element of clamp set for tubes 19 mm. In combination with the table clamp it connects push-pull tubes and aluminium tubes in push-pull drive system.Material: aluminium

This lead edge cable clip S 19 ensures a firm connection of the drive cable and the 19 mm tube. For mounting M 4x16 ISK bolts are needed.

The table clamp 27.40 connects the 27 mm push rod with 19 mm tubes or screen profiles, which are guiding the shade cloth. This model perfectly suits your needs, if you are using thin shade cloth and therefore your construction has a smaller space between the fabric.

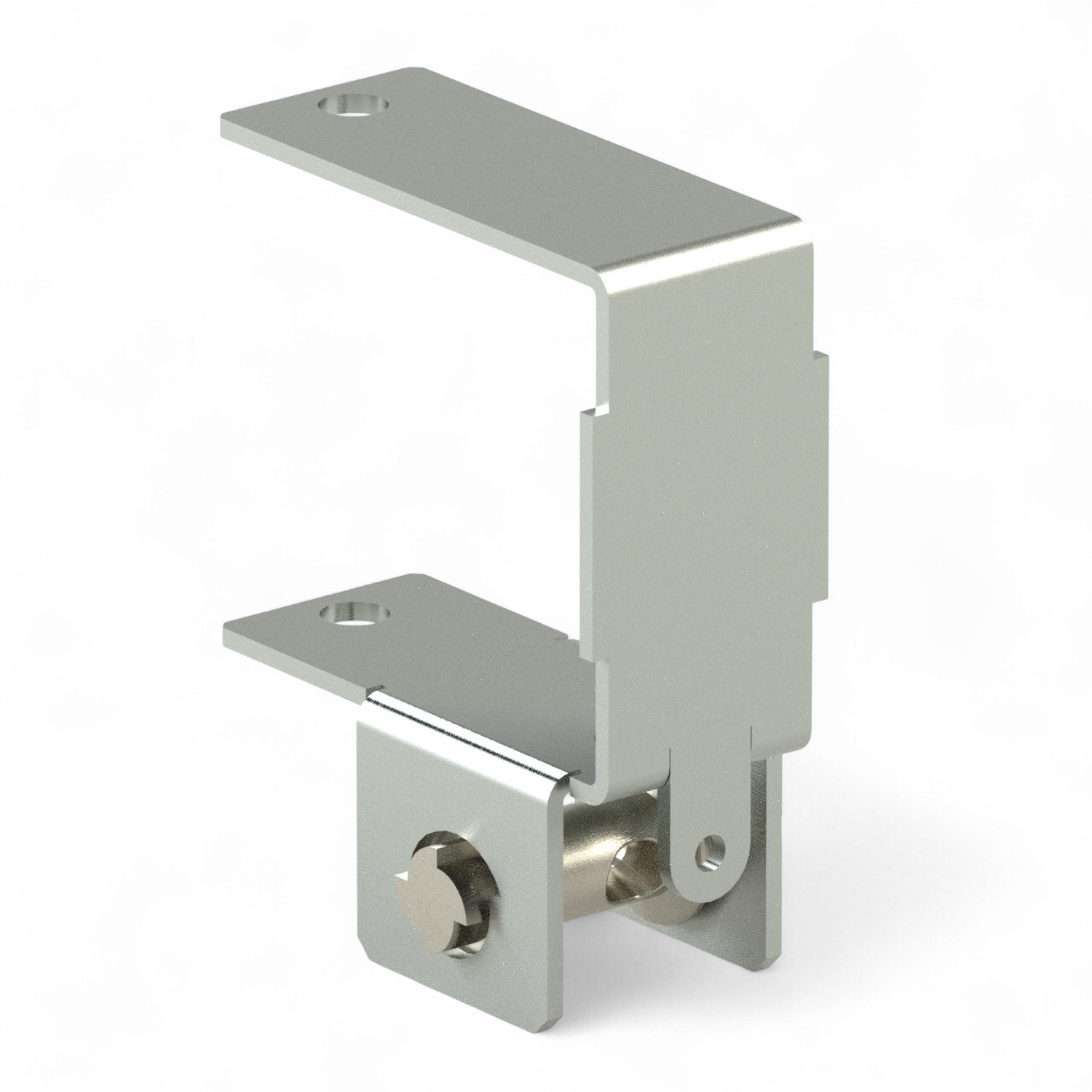

Our compact wire tigthener is very helpful by installing wires in narrow areas of shading systems and other constructions. The tightener provides more stable position of your cables and wires ,than other tigthener do.(Fixing only M6)

The cross clamp is a part of the TGU tube mount reduction set for shading systems. It connects the 19 mm screen conducting tube with the 19 mm delay tube.

This plastic insert is used to protect polyester wires, which are passed through holes in metal profiles.Thanks to a notch the component can be locked in the plate, so that a firm grip is guaranteed.The wire guide is suitable for profiles with a maximum thickness of 4 mm.Material: Plastic

The lead edge cable clip 19 connects 19 mm aluminium tubes with drive cables in lay flat shading systems. The lead edge cable clip is equipped with a bracket, which helps to bring back the shade cloth.

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The assembly is ideally done with the enclosed spacers. To avoid damaging the bearing, a stop nut should be used and the screw should not be tightened too much during assembly.Impact resistant pulleyTwo ball bearings with enclosed spacersLoad capacity: up to 200 kgMade in GermanyOuter diameter: 100 mmcompatible with 8 mm bolt (without spacers 10 mm)Total width: 35 mmRope diameter: up to Ø 20 mm

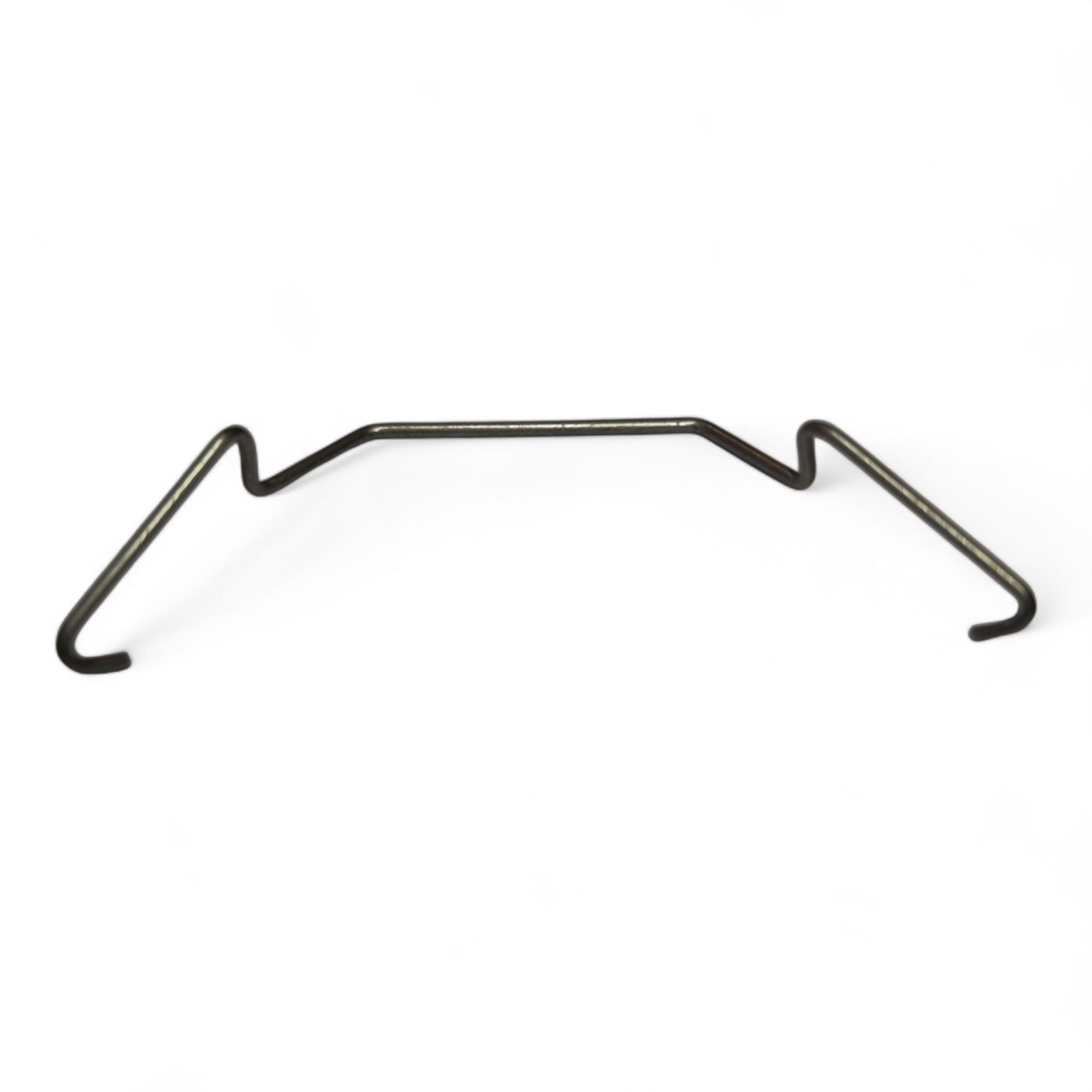

The wire guide clip universal is used for attaching wind-wire to the screen profile I and II in shading systems Material: Stainless Steel

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending
