aircraft cable galv. 7x7 3 mm x 500m
A durable aircraft cable for shading systems.Material: Steel Galvanized

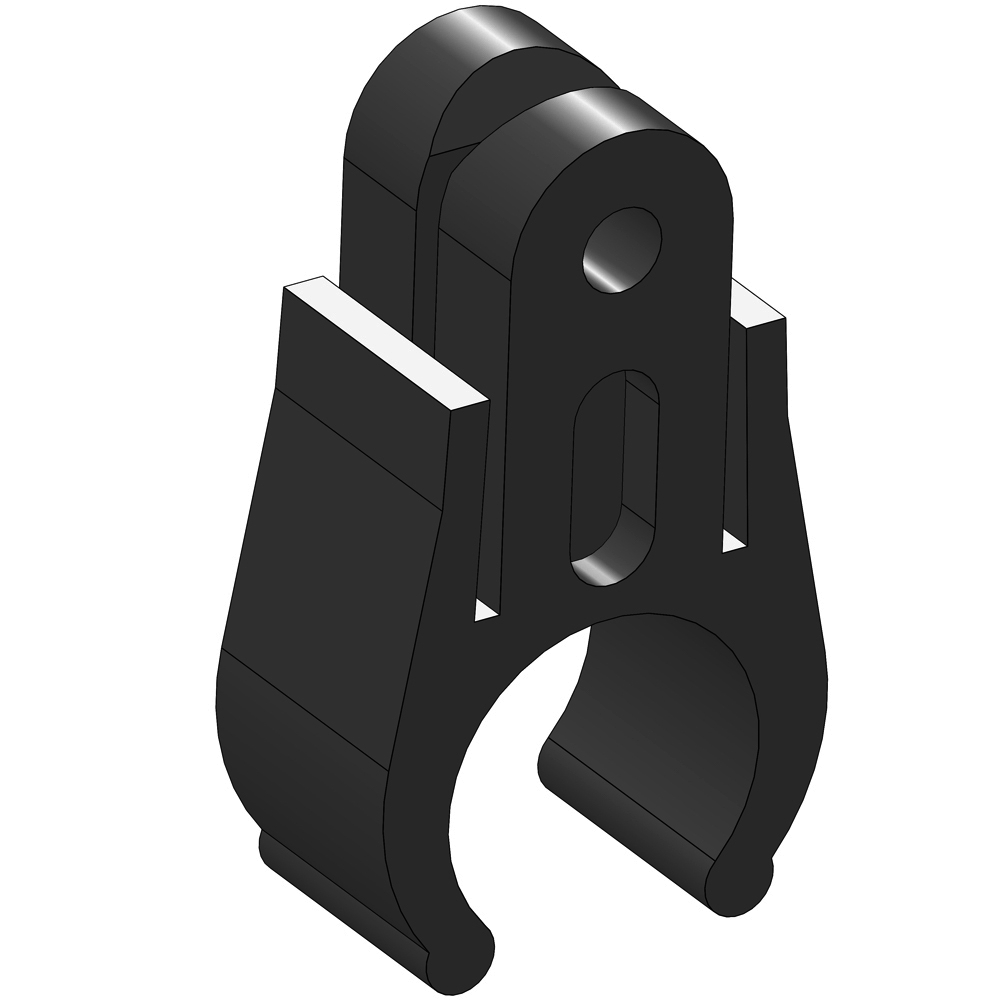

Lead edge cable clip 19 EXT - bolt M4 x 16 excluded
This lead edge cable clip EXT ensures a strong connection of the drive cable and the 19 mm tube. The extended form of this clip allows to avoid the contact between drive cable and fabric, that can cause damage of the fabric.For mounting M 4x16 ISK bolts are needed.

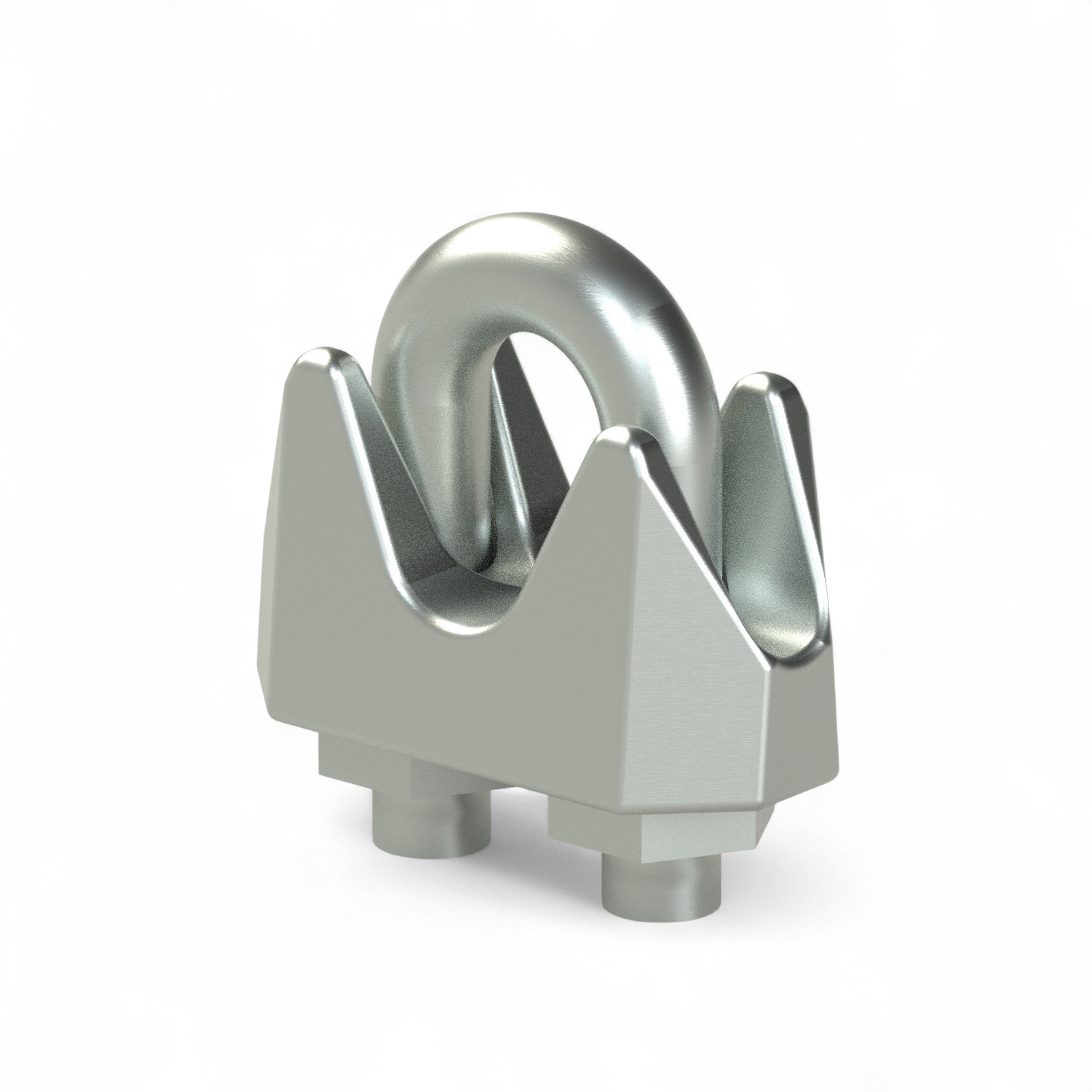

Cable clamp
Is used for the attachement of 2 mm aircraft wire. Material: Steel Galvanized

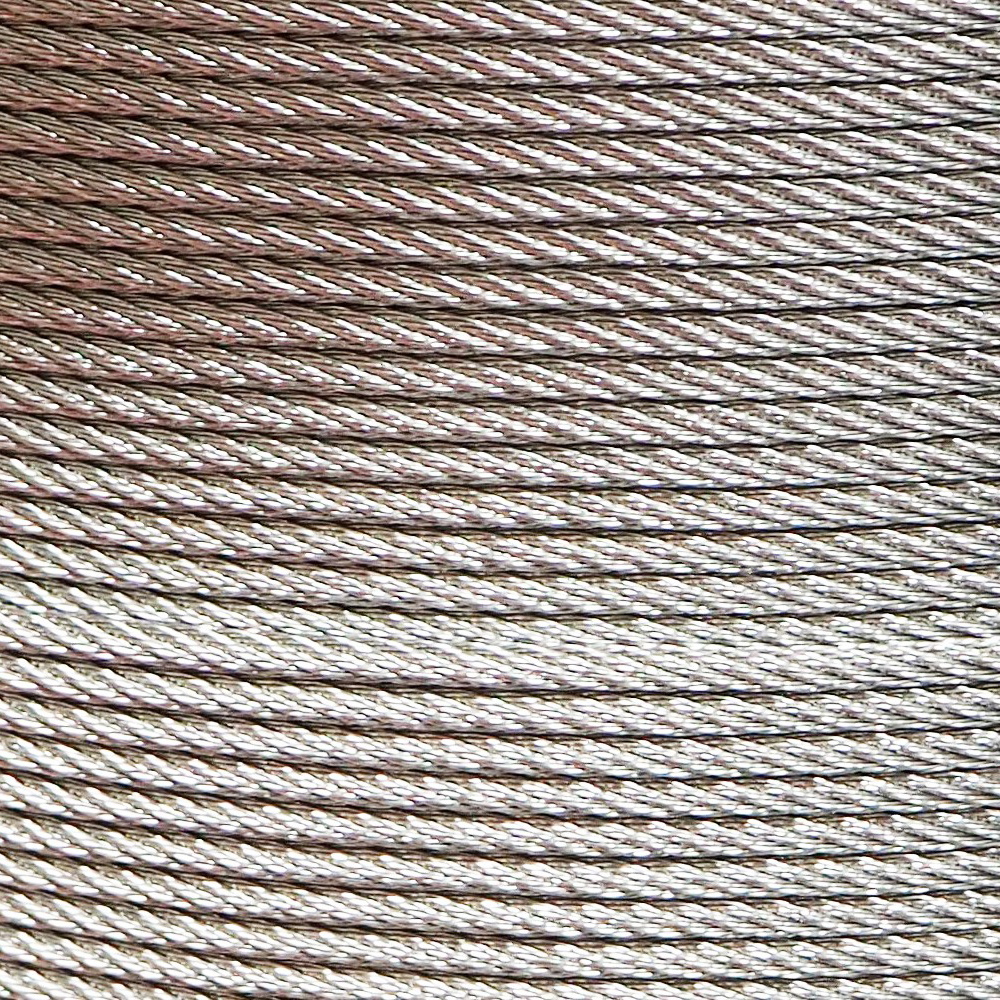

aircraft cable INOX 7x7
A durable, stainless aircraft cable for cable drive shadings systems. Thanks to these characteristics it specially fits external constructions. It is compatible with our slip joint. Tensile strength:Material: Stainless Steel

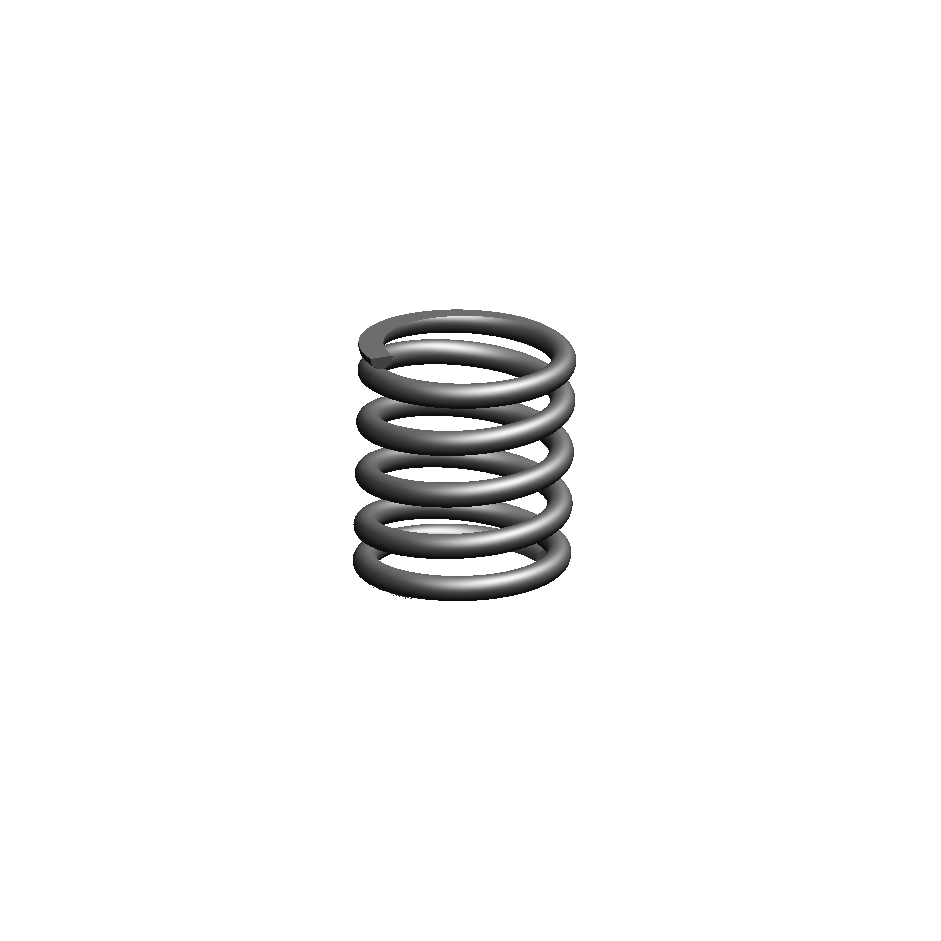

Spring for slip joint
These springs are components for our slip joint. The slip joint comes standard with a soft spring.If one soft spring is not sufficient, you can use up to two hard pieces.

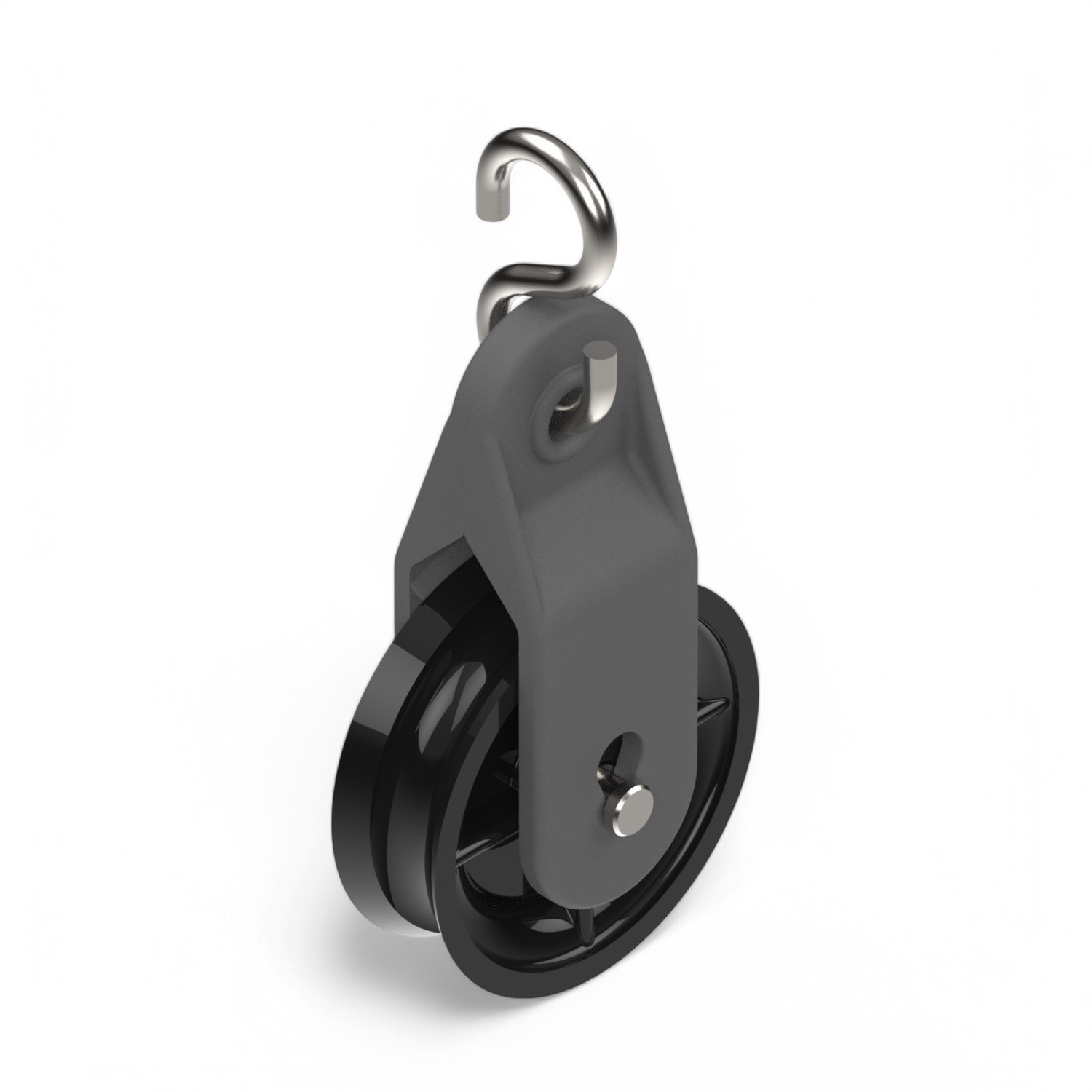

Pulley 40 (TGU) with splint bracket
This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending

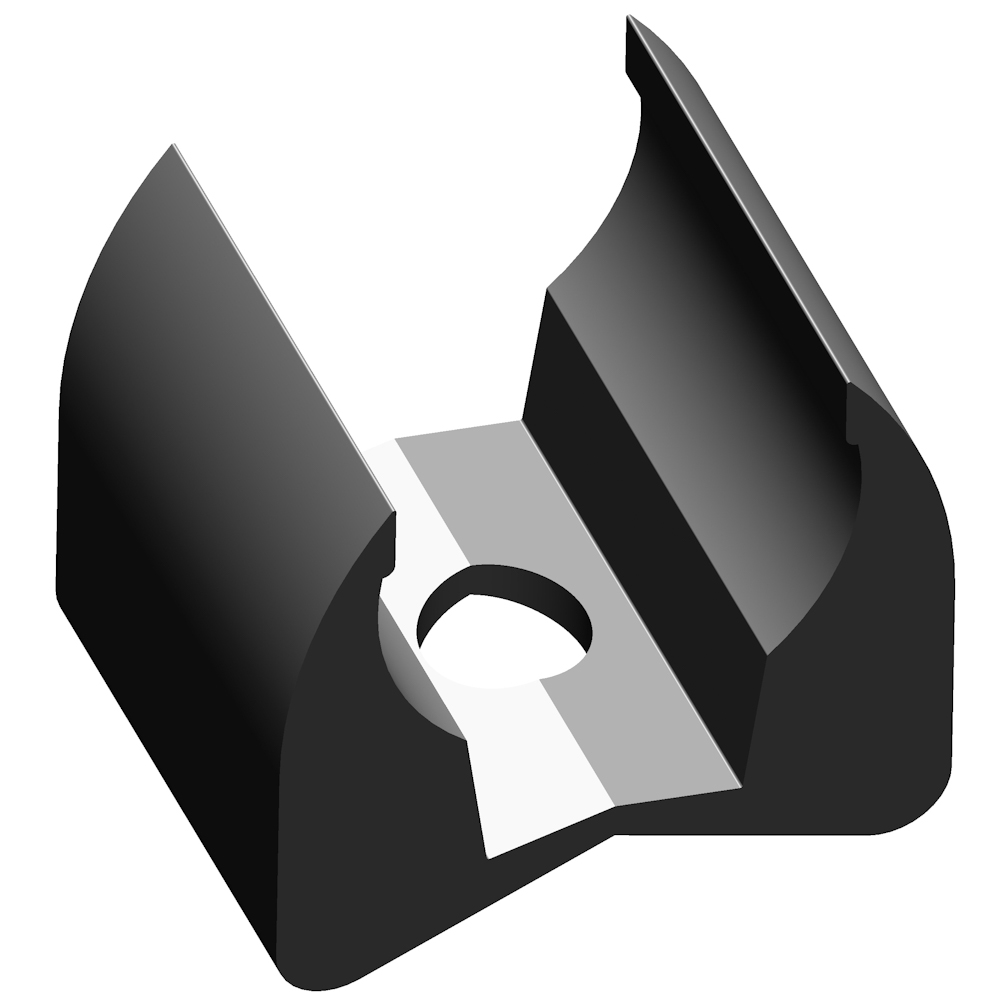

Alu-clamp /19 mm upper part
It is an element of clamp set for tubes 19 mm. In combination with the table clamp it connects push-pull tubes and aluminium tubes in push-pull drive system.Material: aluminium

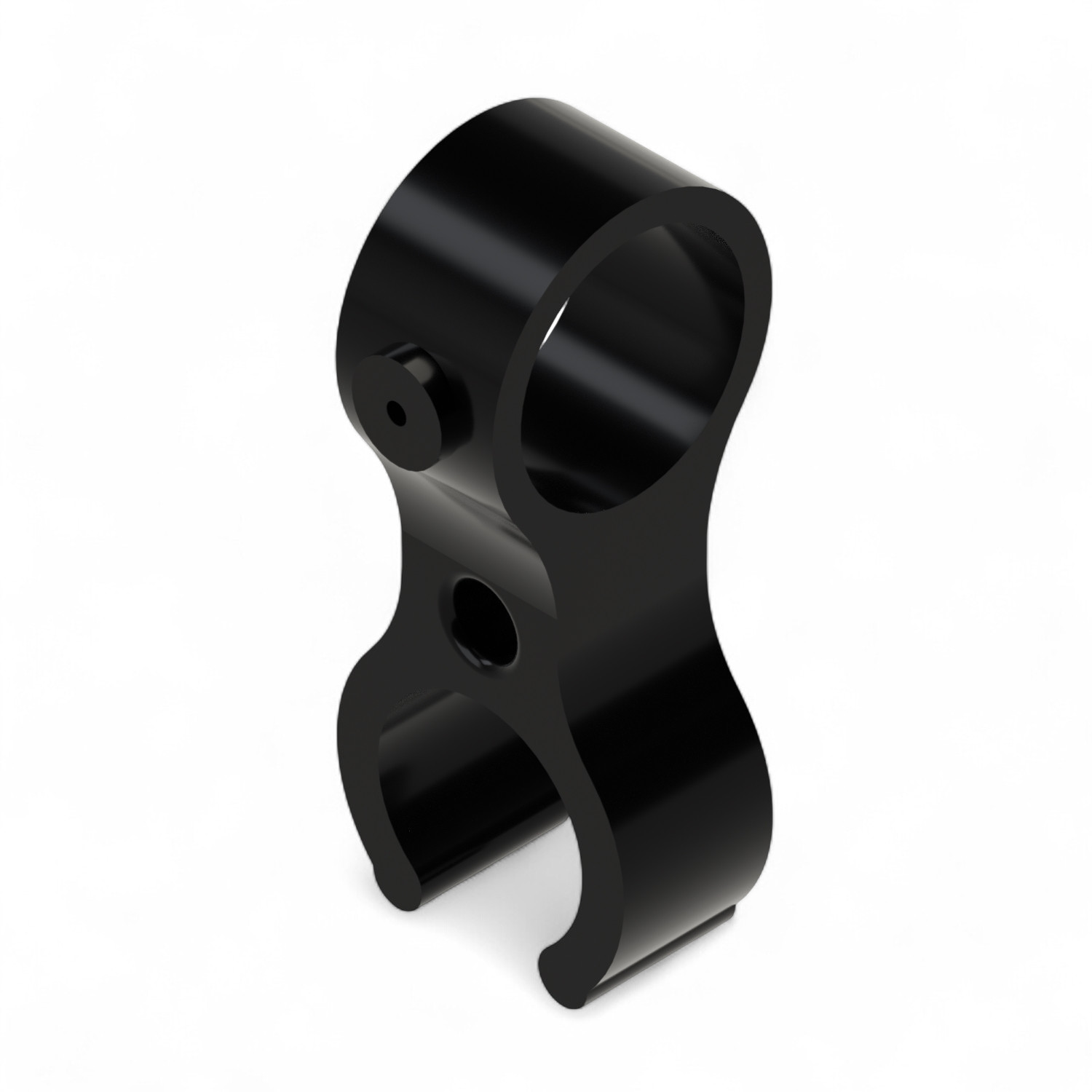

cross clamp 19.20 mm - PU = 200 pcs
Application: Component of the TGU delay set for greenhouse shading systems Material: Steel Installation: Joins the 19 mm fabric guide tube with the 19 mm delay tube Packaging Unit: 200 pcs Cross clamp 19.20 is a key element in the TGU delay set used in shading systems. It securely connects the 19 mm fabric guide tube with the 19 mm delay tube of the delayed rail, ensuring stable and durable attachment.
Lead edge cable clip 19 - with cloth retainer - PU = 20 pcs
Application: Connects 19 mm aluminum pipes to the drive cable in laid shading systems Material: Steel Feature: Integrated cloth retainer bracket supports fabric return movement Packaging Unit: 20 pcs Lead edge cable clip 19 – with cloth retainer is a robust steel connector used in laid shading systems for greenhouses. It enables secure fastening between 19 mm aluminum tubes and the drive cable. The integrated cloth retainer ensures reliable retraction of the shading fabric, maintaining consistent guidance and performance during system operation.

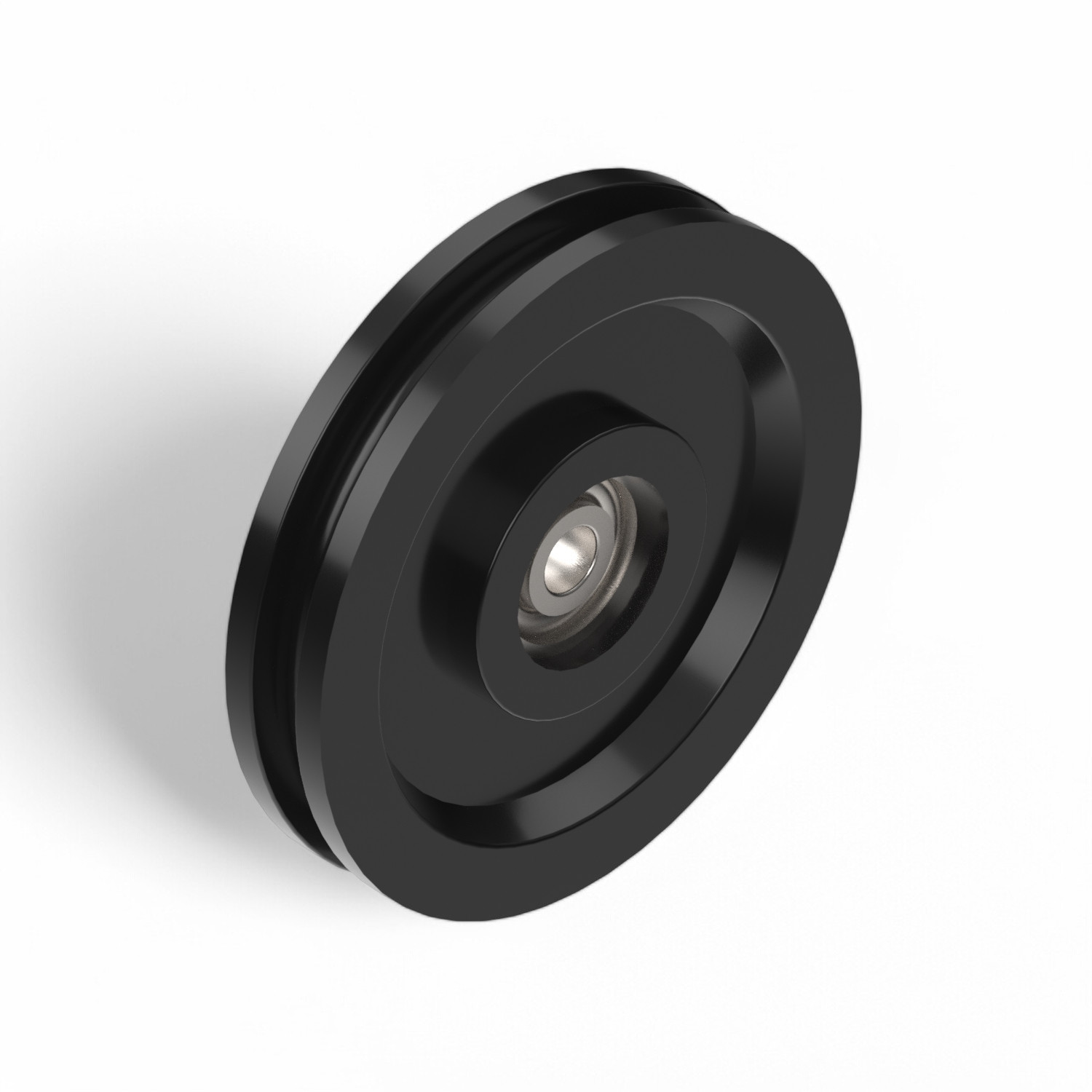

cable pulley 62.52.6 - ball bearing
Cable pulley made of high impact resistant plastic with a diameter of 57 mm for various systems with cable drive. The pulley can also be used for other purposes such as: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 57 mmDustproof ball-bearing For able and wire with a maximum diameter of 4 mmComaptible with 6 mm bolts

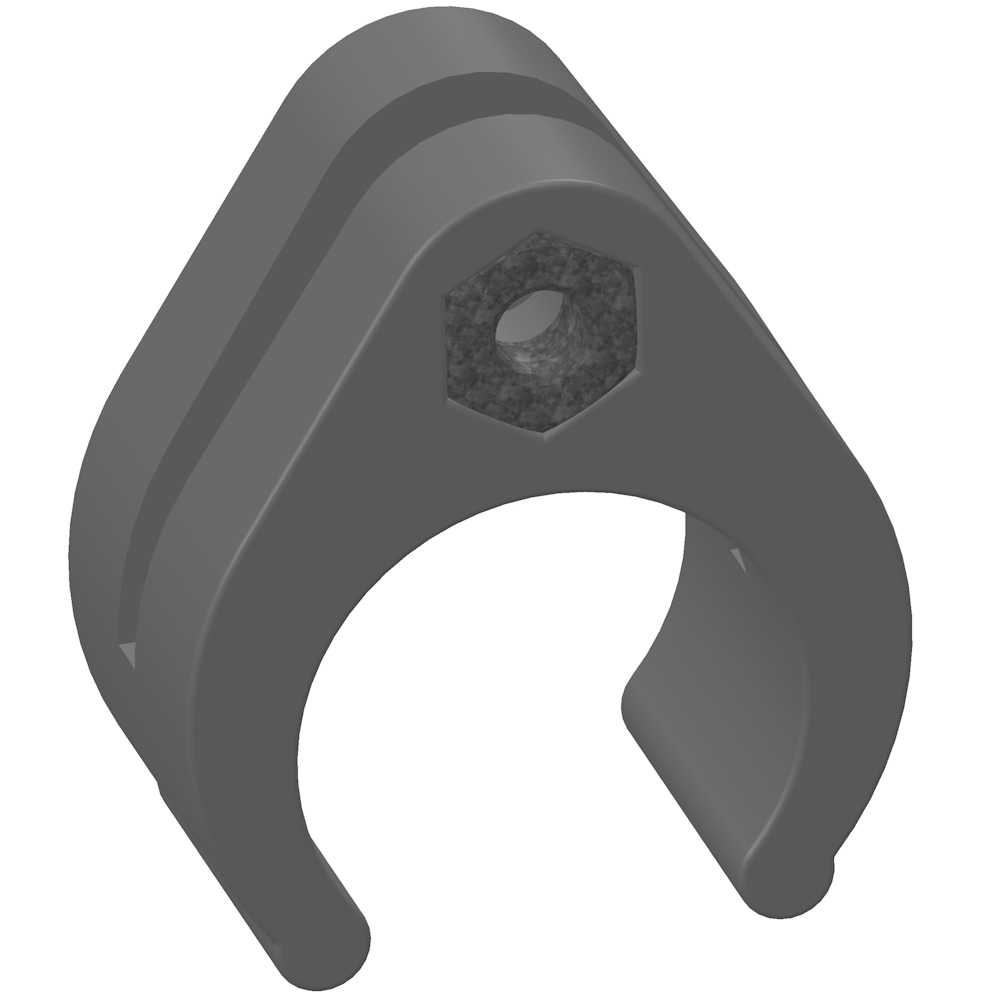

Lead edge cable clip S 19
This lead edge cable clip S 19 ensures a firm connection of the drive cable and the 19 mm tube. For mounting M 4x16 ISK bolts are needed.

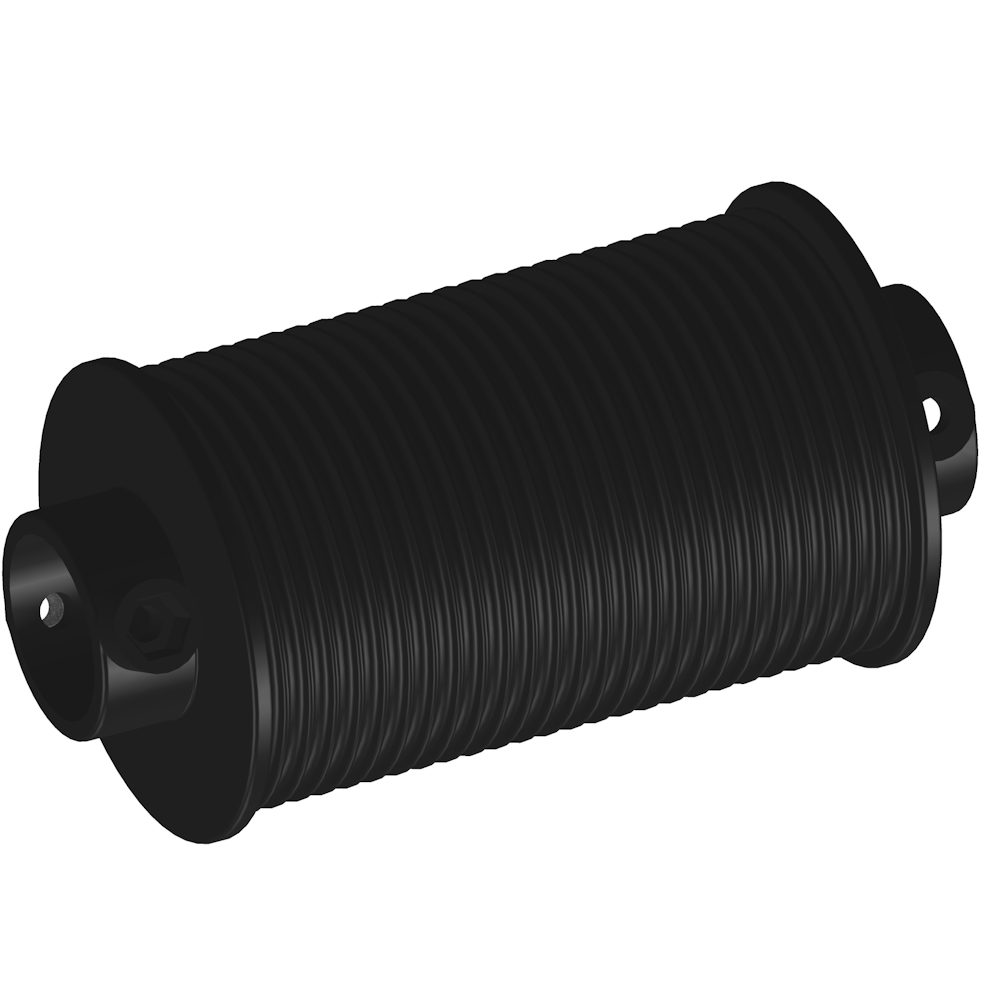

Cable drum 1" - type I - Motion range 570 cm without hardware
Diese Seiltrommel ermöglicht durch die Vorkerbung im Kunststoff ein geordnetes Aufwickeln und damit einen gleichmäßigen Laufweg des Drahtseils in der Schattieranlage. Eine Friktion der aufgewickelten Drähte und Seile wird verhindert.Der zweischalige Aufbau der Seiltrommel ermöglicht eine nachträgliche Installation auf der Antriebswelle. Verbunden werden die beiden Schalen mit zwei mitgelieferten Achsschrauben. Diese fixieren die Seiltrommel auch auf der Welle. Die Trommel ist aus schlagfestem Kunststoff - dieses Material schont das Drahtseil und erhöht seine Lebensdauer. Geeignet für Drahtseile mit einem Durchmesser bis 3 mm Geeignet für Antriebswellen von 34 mmKapazität der Seiltrommel: fasst bis zu 5,70 m SeilMaterial: Seiltrommel: schlagfester Kunststoff

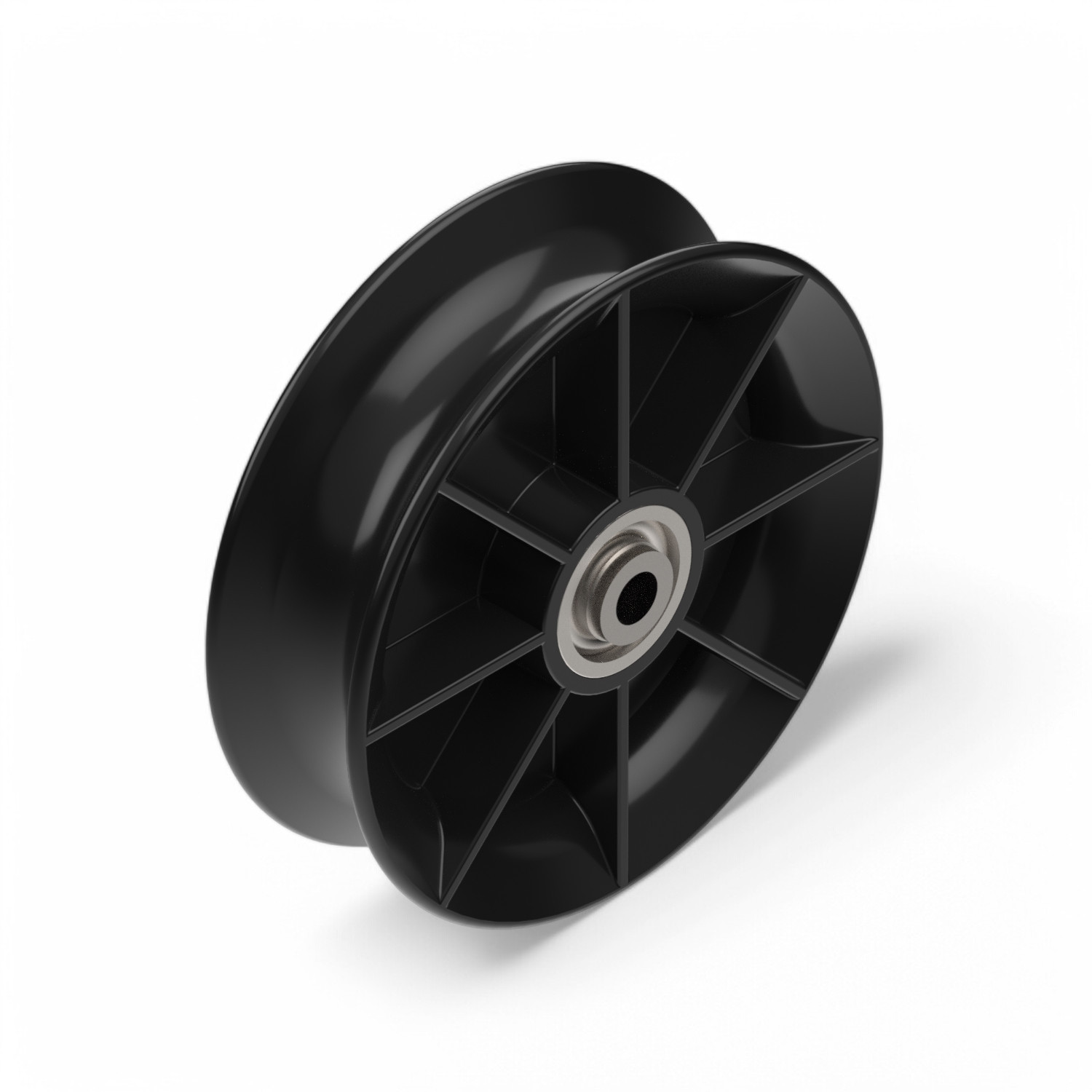

Cable pulley 100 for wires until 20 mm
Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The assembly is ideally done with the enclosed spacers. To avoid damaging the bearing, a stop nut should be used and the screw should not be tightened too much during assembly.Impact resistant pulleyTwo ball bearings with enclosed spacersLoad capacity: up to 200 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 35 mmRope diameter: up to Ø 20 mm
Cable pulley 100, double ball bearing for wires until 9 mm
Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

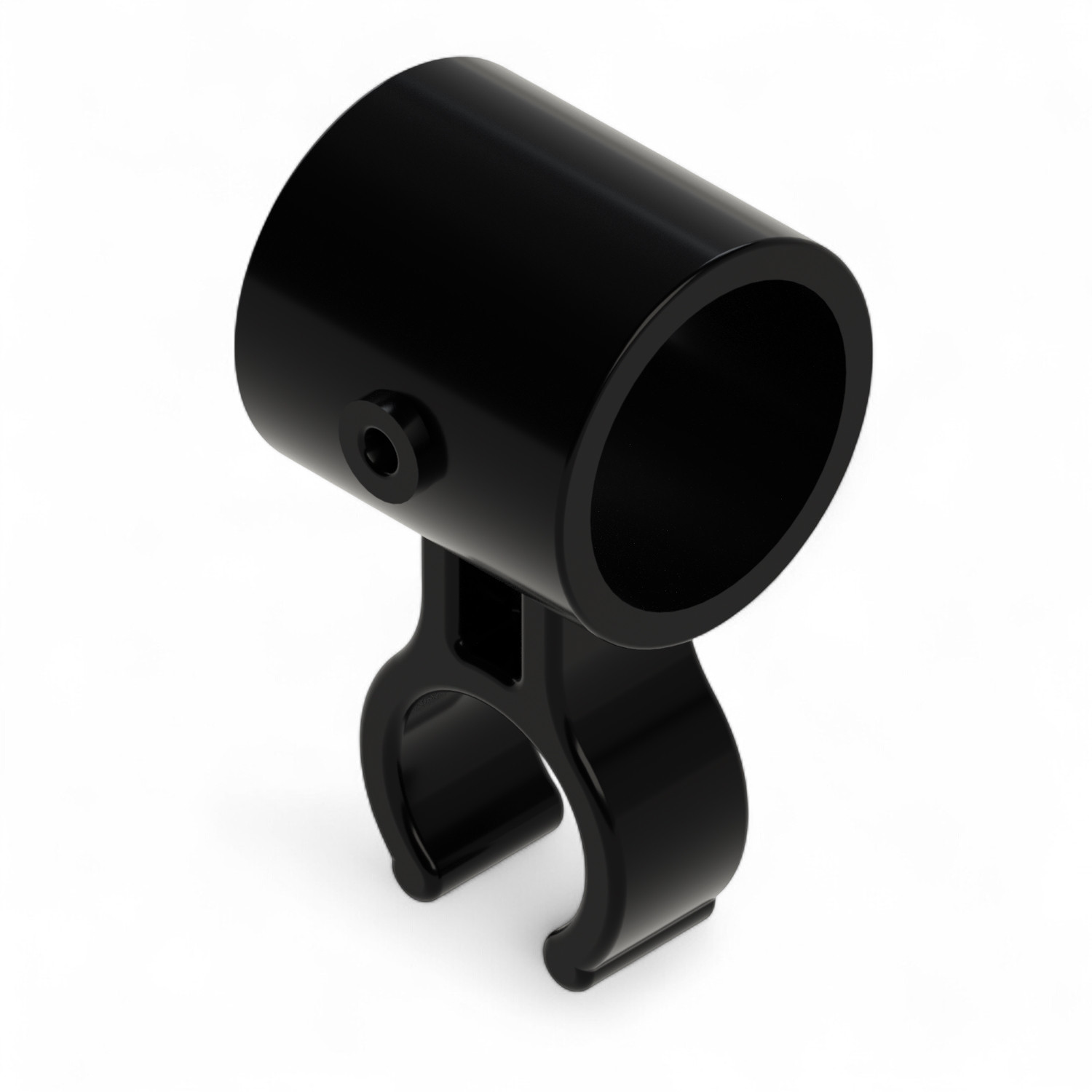

Slide 19-25 mm
The slide 19.25 is part of the TGU tube mount reduction set for shading systems. It connects the 19 mm screen conducting tube with the 19 mm delay tube.
Alu-clamp 35 mm - completed with bolt M6 x 35
Aluminium clamps 19 and 26 mm connect drive cable and 19 mm tubes, which carry screens in cable drive shading systems.

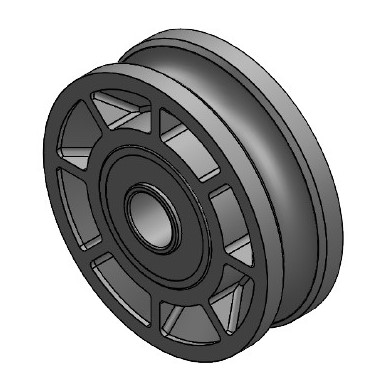

Cable pulley 52/8 - Ball bearing or Plain bearing
Schlagfeste Kunststoff-Seilrolle; Durchmesser 52 mm Maximale Traglast: 150 Kg eingepresste Gleitlager sorgen für eine stabilen Lauf Für Seildurchmesser bis 8 mm Made in Germany

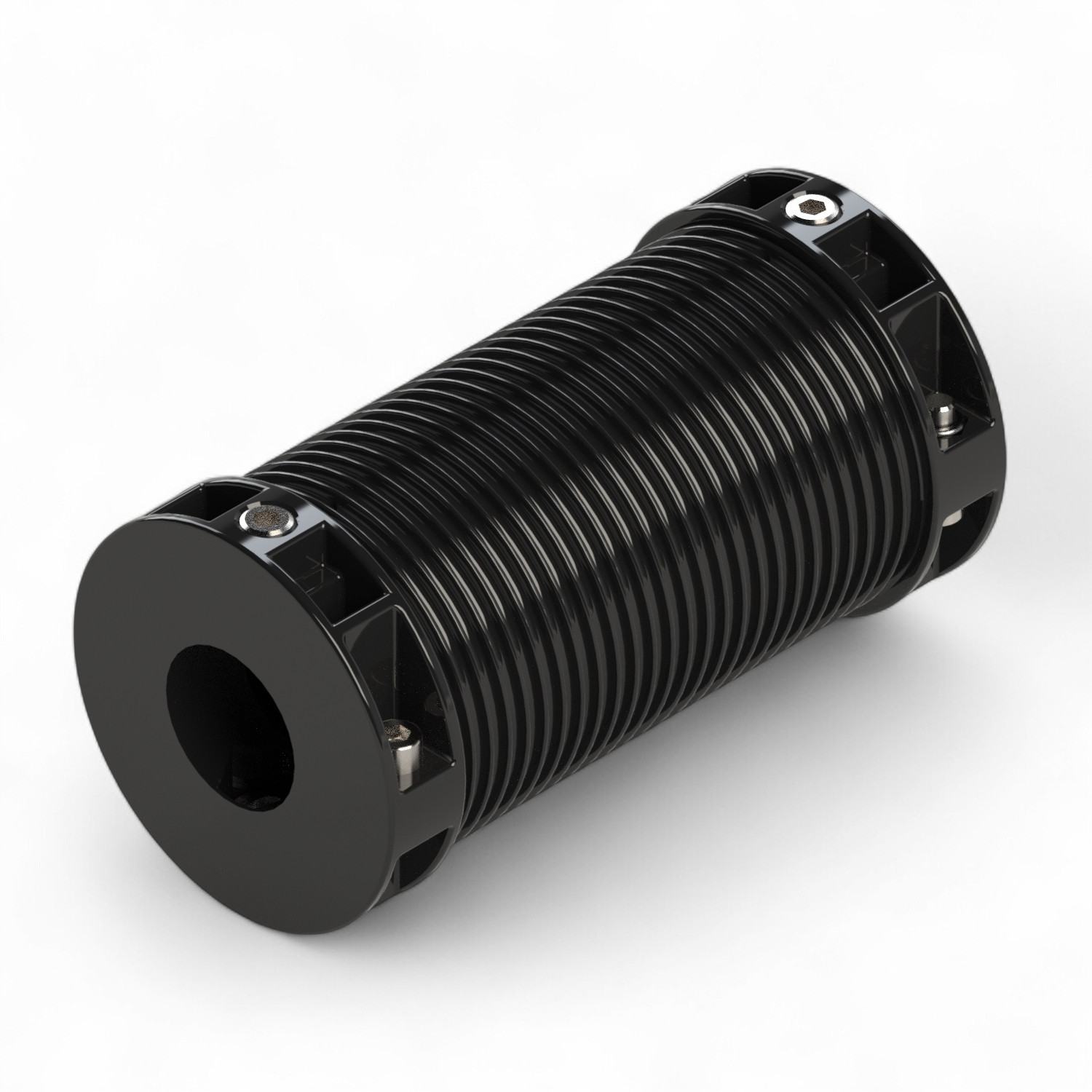

Cable drum 1" - Typ II for tube 33,4 mm - Motion range 570 cm
This grooved cable drum ensures friction free, well-ordered winding and therefore a smooth movement of driving cable in shading systems .Two-halves model of the drum makes it possible to fasten it onto drive shaft subsequently. The two halves are connected with four screws included intothe set. To install the drum onto the drive shaft a special headless screw is needed.The cable drum is made of high-impact resistant plastic, that is friendly to cables and therefore increases their durability. Can be used with cords with a diameter up to 3 mm For 34 mm drive shaftsCapacity of cable drum: up to 5,70 mMaterial:Cable drum: impact resistant plastic

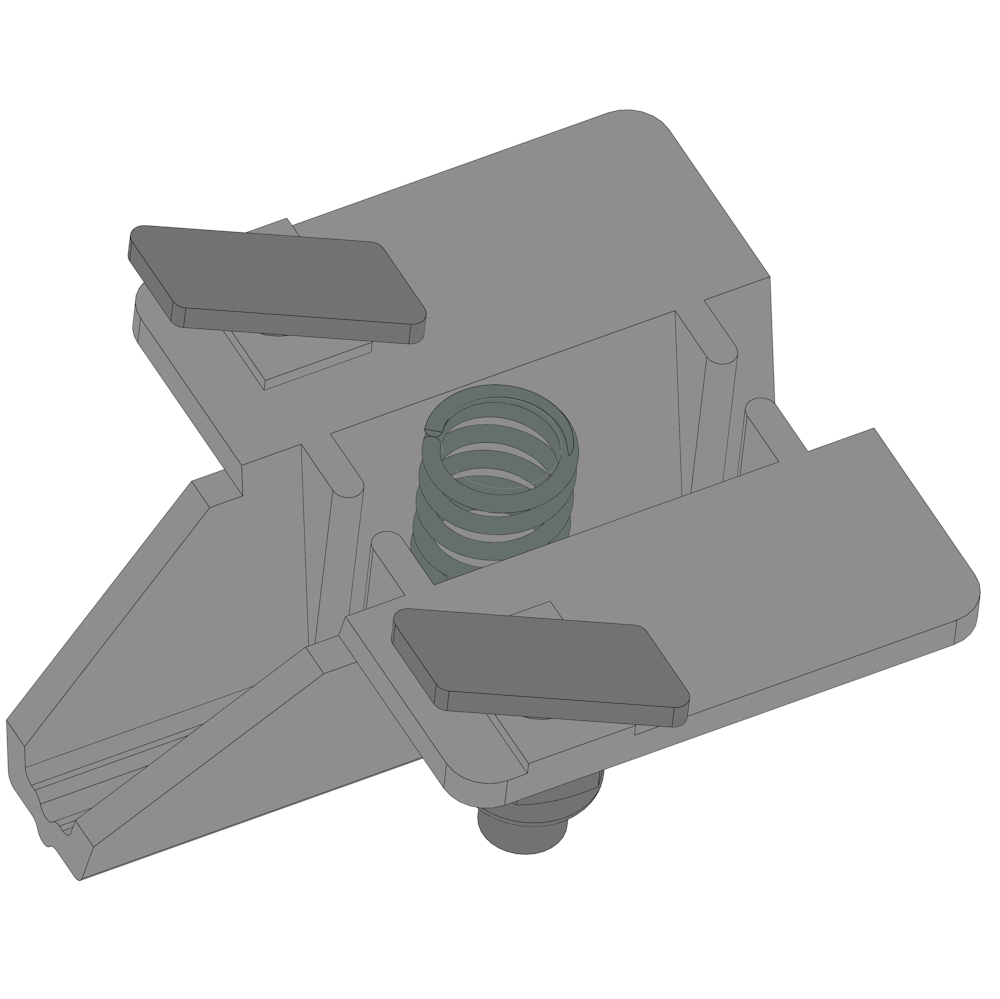

Slip joint incl. 1 spring f. screenprofil
This slip joint gently connects the drive cable with 19 mm aluminium tubes in shading systems. In this model the slipping clutch is realized via a slip joint technique, which protect the drive cable. This technique is especially suitable for greenhouses, where heat can cause stretching of their constructive components, for example, aluminium rain pipes. We deliver the slip joint including bolts, nuts as well as spring and cover plate for 19 mm tubes.
KST-Lager 1" 50/50
This offset bearing has been developed for suspended shading systems with gable end drive. It brings the drive shaft to an optimal position and as a support point enables its rotation. The product has been built to hold trailing load. Material: High impact reistant plastic For mounting you will need the following parts: - M 8 x 70 bolt - M8 nyloc nut

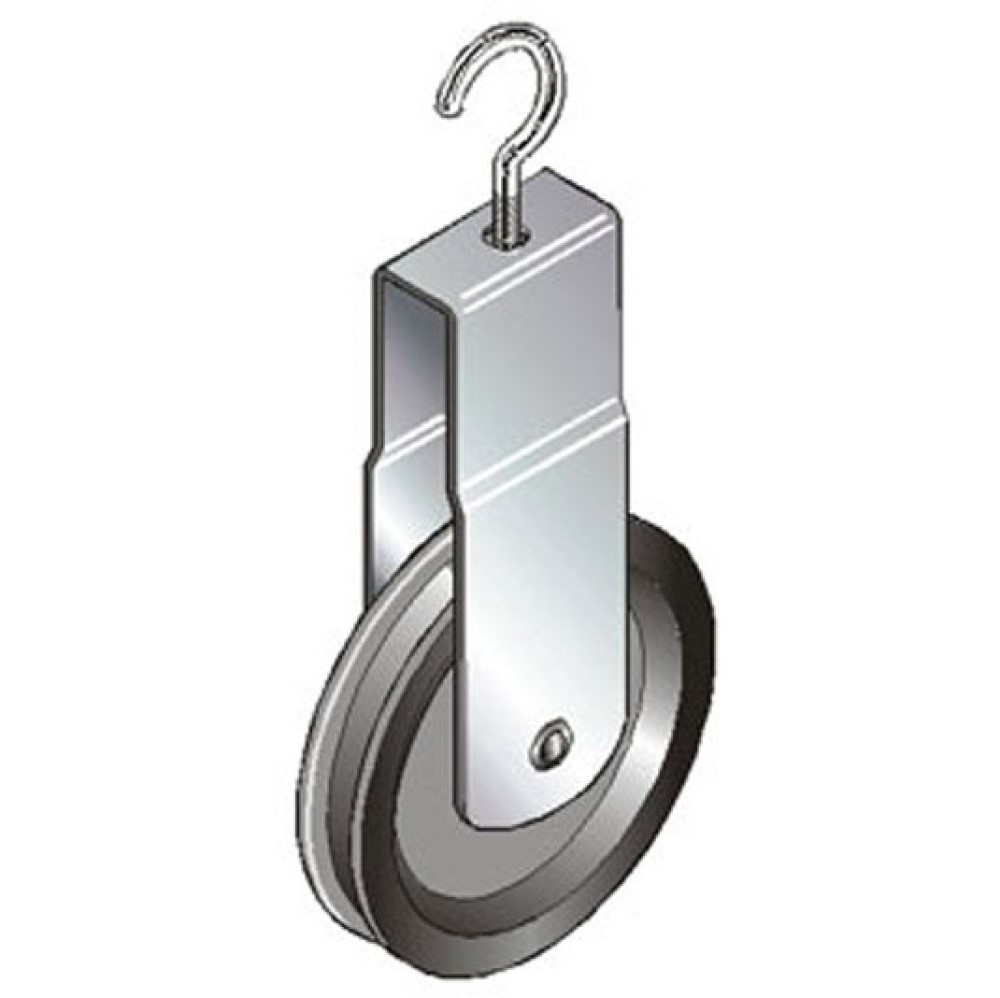

Pulley with hook - PU = 5 pcs
Application: Guide pulley for tensioned wire ropes in greenhouses Material: Rugged construction for extended service life Installation: Not suitable for retrofitting on already tensioned wires Alternative: TGU Awning Pulley 40 for retrofitting Packaging Unit: 5 pieces The Awning Pulley with Hook is purpose-built to guide tensioned wire ropes within greenhouse structures. It ensures smooth movement and reliable support. Please note: this pulley is not suitable for post-installation on pre-tensioned cables. For retrofitting, we recommend the TGU Awning Pulley 40. With high-quality materials and robust design, this pulley provides the stability and longevity needed for continuous operation in professional greenhouse applications.

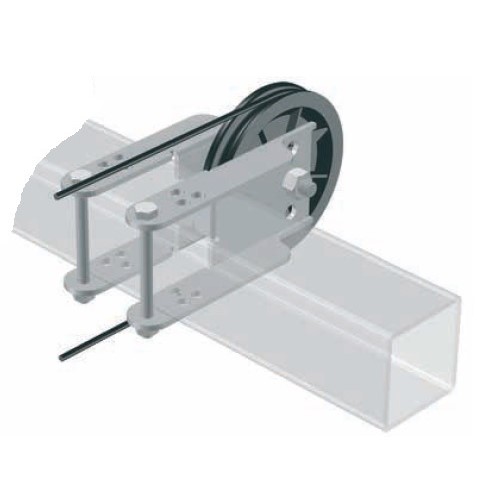

Cable pulley 90 with universal clamp 50.50
This pulley can be mounted on square tubes in the shading system. Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 90 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 90 mm H pulley is pre-mounted in such a way that it can be used for rear mounting. The pulley can be used for cables with a diameter up to 8 mm Suits the following square tubes: 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm Material: Pulley: high impact resistant plasticBracket: Galvanized steel

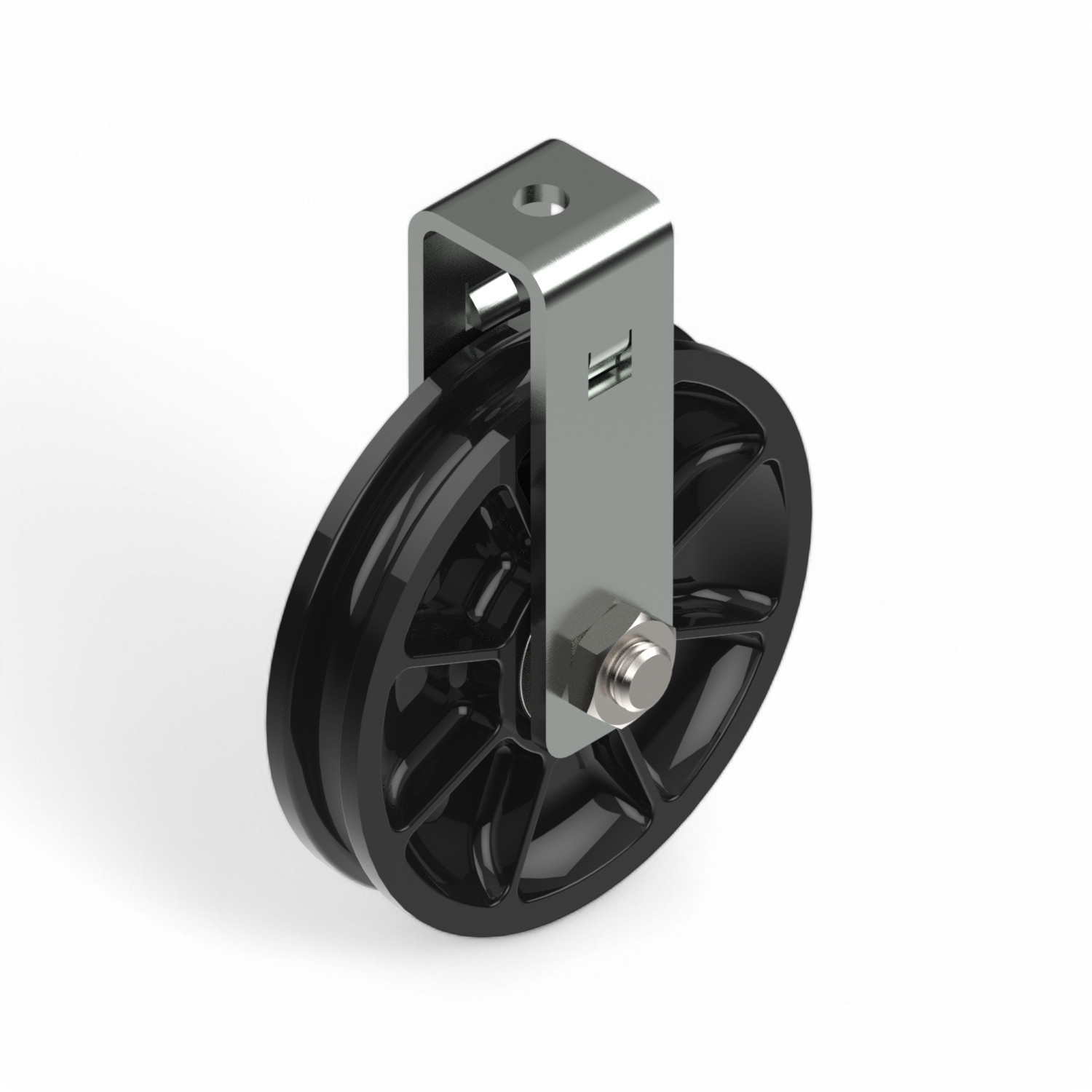

Cable Pulley 90/8 with clamp - double ball bearing
Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmTotal height: 115,75 mmTotal width: 41 mmRope diameter: up to Ø 8 mmFastening with M8 srew / bolt

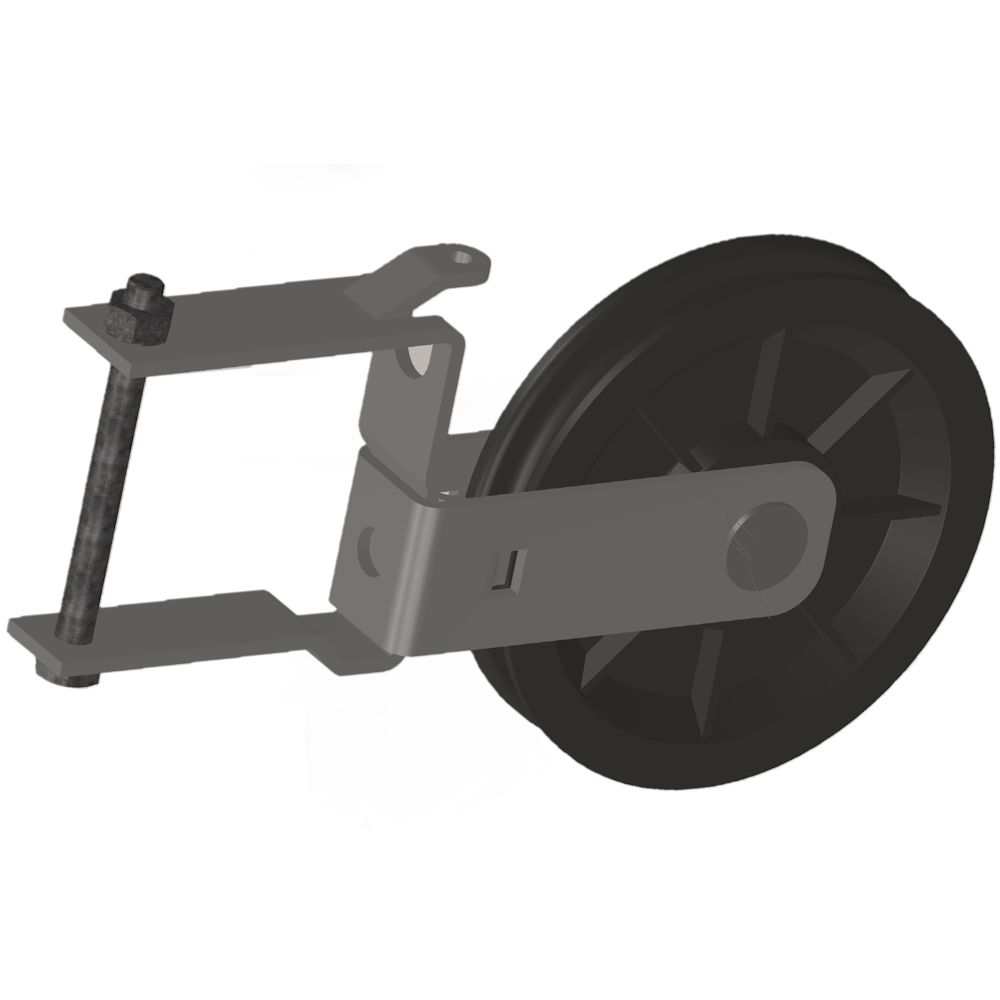

Cable pulley with clamp 2.2
This 90 mm pulley with clamp can be attached to square tubes. Due to cable tension a centred mounting position is ensured.The pulley can be used for cables with a diameter up to 3 mm. Suits the following square tubes: 50 x 50 mmMaterial:Pulley: high impact resistant plasticClamp: Galvanized steel For screwing you will need:- M 6 x 65 bolt- M 6 nut
