Is used for the attachement of 2 mm aircraft wire. Material: Steel Galvanized

With these crints poly wire is attached securely to the support wire bracket universal and afterwards it gets bolted. Material: Steel, galvanized

Our compact wire tigthener is very helpful by installing wires in narrow areas of shading systems and other constructions. The tightener provides more stable position of your cables and wires ,than other tigthener do.(Fixing only M6)

With these crints poly wire is attached securely to the support wire bracket universal and afterwards it gets bolted. Material: Steel, galvanized

This 10 x 16 mm energy chain was made to protect cable in all kind of roll up screens. Besides that the energy chain enables a controlled unroll movement. This energy chain is easy to connect and disconnect - even while the cable is already inserted. This saves time during handling and offers a secure cable protection. Out of greenhouses there are many applications and industries in which the energy chain gets used. Commonly it can be used to protect every kind of flexible cable and wire. The energy chain is provided in pieces of 204 mm each.Material: Plastic

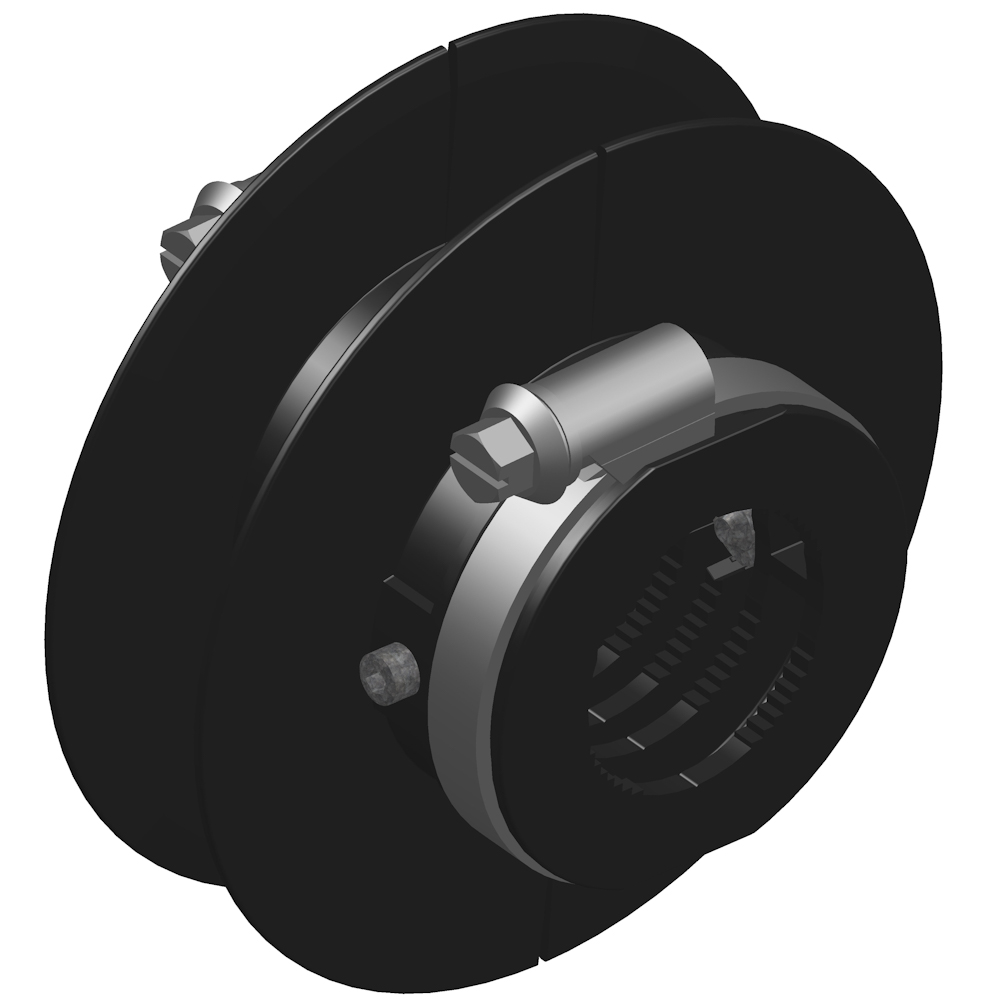

The vent pulley unit provides guided and controlled rolling-up of the ribbon in side ventilations with drop down fabrics. Thanks to the two-shell construction a later mounting in the installation is possible by attaching the pulley on both sides of the drive shaft with two hose clamps. Additonally it can be fixed onto the shaft with the included bolt. The vent pulley can be used for tubes with a diameter from 32 to 34 mm.Material: Plastic

This is a standard motor guide that works as a receptacle for the 10 x 10 mm mounting pin of the tube motors RB 50 and FL 50. It moves the tube motor on the guiding profile. The motor guide is equipped with a mounting bracket for a mounting pin 10 x 10. Material: Hot-galvanized steel

This universal wire-tightener gets used for tightening of all cords and wires in shading systems and other constructions.

Ridder Art.-Nr. 501094

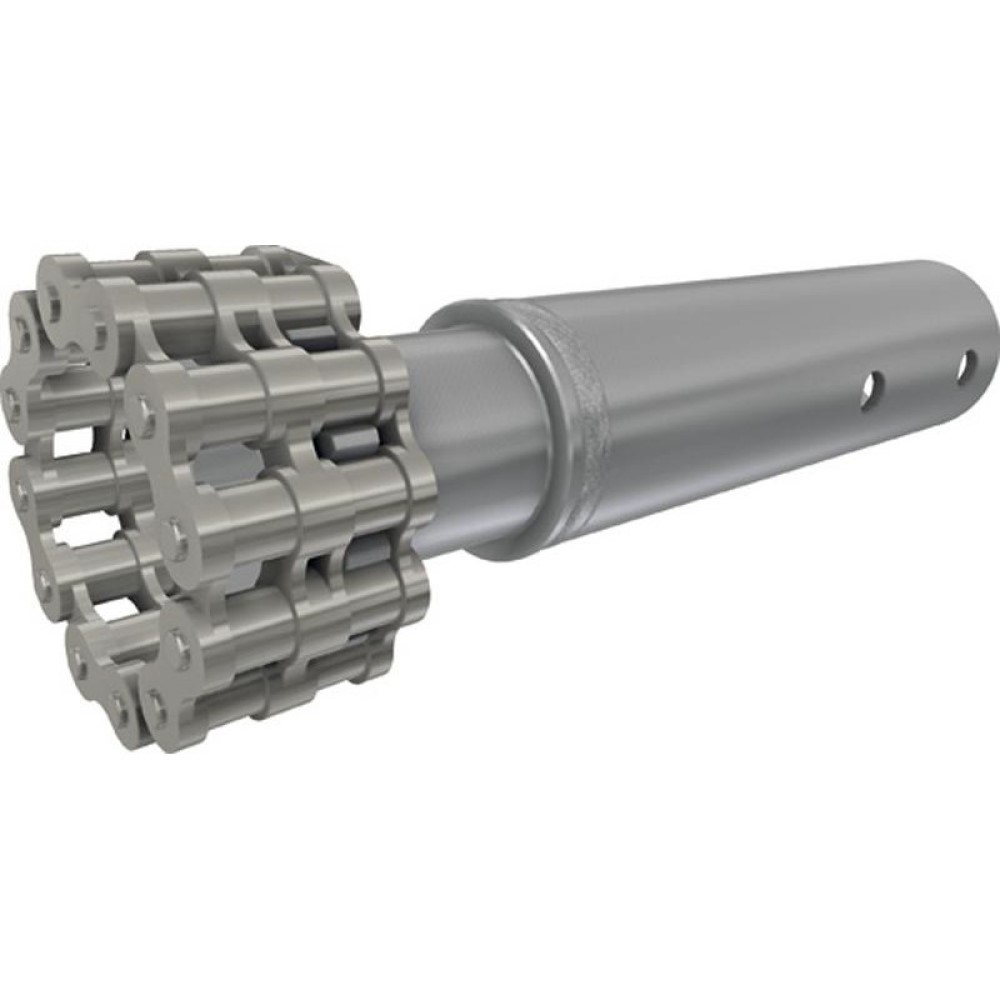

Chain coupling connects motor gearbox chain wheel with a drive shaft and provides higher flexibility of the driving system.The coupling is equipped with a pre punched receptacle for the drive shaft, in which it can be easily inserted. The mounter benefits from an easier and quicker mounting compared to the usual welding. The duplex chain of this coupling enables the drive shaft to move in the line. Such a structure creates the higher flexibility of this drive system during dynamic external influences and during movements within the greenhouse construction. Ridder Art.-Nr.: 590001

A TGU durable and robust tubular motor can be mounted onto 50 mm and 63 mm roll up tubes.The motor has a voltage of 230 V for European market. A variant of 120V for the American market is also available on request.The limit switches can be easily adjusted from the outside with an Allen key.The tubular motor is delivered with a 10x10 mounting bracket to be set onto the motor guide.

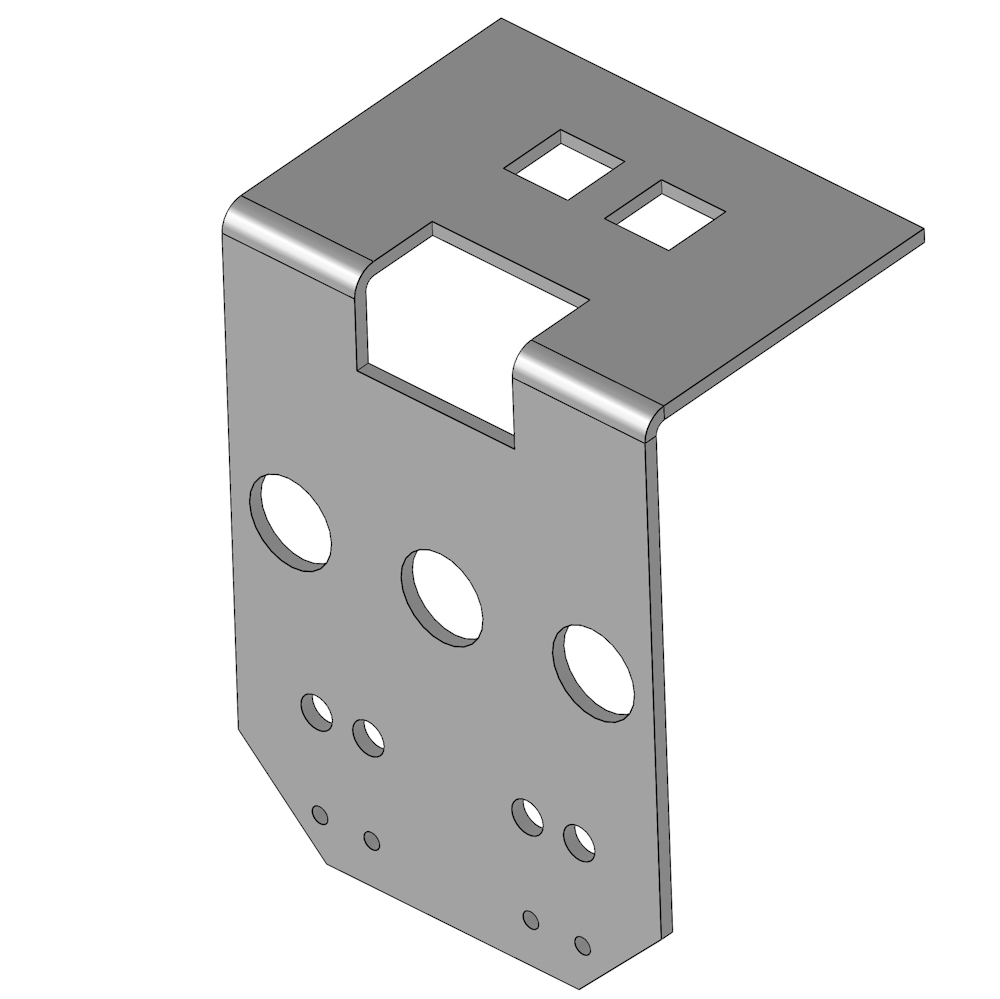

Our roll up bracket is used to attach the energy chains to your motor guide.The bracket has pre punched mounting holes for various directions of fixation. Material: Galvanized steel

The guide profile for tubular motors in conjunction with our roller carriage ensures, that your tubular motor is guided straight in roll up systems.

Ridder Art-Nr.: 550032

This mounting bracket carries the 10 x 10 mounting pin of the tube motor. Therefore it gets installed at the left or the right side of the motor guide - depending of the position of the tube motor.Material: Steel

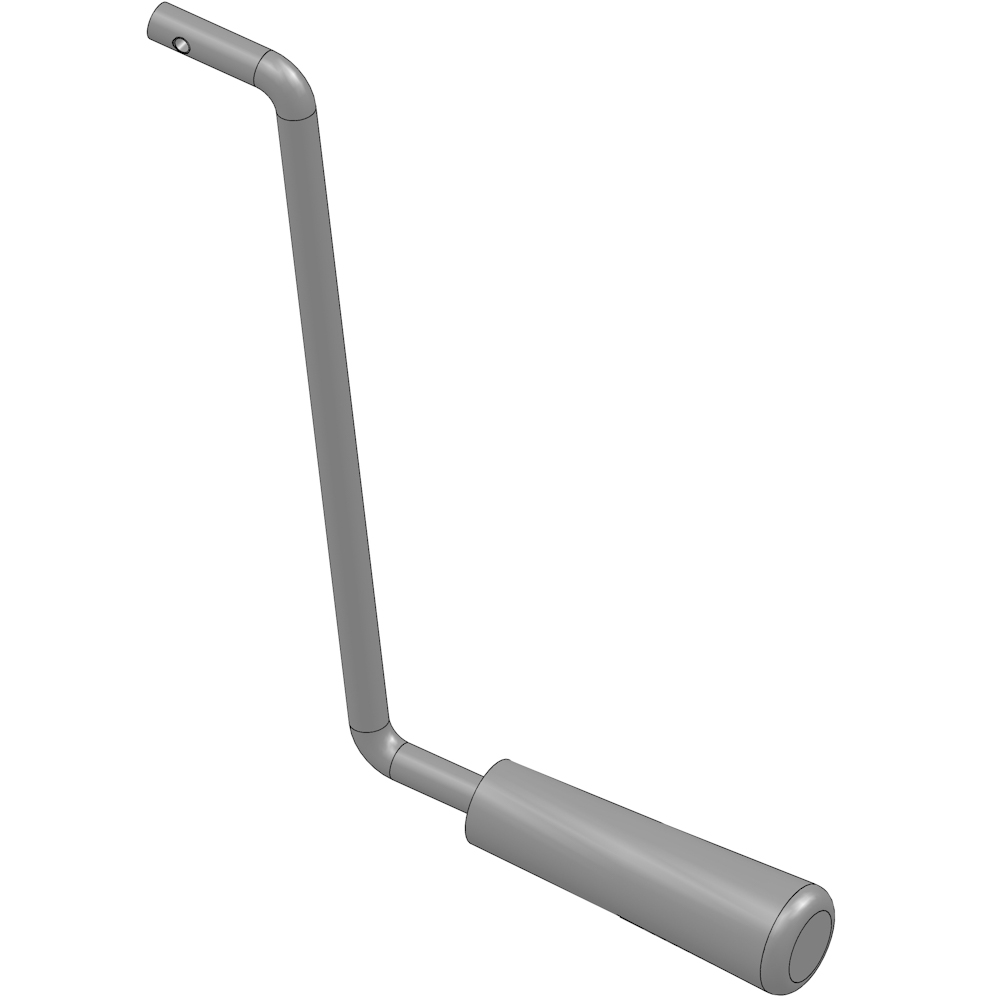

A short handle for direct operating the manual drive. The handle is good for low installated manual drive.

The chain coupling connects an existing chain wheel at the gear motor with a drive shaft and help tos to create a more flexible drive system. The coupling gets heat sealed on top of the drive shaft. The double chain of this coupling enables the drive shaft to move in the line. This construction creates the higher flexibility of this drive system during dynamic external influences and during movements within the greenhouse construction. Material: Galvanized steelRidder Art.-Nr.: 590016

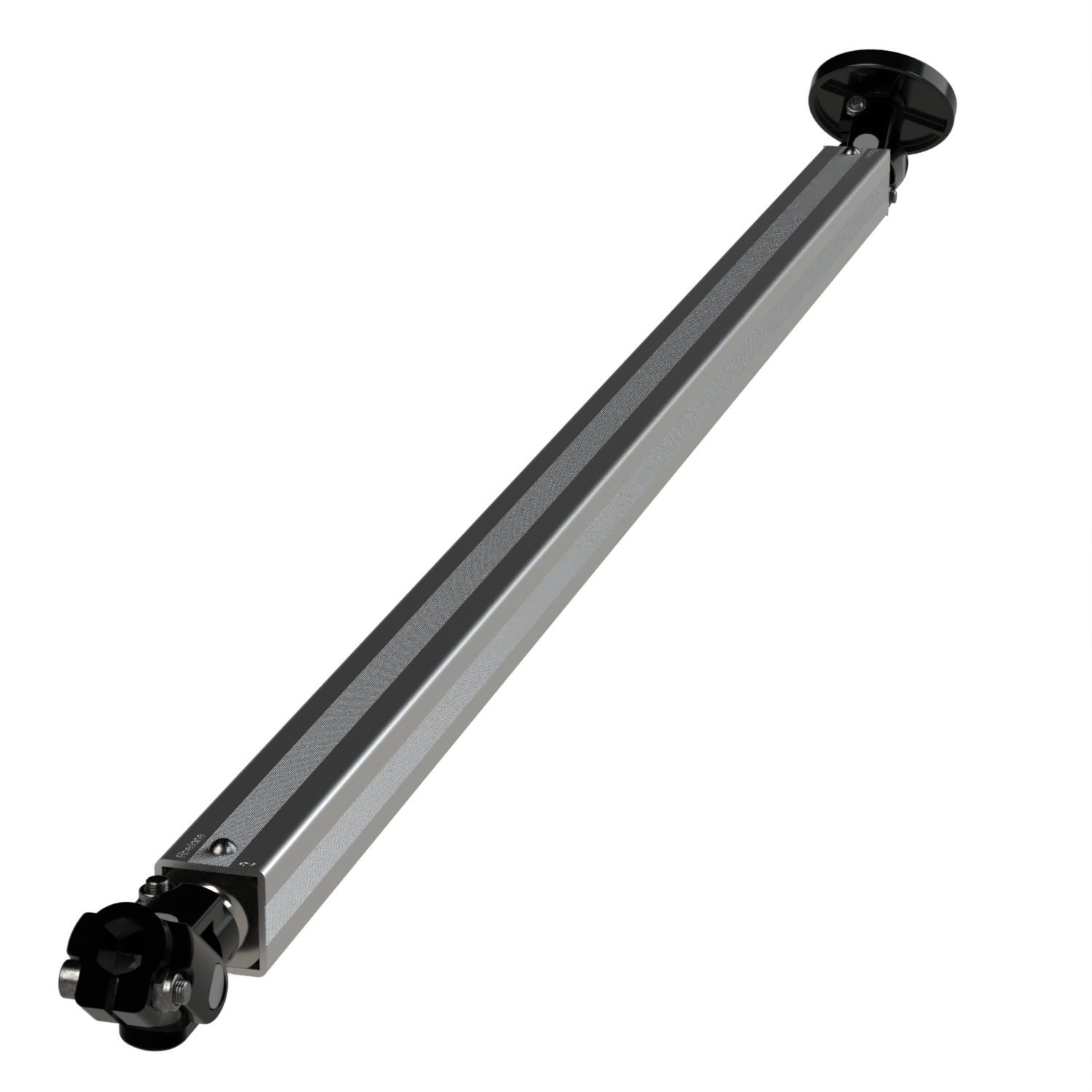

This manual gear perfectly fits the needs of smaller shading and ventilation systems. It is equipped with a coupling which can be directly bolted to the TGU telescopic shaft or another drive shaft. The drive gets delivered with a matching hand-crank. On your request this gear can be also delivered with an extended hand-crank or with a hook for drives that are placed very high and therefore can not be reached directly. Combined with our chain wheel even gears that are placed very high can be reached.

Chain coupling connects motor gearbox chain wheel with a drive shaft and provides higher flexibility of the driving system.The coupling gets welded to drive shaft.The duplex chain of this coupling enables the drive shaft to move in the line. Such a structure creates the higher flexibility of this drive system during dynamic external influences and during movements within the greenhouse construction. Material: galvanized steelRidder Art.-Nr.: 590000

Ridder Art.-Nr. 417636

    150 Nm    400 V 3~, 50 Hz    4,4 Umdrehungen/Minute    0,17 kW    0,90  AmpereExtrem leises, selbsthemmendes Doppel-Schneckengetriebe mit hoher Lebensdauer, wartungsfrei.Universelle Montage durch Standard-Befestigung (Füße abnehmbar) hinten oder optional seitlich links (symmetrisch)!Eingebauter Präzisions-Zahnradendschalter END 20 für 580 Wellenumdrehungen (Mikroschalter in cURus).Zur Verkabelung 7-adriges Kabel verwenden.

Adjusting switch is used to set up the end switches in tube motors RB 50 E+ and RB 120 E+.

    250 Nm    400 V 3~, 50 Hz    4,4 Umdrehungen/Minute    0,30 kW    1,10 AmpereExtrem leises, selbsthemmendes Doppel-Schneckengetriebe mit hoher Lebensdauer, wartungsfrei.Universelle Montage durch Standard-Befestigung (Füße abnehmbar) hinten oder optional seitlich links (symmetrisch)!Eingebauter Präzisions-Zahnradendschalter END 20 für 580 Wellenumdrehungen (Mikroschalter in cURus).Zur Verkabelung 7-adriges Kabel verwenden.
