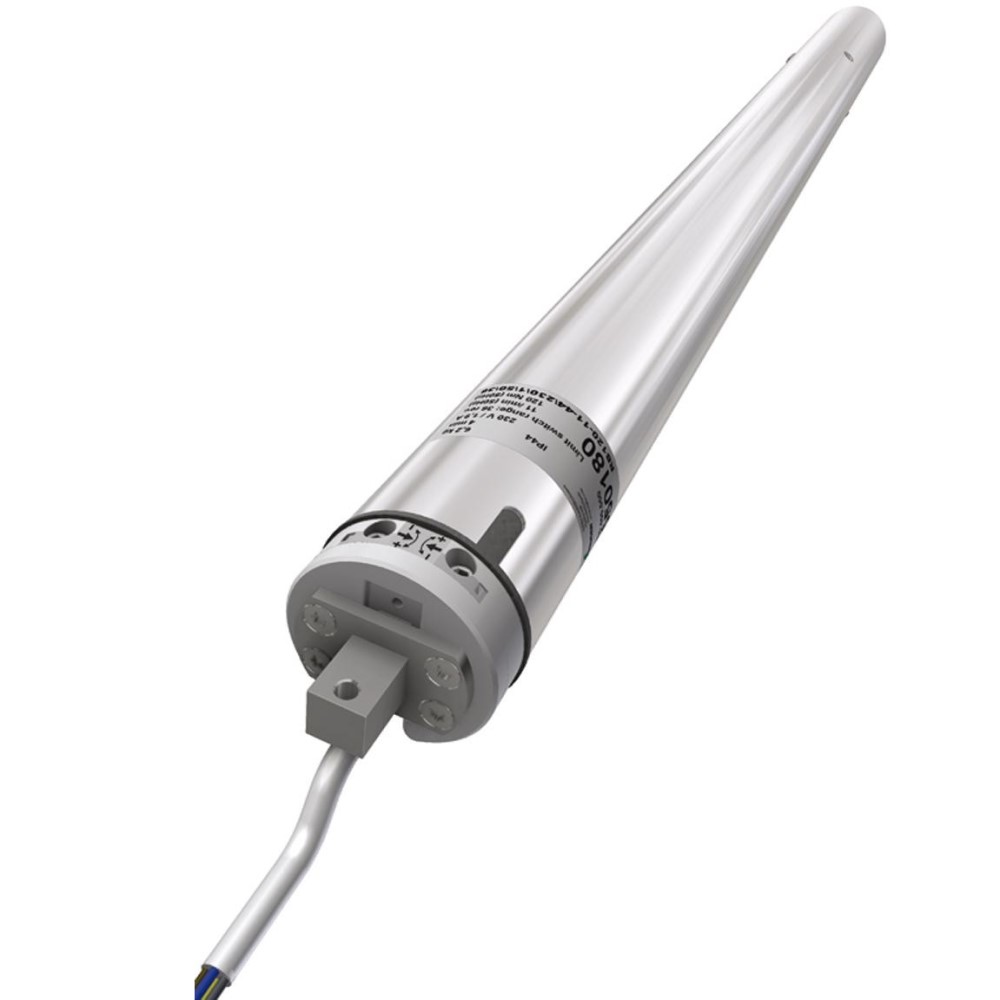

Tube motor Ridder RB120-11-44\230\1\50\36 - 230V, 120 Nm

• Application: For sidewall and dual roll-up screen systems in greenhouses
• Voltage: 230 V / 50 Hz (also available for 60 Hz)
• Torque: 120 Nm
• Speed: 11 rpm (50 Hz) / 13 rpm (60 Hz)
• Limit switches: Mechanical, adjustable (38 turns)
• Tube compatibility: For 63 mm roll-up tubes
• Protection class: IP44
• Ridder Article No.: 550180

The RB120-11-44 tube motor is a high-torque, maintenance-free drive unit for large greenhouse shading systems. It features a sealed housing, integrated brake, and a robust planetary gearbox for long-lasting performance.
