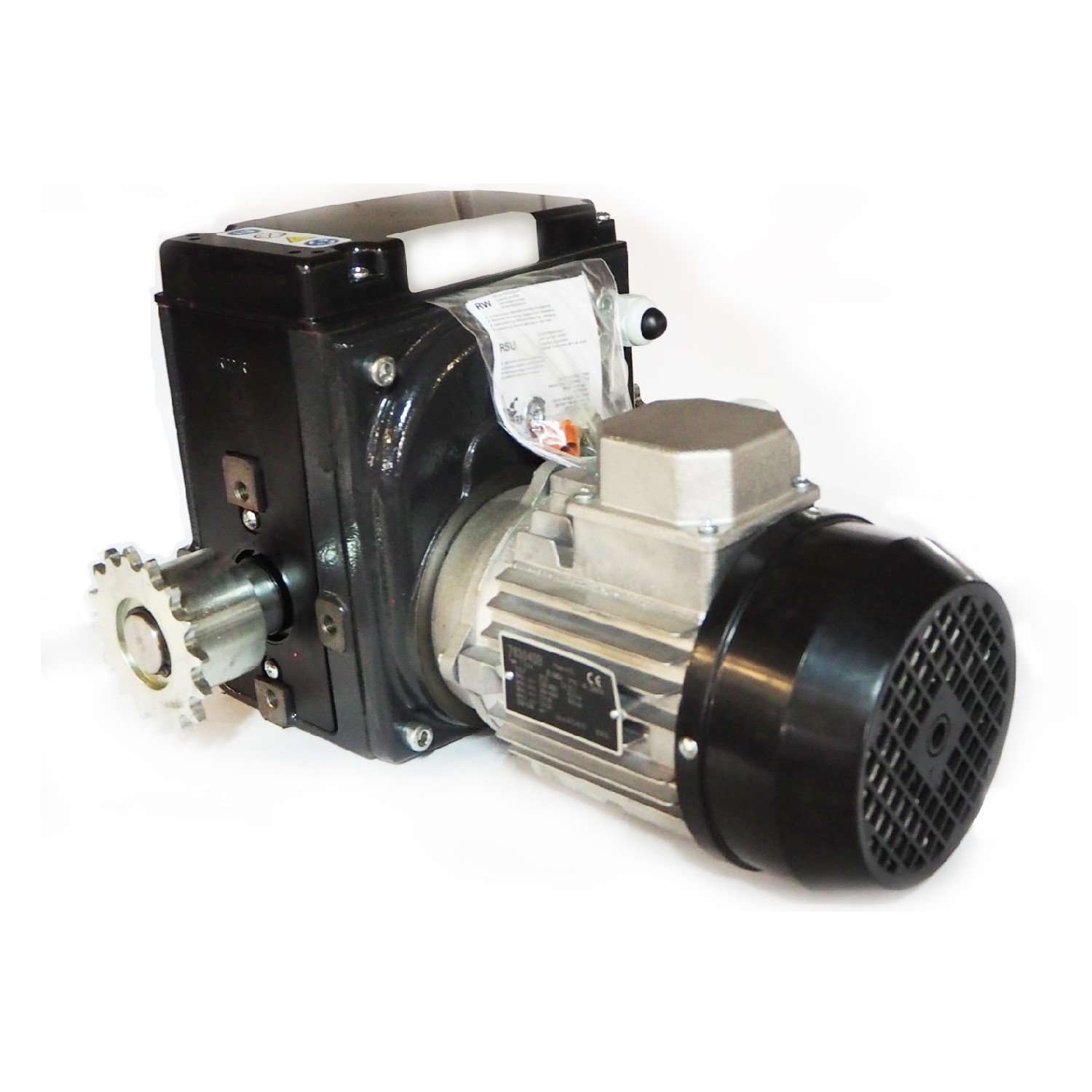

Motor gearbox RW 245 400-460Volt/3-Phase/3 rpm
Product information "Motor gearbox RW 245 400-460Volt/3-Phase/3 rpm"
- Application: Maintenance-free drive for ventilation, shading, and lifting systems in greenhouses and livestock buildings
- Voltage: 400–450 V, 3-phase
- Speed: 5 rpm
- Protection class: IP55 – dust and water resistant
- End switch: Patented linear limit switch system with high switching accuracy
- Temperature range: 0–60 °C
- Features: Quiet operation, self-locking worm gear, optional RPU PositioningUnit or potentiometer kit
- Ridder Article No.: 502320
The RW245-37 motor gearbox is a rugged, low-maintenance drive unit designed for greenhouse automation. Its precise limit switch system and quiet, self-locking transmission ensure reliable performance in demanding environments.
Customers who buyed this item also buyed:
Protection Cover - 2-parts for RW 200-600
Application: Weather protection for motors mounted outdoors Material: Durable plastic Compatibility: Fits Ridder drive series RW 200 to RW 600 2-Piece Motor Cover for RW 200–600 offers effective protection for Ridder drive units installed outdoors. It shields motors from rain, snow, and harsh weather conditions and is specifically designed for the RW 200 to RW 600 series. The cover is made of sturdy plastic and provides reliable long-term use for motors exposed to the elements.
0,00 €*
Chain bolted coupling for RW 240/400/600/800 tube 1''
Version: Tube Ø 1 "
Application: Connects the chain wheel of RW240–RW800 gear motors to the drive shaft Tube size: 1″ Material: Galvanized steel Mounting: Bolted design with pre-punched receptacle for easy installation Features: Duplex chain allows axial movement of the shaft for greater flexibility The Bolted chain coupling for RW240/400/600/800 – 1″ tube is a robust connector for high-torque Ridder gear motors. It ensures a flexible and secure connection to the drive shaft, compensating for misalignment and structural shifts in greenhouse systems.
0,00 €*
Chain bolt coupling for RW 240/400/600/800 tube 5/4" - bolted
Version: Tube Ø 5/4 "
Application: Connects the chain wheel of RW motors to the drive shaft Material: Galvanized steel Design: Bolted version with pre-punched receptacle for easy shaft insertion Chain type: Duplex chain for inline shaft movement Benefit: Enables flexible alignment and compensates for structural movement Ridder Article No.: 590014 The Chain Bolt Coupling for RW 240/400/600/800 – Tube Ø 5/4″ connects the gearbox chain wheel to the drive shaft and enhances system flexibility. The bolted design allows for faster, weld-free installation. The duplex chain ensures inline movement, reducing stress during dynamic operation and greenhouse structure shifts.
0,00 €*
Chain Coupling for RW/240/400/600/800 -
Version: Tube Ø 1 - 2 "
Application: Connects the chain wheel of Ridder RW240, RW400, RW600, or RW800 motors to the drive shaft Material: Galvanized steel Design: Welded to the shaft - duplex chain for inline movement Benefit: Stabilizes the drive system under dynamic loads and greenhouse movement Ridder Article No.: 590011 The Chain Coupling for RW240 / RW400 / RW600 / RW800 – Tube Ø 1″–2″ is a robust duplex chain coupling that ensures smooth torque transfer and compensates for misalignment or movement in large greenhouse structures. It is welded to the shaft and designed for high flexibility and durability.
0,00 €*

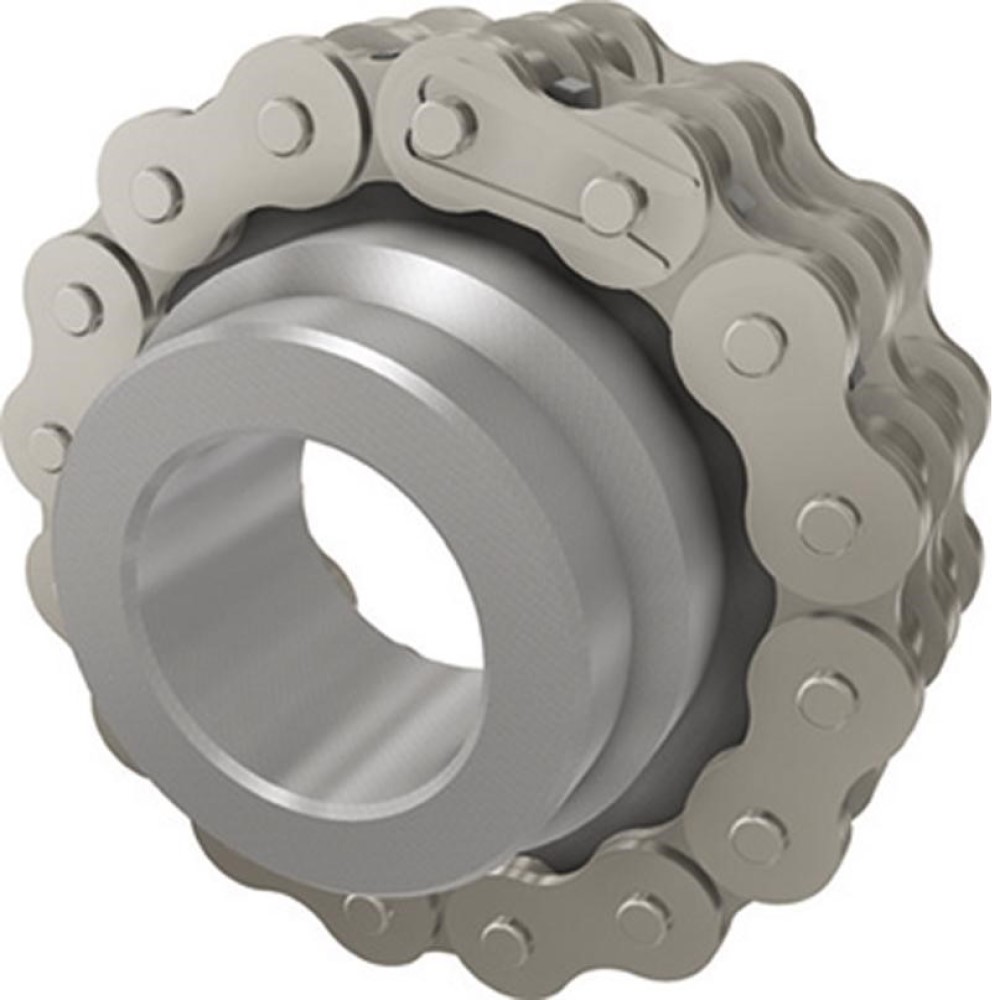

Chain coupling for RW 240/400/600/600/800 -
Version: Tube Ø 5/4 "
Application: Connects the chain wheel of Ridder RW240, RW400, RW600, or W600 motors to the drive shaft Material: Galvanized steel Design: Welded to the shaft - duplex chain for inline movement Benefit: Provides high flexibility under dynamic loads and structural movement Ridder Article No.: 590012 The Chain Coupling for RW240 / RW400 / RW600 / W600 – Tube Ø 5/4″ connects the gearbox chain wheel to the drive shaft and enhances system flexibility. The duplex chain allows for inline movement, reducing stress during dynamic operation and structural shifts in greenhouse installations.
0,00 €*
