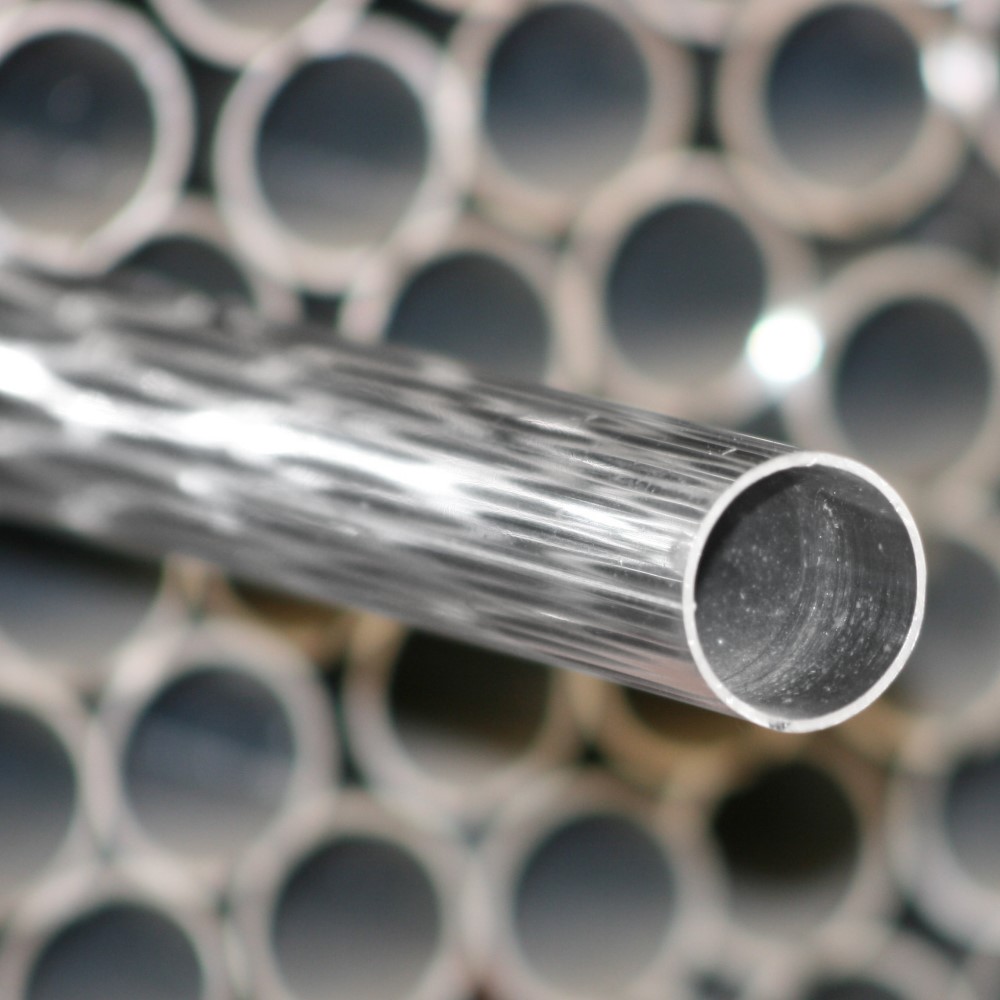

aluminum tubes 19 mm x 6,40 m
This lightweight aluminium tube is used in suspended and in lay-flat shading systems as a screen guiding tube. Thanks to its very light aluminium construction it is possible to realise light shading systems, which are specially interesting for greenhouses with a wide truss-spacing. In such greenhouses it is a good alternative to the commonly used 19 mm steel tubes. Material: Aluminium
Steel tube galv narrowed
This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel
Steel tube - 32/1,5, galvanized, swaged - 6500 mm
This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 32 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel
Steel tube galv. narrowed, 1'' / 2,5mm / L= 6,50 m
This steel tube is used as a drive shaft for ventilation systems and large shading systems in greenhouses.Due to its wall-thickness of 2,50 mm, it is resistant against torsion.The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt M8 x 50 with a nyloc nut M8 are neededDiameter: 1 Wall thickness: 2.5 mmLength: 6500 mmMaterial: Galvanised Steel
Steel tube, galvanized 1"
This steel tube is used as a drive shaft in shading and ventilation systems in large greenhouses. Due to its wall thickness of 3.25 mm, it is very resistant against torsion. The tube connector halves within our product range are used to connect the tubes. Diameter: 33.5 mm Wall thickness: 3,25 mm Length: 6050 mm Material: Steel, galvanized
Steel tube, galvanized swaged
This steel tube is particular stable. It is used as a push-pull-tube for shading- and ventilation systems in greenhouses. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Bolt and nut 27.32 for steel tubes are needed.Diameter: 27 mm Wall thickness: 1.5 mm Length: 6500 mm Material: Galvanized Steel
Steel tube, galvanized 2"
Application: Drive shaft for shading and older ventilation systems Diameter: 60.3 mm (2″) Wall thickness: 2.50 mm Length: 6.00 m Material: Galvanized steel Packaging: Bundle of 68 pieces The Steel tube Ø 60.3 mm / 2.50 mm – 6.00 m – 68 pcs/bundle is used as a drive shaft in greenhouse shading and older ventilation systems. It offers good torsional strength and corrosion resistance. Tubes can be connected using standard tube connector halves.

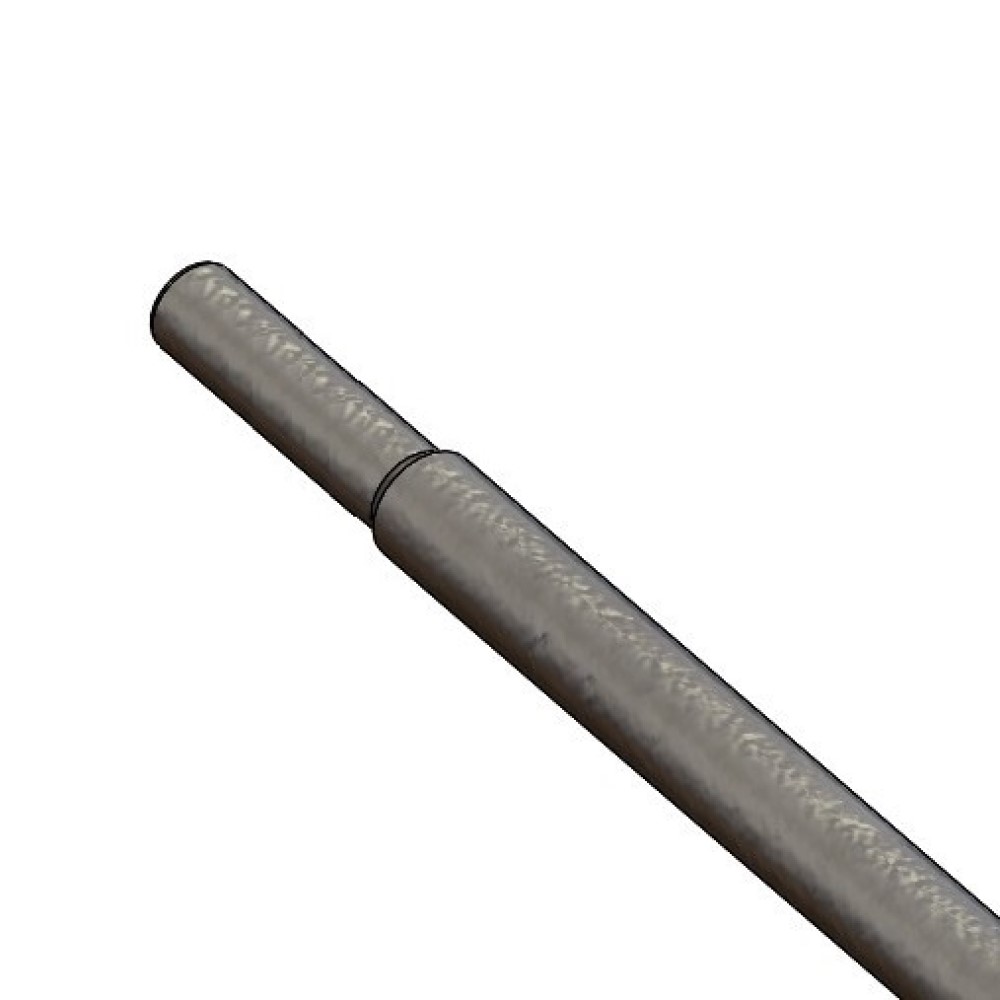

Steel tube, galvanized swaged
This steel tube is mainly used as a guide for fabrics in suspended and lay-flat shading systems in greenhouses. Besides it is used a in roll-up systems with drop down curtains. The tubes can be easily connected by inserting them into each other through their swaged ends and bolting them afterwards. Diameter: 19 mm Wall thickness: 0,8 mm Length: 6500 mm Material: Galvanized Steel

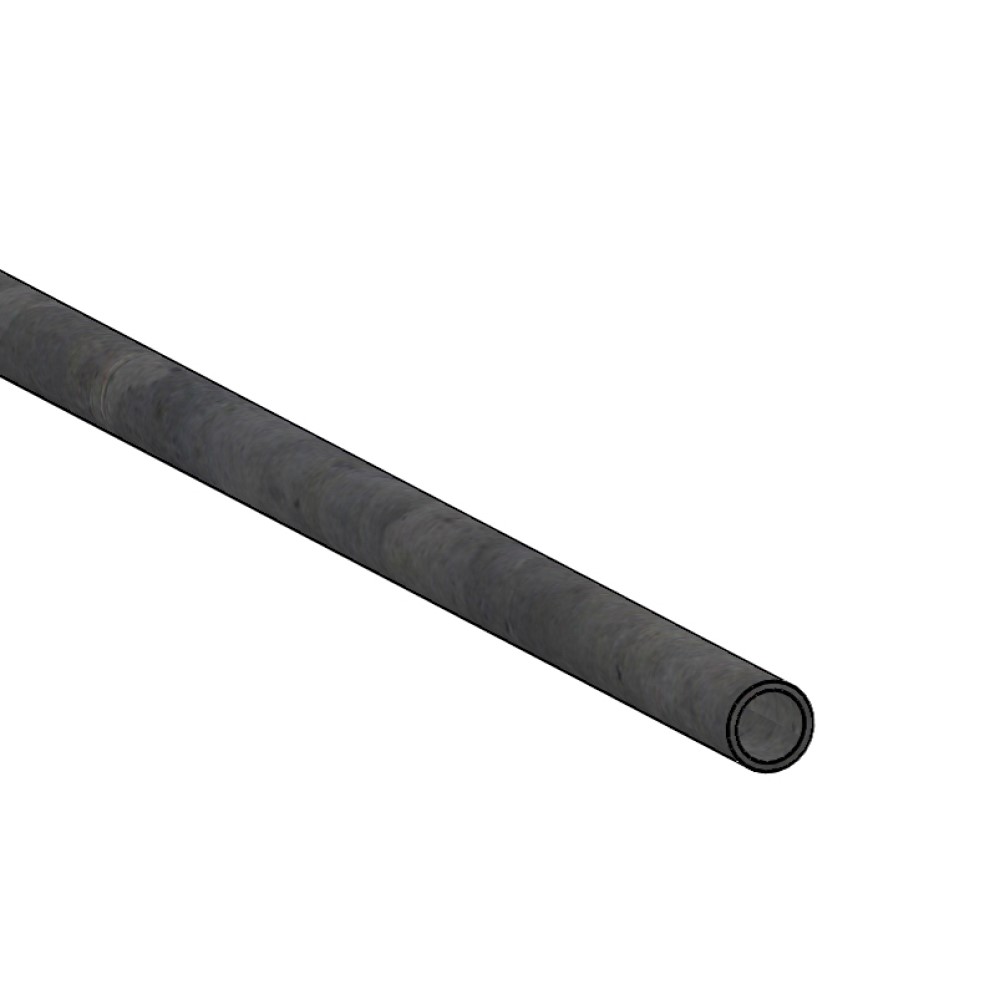

Steel tube galv. 2"
Application: Drive shaft for large shading and older ventilation systems Diameter: 60.3 mm (2″) Wall thickness: 3.65 mm Length: 6.00 m Material: Galvanized steel Packaging: Loose (individual pieces) The Steel tube Ø 60.3 mm / 3.65 mm – 6.00 m is designed for use as a drive shaft in large greenhouse shading systems and older ventilation setups. Its thick wall provides superior torsional strength, and it can be connected using tube connector halves.
