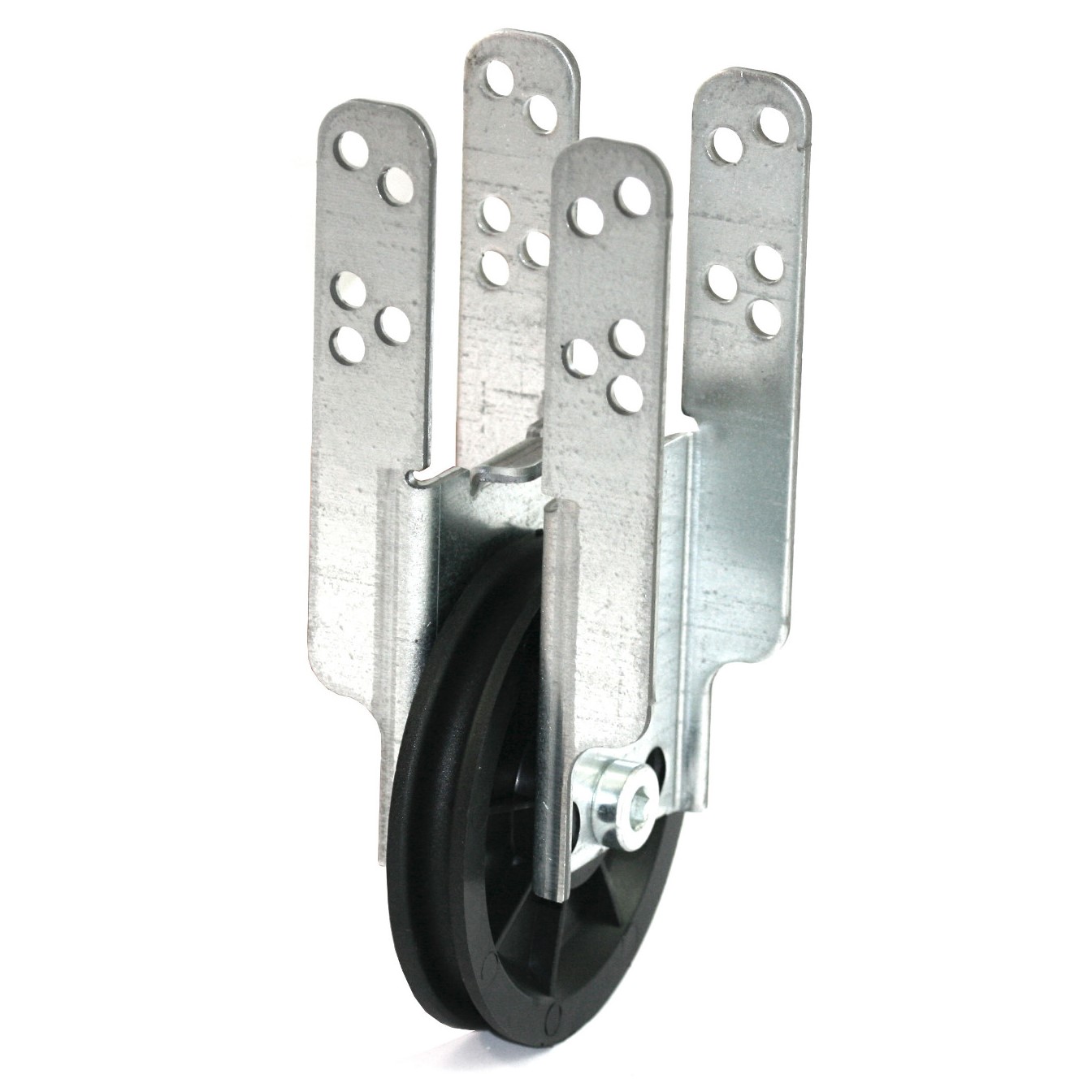

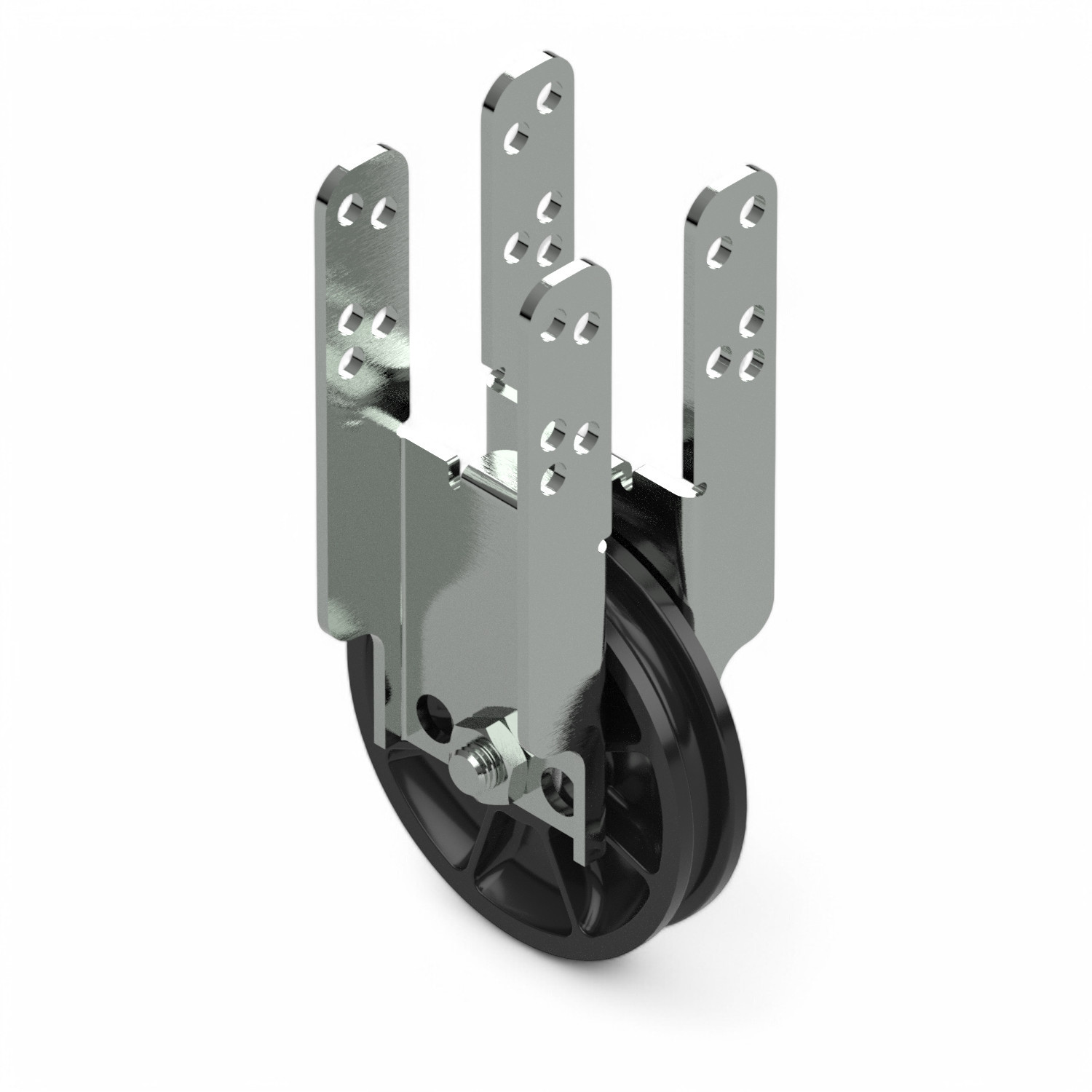

Cable pulley 90 H - with universal clamp 50 x 50

• Application area: Shading systems with wire rope drive
• Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel
• Diameter: 90 mm
• Installation: Screw-mounted to square pipes
• Compatibility: Suitable for square pipes 50 × 50, 50 × 55, 50 × 30, 50 × 25, 50 × 20
• Special feature: Axle position adjustable in three heights

The Pulley 90 H with universal bracket is a robust solution for shading systems with wire rope drive. It can be mounted on the rear side of square pipes and allows flexible axle positioning in three height levels.

The pulley is made of impact-resistant plastic, while the bracket is constructed from galvanized steel to ensure high stability and corrosion resistance. It is compatible with various square pipe sizes and suitable for wire ropes up to 7 mm in diameter.

The 90 mm UF pulley is pre-mounted for both bottom and front installation, whereas the 90 mm H pulley is specifically designed for rear mounting. This flexibility enables versatile use in different shading system configurations.
