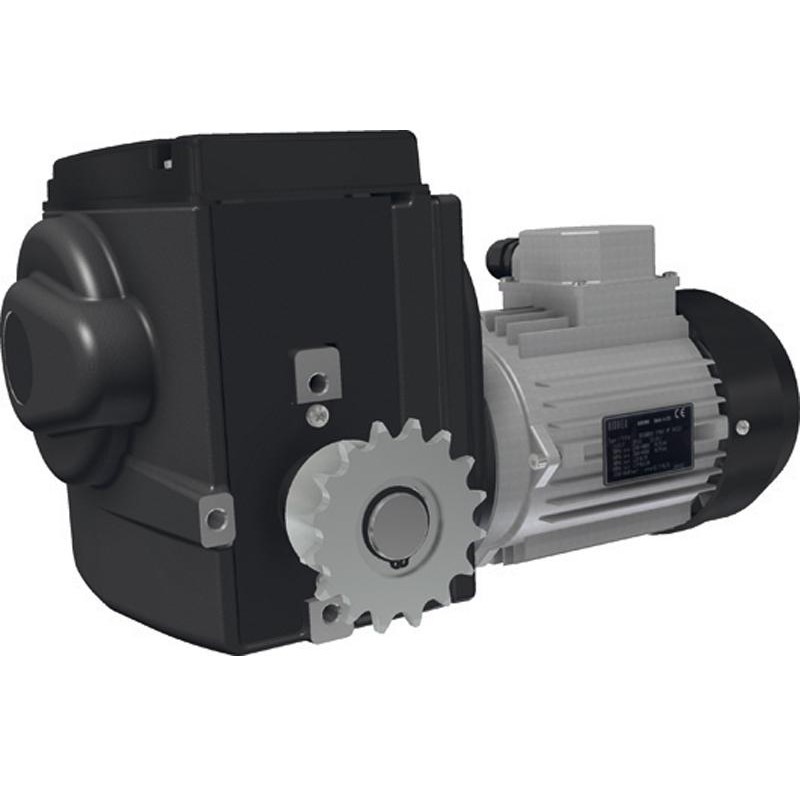

Motor gearbox RW402-25/400-450/3/86 - Ridder art.-no. 533400
Save as PDF
Product number: 32535385
This item cannot be ordered directly because it is not in stock or the shipping costs have to be determined individually. However, we will be happy to provide you with an offer for this.
Product information "Motor gearbox RW402-25/400-450/3/86 - Ridder art.-no. 533400"
- Application: High-speed drive for shading and ventilation systems in greenhouses
- Voltage: 400–450?V, 3-phase
- Speed: 25 rpm
- Protection class: IP55 – sealed housing with linear limit switch system
- End switch: Built-in linear system with operating and safety switches (max. 86 turns)
- Features: Pre-installed chain wheel, self-locking worm gear, quiet operation
- Optional: RPU PositioningUnit or potentiometer feedback kit
- Ridder Article No.: 533400
The RW402-25 motor gearbox is designed for fast and precise movement in greenhouse automation. It comes with a pre-installed chain wheel and supports flexible integration with Ridder coupling systems.
