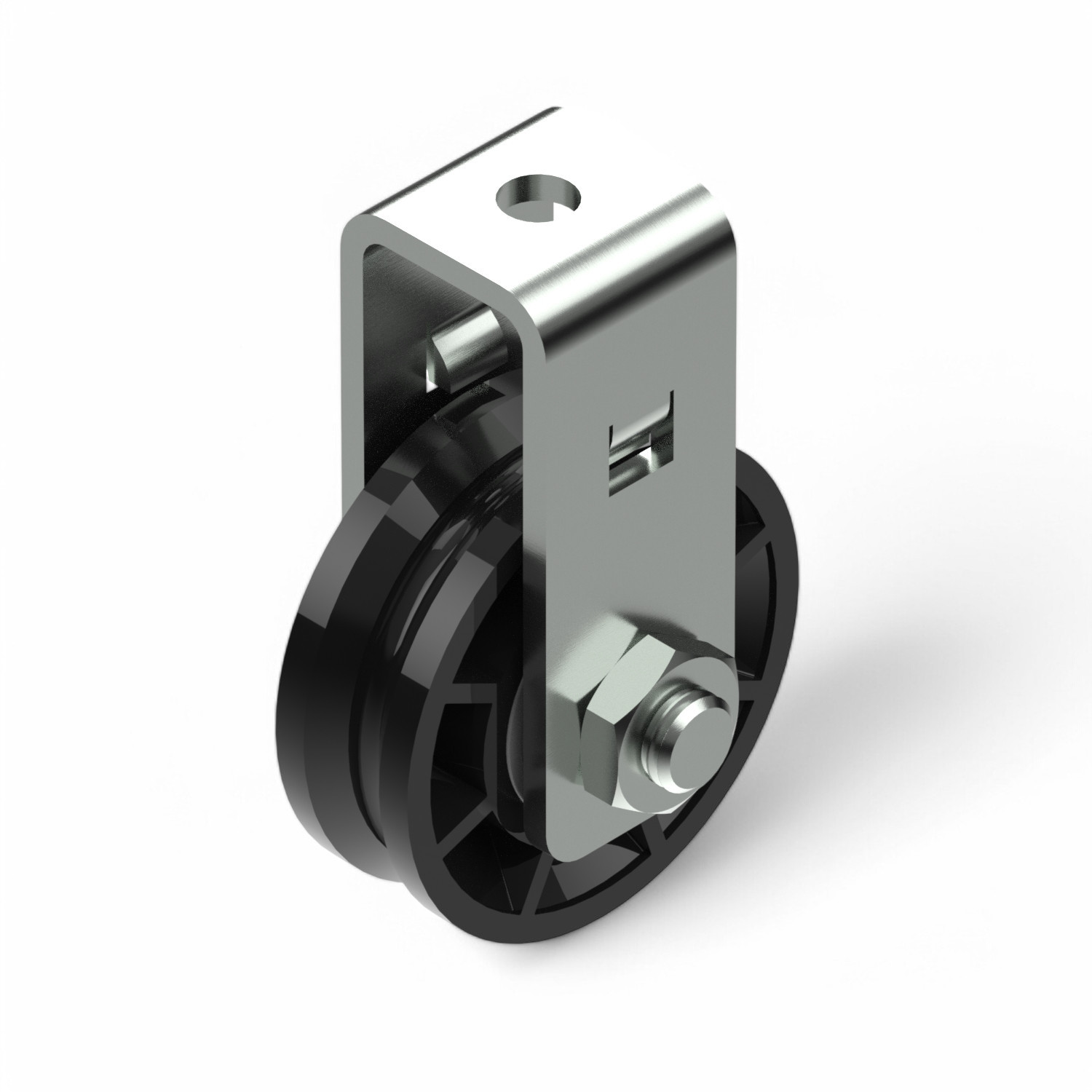

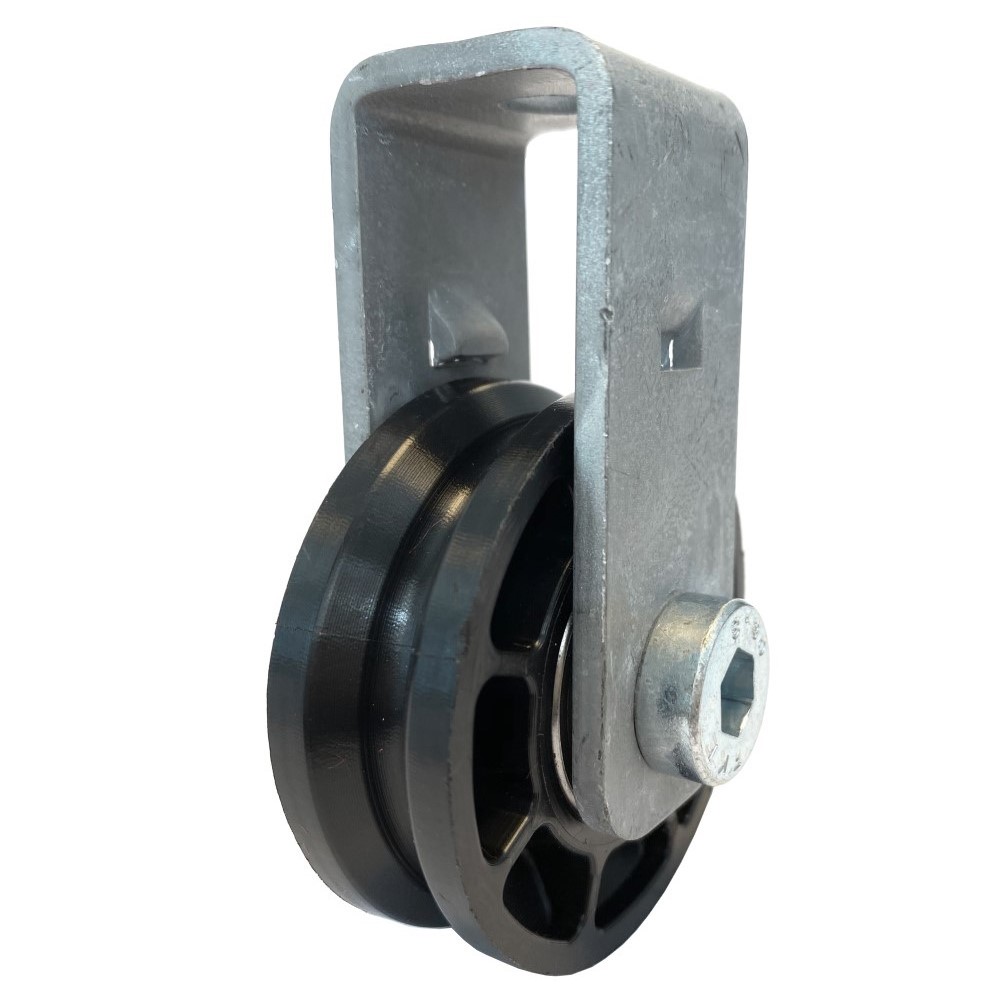

Cable Pulley Ø 52 mm / Ø 4 mm - with steel bracket

0,00 €*

Available, delivery time 1-3 days




PU
Version:
Save as PDF
Product number: 04400098
Product information "Cable Pulley Ø 52 mm / Ø 4 mm - with steel bracket "
Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.

The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access.


  • Impact resistant pulley
  • Galvanised steel bracket
  • Two ball bearings
  • Load capacity: up to 180 kg
  • Made in Germany

  • Outer diameter: 52 mm
  • Total height: 77,75 mm
  • Total width: 41 mm
  • Rope diameter: up to Ø 4 mm
  • Fastening with M8 srew / bolt
