Motor gearbox Ridder RW 241-09/400/3/86//IP55
Save as PDF
Product number: 32035227
This item cannot be ordered directly because it is not in stock or the shipping costs have to be determined individually. However, we will be happy to provide you with an offer for this.
Product information "Motor gearbox Ridder RW 241-09/400/3/86//IP55"
- Application: Drive unit for ventilation, screen, and lifting systems in greenhouses and barns
- Voltage: 400 V, 3~, 50 Hz
- Switching range: Integrated linear limit switch system with a switching range of 86 turns
- Protection class: IP55 – dust and water jet resistant
- Limit switch: Patented linear limit switch system with high switching precision
- Features:
- Self-locking worm gear for secure shaft position at standstill
- Maintenance-free and compact design
- Suitable for ambient temperatures from 0–60 °C
- Optional: RPU PositioningUnit or potentiometer feedback
- Ridder Article No.: 537200
The RW 241-09 / 400 V is a compact, maintenance-free gear motor for greenhouse ventilation, shading, and lifting systems. Its IP55 protection and self-locking worm gear ensure safe operation even in demanding environments. The integrated linear limit switch system allows precise control over up to 86 shaft revolutions.
Customers who viewed this item also viewed:

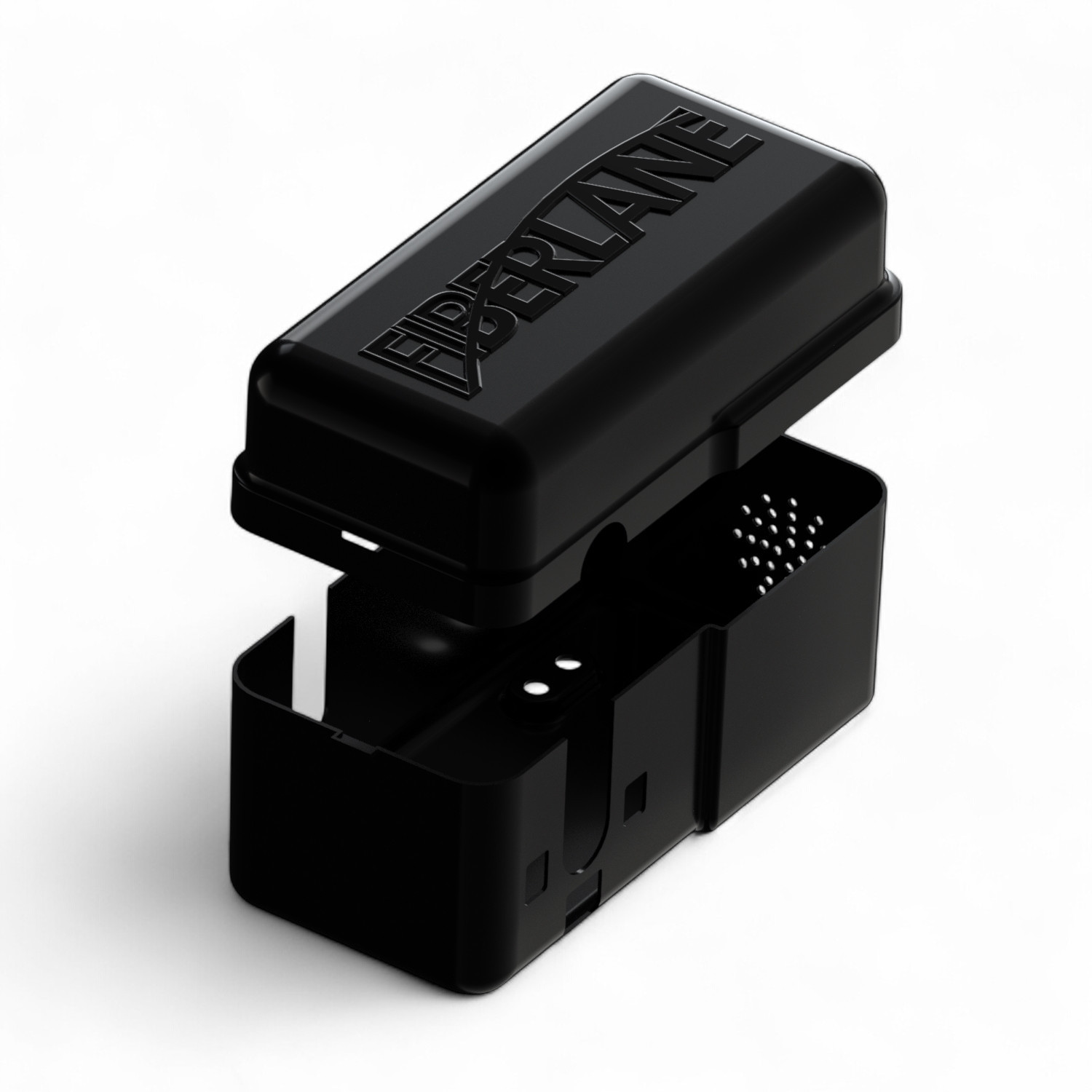

Protection Cover - 2-parts for RW 200-600
Application: Weather protection for motors mounted outdoors Material: Durable plastic Compatibility: Fits Ridder drive series RW 200 to RW 600 2-Piece Motor Cover for RW 200–600 offers effective protection for Ridder drive units installed outdoors. It shields motors from rain, snow, and harsh weather conditions and is specifically designed for the RW 200 to RW 600 series. The cover is made of sturdy plastic and provides reliable long-term use for motors exposed to the elements.
0,00 €*

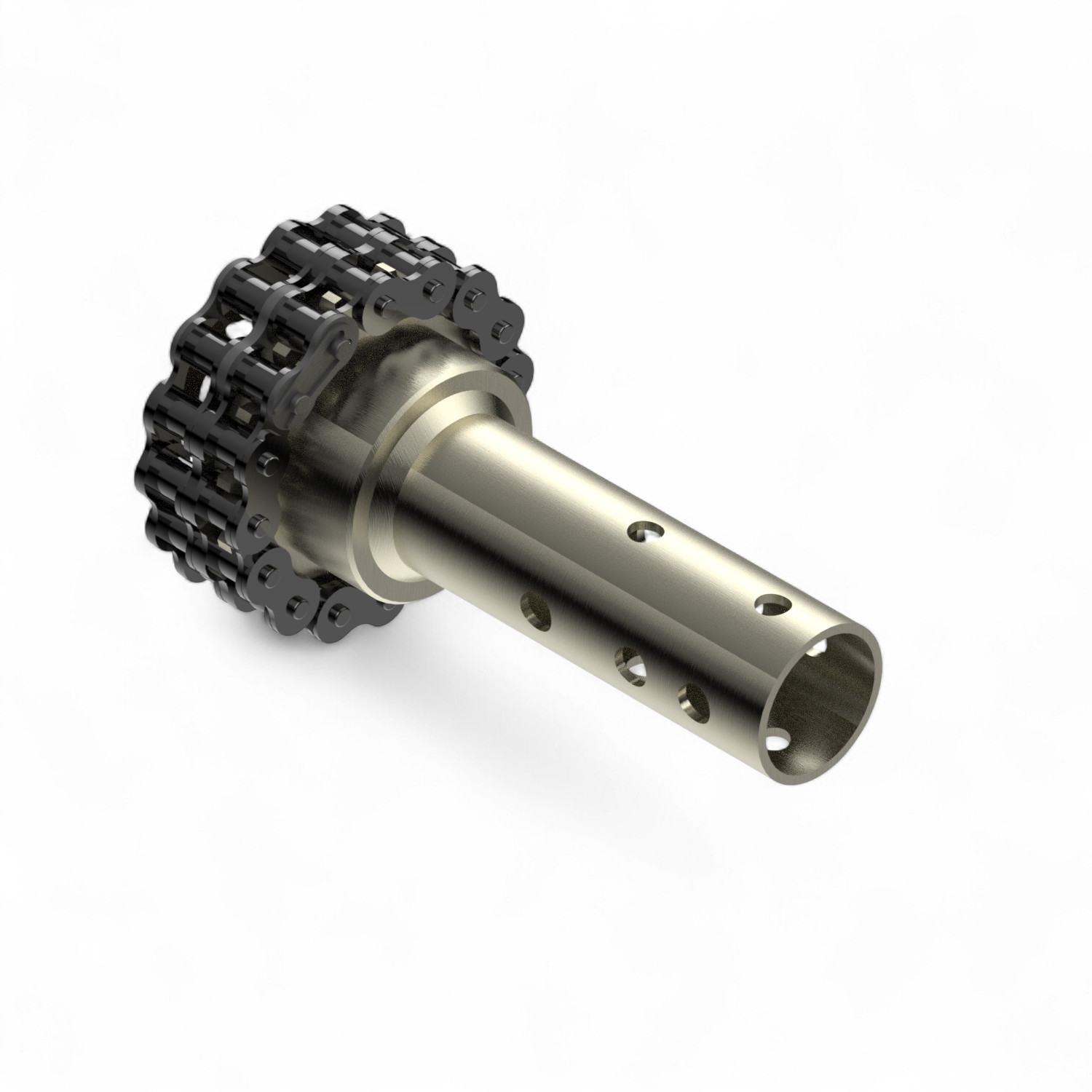

Chain bolted coupling for RW 240/400/600/800 tube 1''
Version: Tube Ø 1 "
Application: Connects the chain wheel of RW240–RW800 gear motors to the drive shaft Tube size: 1″ Material: Galvanized steel Mounting: Bolted design with pre-punched receptacle for easy installation Features: Duplex chain allows axial movement of the shaft for greater flexibility The Bolted chain coupling for RW240/400/600/800 – 1″ tube is a robust connector for high-torque Ridder gear motors. It ensures a flexible and secure connection to the drive shaft, compensating for misalignment and structural shifts in greenhouse systems.
0,00 €*

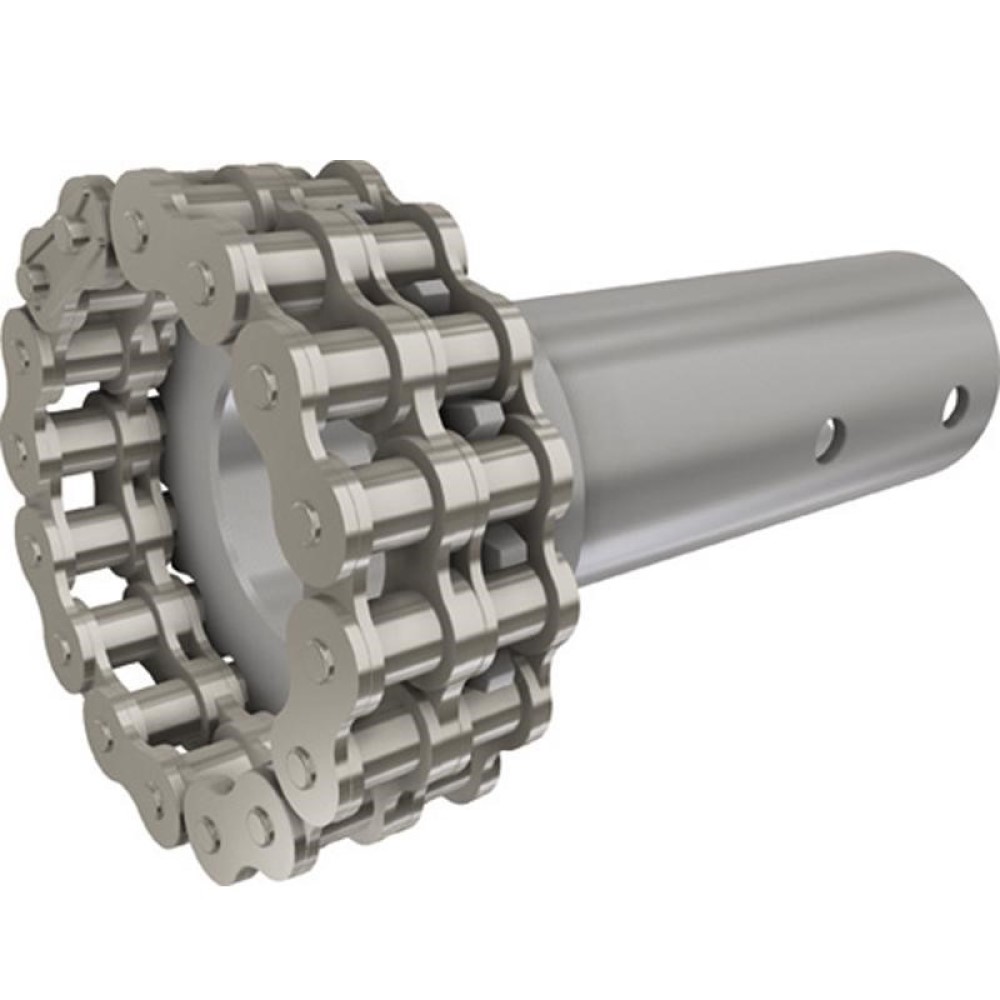

Chain bolt coupling for RW 240/400/600/800 tube 5/4" - bolted
Version: Tube Ø 5/4 "
Application: Connects the chain wheel of RW motors to the drive shaft Material: Galvanized steel Design: Bolted version with pre-punched receptacle for easy shaft insertion Chain type: Duplex chain for inline shaft movement Benefit: Enables flexible alignment and compensates for structural movement Ridder Article No.: 590014 The Chain Bolt Coupling for RW 240/400/600/800 – Tube Ø 5/4″ connects the gearbox chain wheel to the drive shaft and enhances system flexibility. The bolted design allows for faster, weld-free installation. The duplex chain ensures inline movement, reducing stress during dynamic operation and greenhouse structure shifts.
0,00 €*

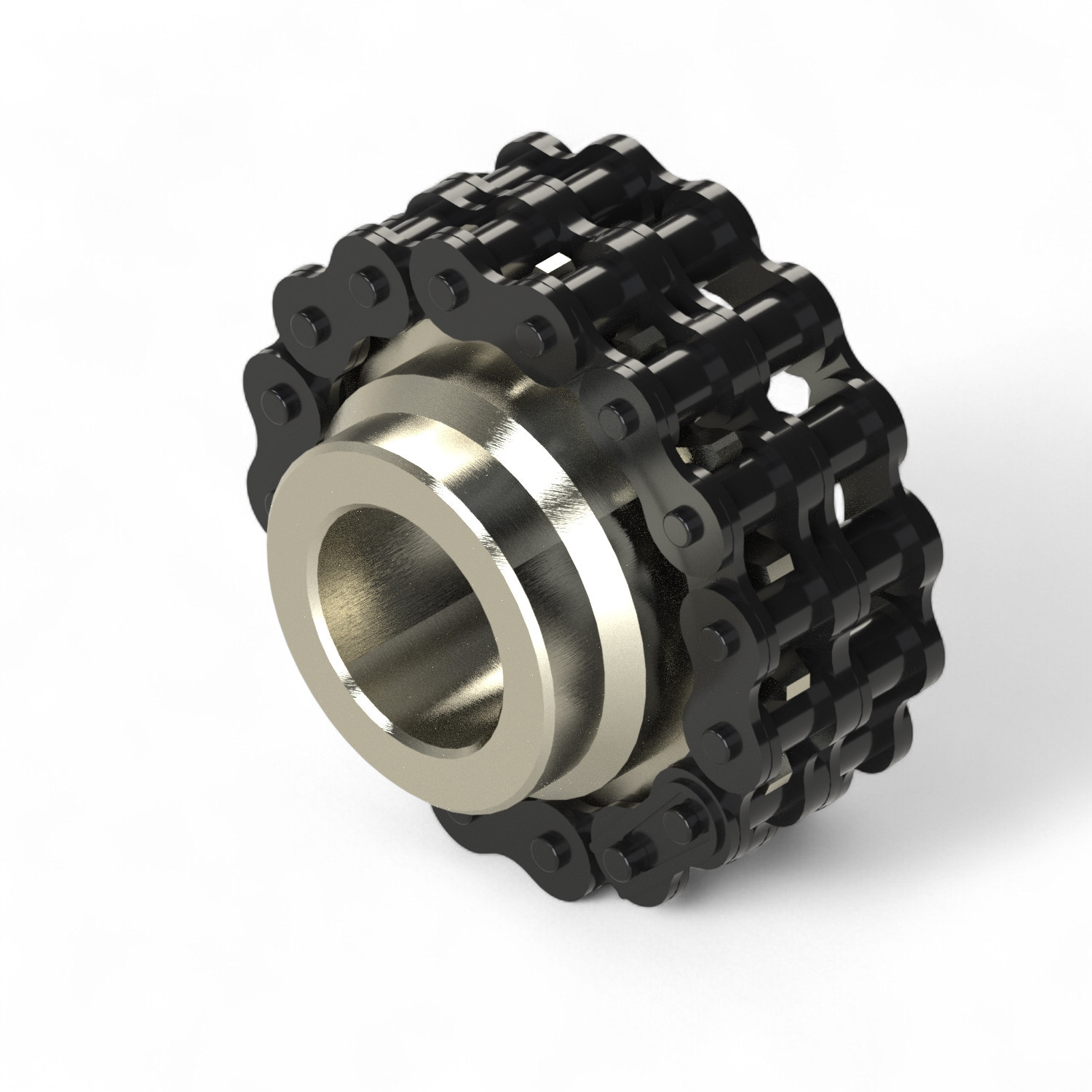

Chain Coupling for RW/240/400/600/800 -
